Hager Sollysta 20AX Grid Switch provides lighting control from two locations and is fully rated to 20A for fluorescent and LED loads. For faster, safer installation, all terminals face one direction and feature screwdriver lead-ins with captive screws. The switch push-fits into the grid frame and aligns neatly with the chosen Sollysta front plate for a secure, seamless finish.
EAN-Nr.
5015652259992
Packaging
10 Pieces
20AX 2 Way Single Pole Grid Switch, White WMGS12
Price
£15.20
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Electric current
-
Switching current20 A
-
Rated current IN20 A
Installation, mounting
-
Mounting onFlush mounting
Voltage
-
Rated voltage250 V
Materials
-
ColourWhite
-
Surface finishGlossy
-
MaterialUrea formaldehyde
-
TreatmentUntreated
Identification
-
Assembly arrangementBasic element with central cover plate
Connectivity
-
Mounting typeSnap-on mounting
Controls and indicators
-
Number of buttons1
Dimensions
-
Built-in depth13.10 mm
Texts
-
LightingWithout lighting (cannot be illuminated)
-
Push buttonNo
-
ImprintWith clear terminal markings
Architecture
-
Control/operation elementSingle rocker
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

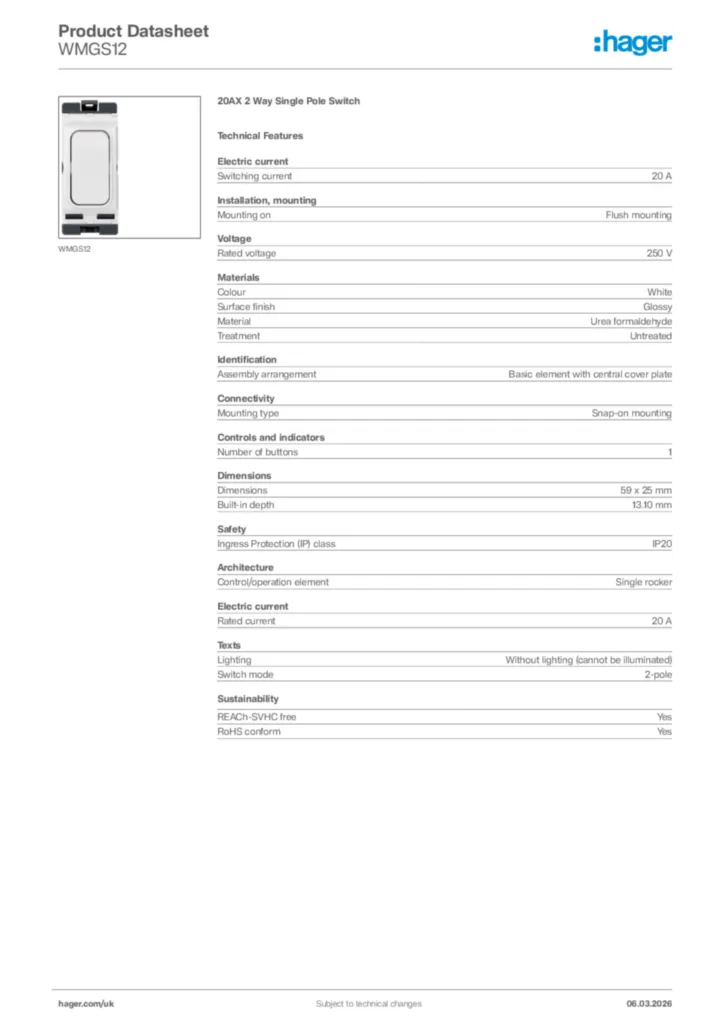

Hager Product data sheet WMGS12
20AX 2 Way Single Pole Switch
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-23
PDF324,63 kB
Declaration
Declaration of conformity International 2023-06-01
PDF667,03 kB
Declaration
Declaration of conformity International 2022-08-23
PDF237,40 kB
Declaration
Declaration of conformity International 2023-06-01
PDF604,26 kB
Declaration of conformity en-GB 2025-11-20
PDF430,52 kB
Declaration of conformity en-GB 2025-11-20
PDF439,48 kB
Declaration of conformity en-GB 2026-07-22
PDF421,76 kB
