    • Home
    • Catalogue
    • Commer­cial & Resid­en­tial Distri­bu­tion Boards
    • Resid­en­tial Distri­bu­tion Boards
    • Consumer units
    • VSR916CU
    EAN-Nr.
    5015652602569
    Packaging
    1 piece
    • Consumer units

    Design 50,16Way,High Integrity,100A Switch,2*100A 30mA RCCB VSR916CU

    Price
    £442.69
    / piece *
    £442.69
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Design 50,16Way,High Integrity,100A Switch,2*100A 30mA RCCB

    VSR916CU

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Archi­tec­ture
    • Number of poles
      2
    Func­tions
    • Over­voltage protec­tion
      Yes
    Capa­city
    • Number of modules
      16
    Elec­tric current
    • Rated current
      100 A
    Dimen­sions
    • Depth
      105 mm
    • Height
      284 mm
    • Width
      539 mm
    • Thick­ness of side­wall
      1 mm
    Cover, door
    • Inter­lock­able
      No
    • Door/­cover is trans­parent
      No
    Mater­ials
    • RAL code
      9010
    • Colour
      Pure white
    • Material
      Steel
    Connec­tion
    • Number of access­ible phases
      1
    Equip­ment
    • Number of rows
      1
    • Number of rails
      1
    • Exten­sion possible
      No
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP2XC

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    Hager REACH declaration VSR916CU
    PDF
    Hager RoHS report VSR916CU
    PDF

    Downloads

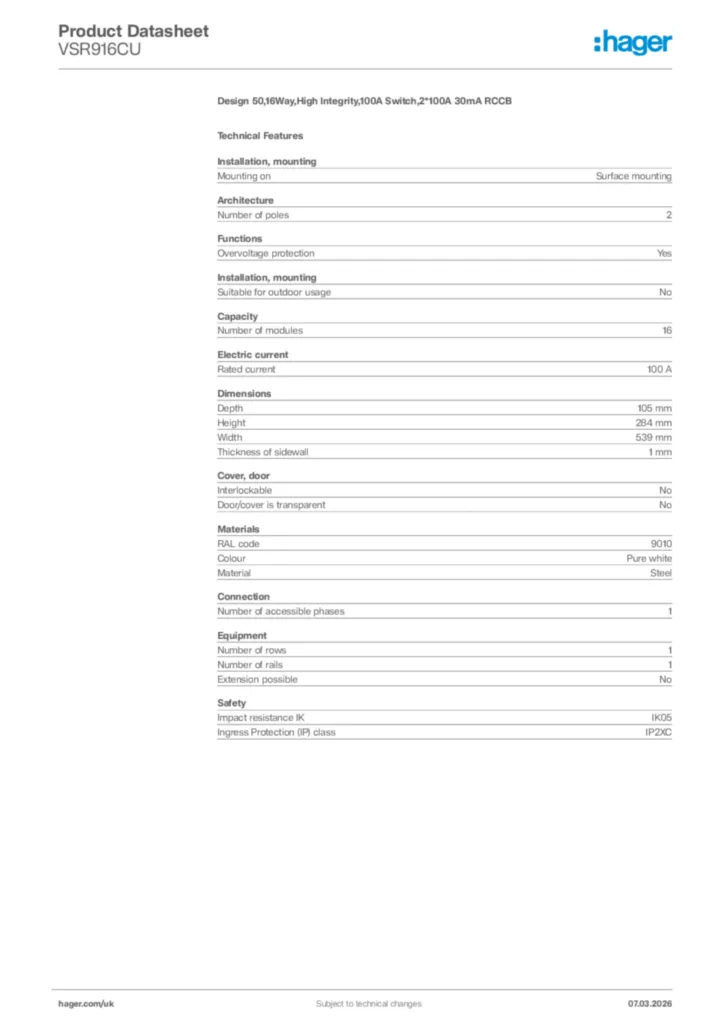

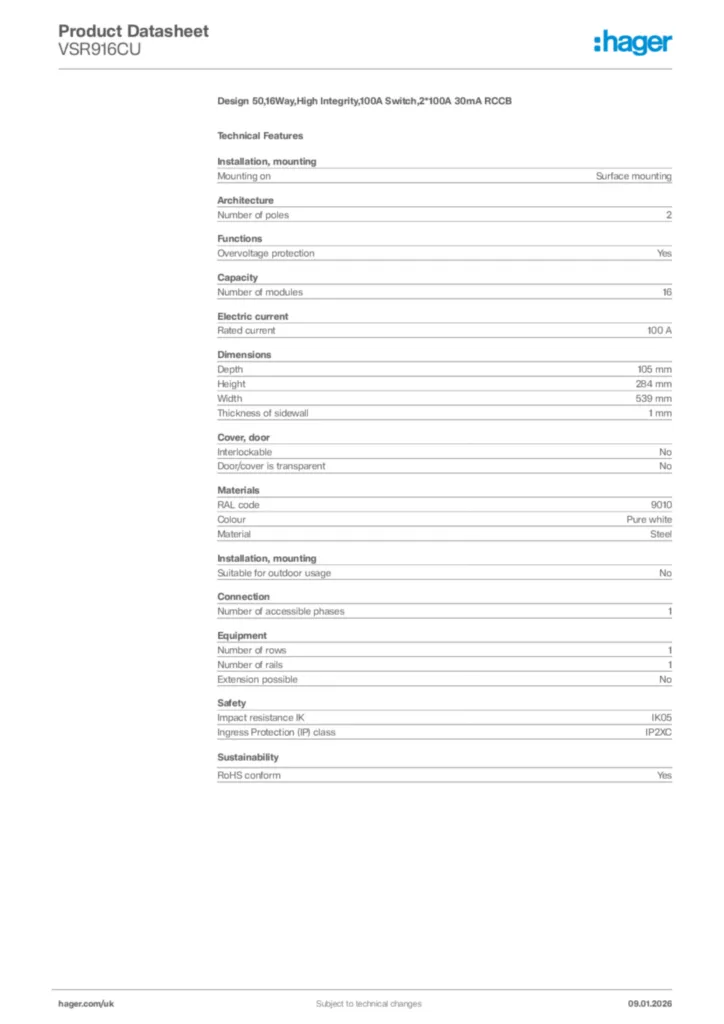

    • Product datasheet

      Image Hager Product data sheet VSR916CU | Hager

      Hager Product data sheet VSR916CU

      Design 50,16Way,High Integrity,100A Switch,2*100A 30mA RCCB

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2022-12-06 | Hager

      Instruction manual en-GB 2022-12-06

      PDF
      12,53 MB

    • Product attachment

      Image Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units | Hager

      Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units

      PDF
      3,38 MB

    • BIM Revit objects

      Image Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,04 MB
      Image Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,04 MB
      Image Range SM Design 50-Configurable -Revit Family 2020 hosted-V2021 | Hager

      Range SM Design 50-Configurable -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,04 MB
      Image Range SM Design 50-Configurable -Revit Family 2020 no hosted-V2021 | Hager

      Range SM Design 50-Configurable -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,04 MB

    • Safety data sheet

      Image AFDD Consumer Unit Guidance Notes | Hager

      AFDD Consumer Unit Guidance Notes

      Safety data sheet en-GB 2022-11-22

      PDF
      3,45 MB

    • Declaration of conformity

      Image CE_22.3494.10.22_universZ_U84... | Hager

      CE_22.3494.10.22_universZ_U84...

      Declaration of conformity International 2022-12-16

      PDF
      390,47 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-12-16

      PDF
      299,57 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-07-12

      PDF
      120,45 kB
