    • VML016
    EAN-Nr.
    3250610840030
    Packaging
    1 piece
    • Consumer units

    Enclosure,Design10,16M,with DIN rail VML016

    Price
    £152.65
    / piece *
    £152.65
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosure,Design10,16M,with DIN rail

    VML016

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Gland plate for enclosure 1 products available
    • Lock system 1 products available
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy 1 products available

    Complete your system

    • Gland plate for enclosure
    • Lock system
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • VM02CE

      Cable entry plate, Design Range, insulated, 5 pieces
      £18.92  / piece*
    • VMHBL

      HSE Padlock Bracket, Design Range
      £27.87  / piece*
    • VMGROM

      Grommet, Design Range, 10 open hole, 38mm for VM-VML-VMLF
      £13.16  / piece*

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Capa­city
    • Number of modules
      16
    Elec­tric current
    • Rated current
      100 A
    Dimen­sions
    • Depth
      98.20 mm
    • Height
      245 mm
    • Width
      368.40 mm
    • Number of width units
      16
    Cover, door
    • Door/­cover is trans­parent
      No
    Mater­ials
    • RAL code
      9010
    • Colour
      Pure white
    • Material
      Steel
    Equip­ment
    • Number of rows
      1
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP2XC
    • Protec­tion class
      Isol­a­tion class I

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    JK1 32 Module DIN Rail Box Glazed
    PDF
    5,81 MB
    REACH declaration VML016
    PDF
    Hager RoHS report VML016
    PDF

    Downloads

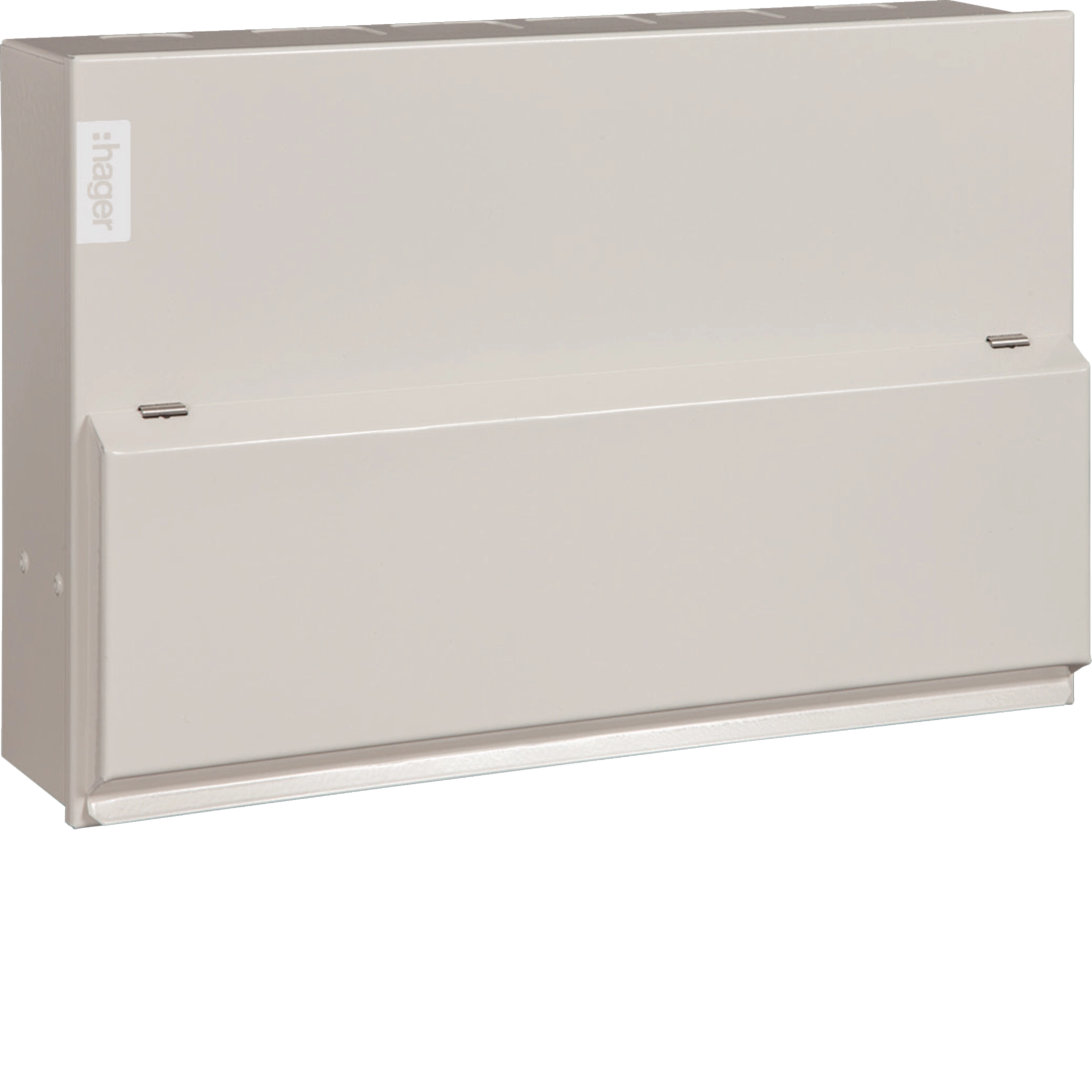

    • Product image

      Image VML016 | Hager

      Product Image VML016

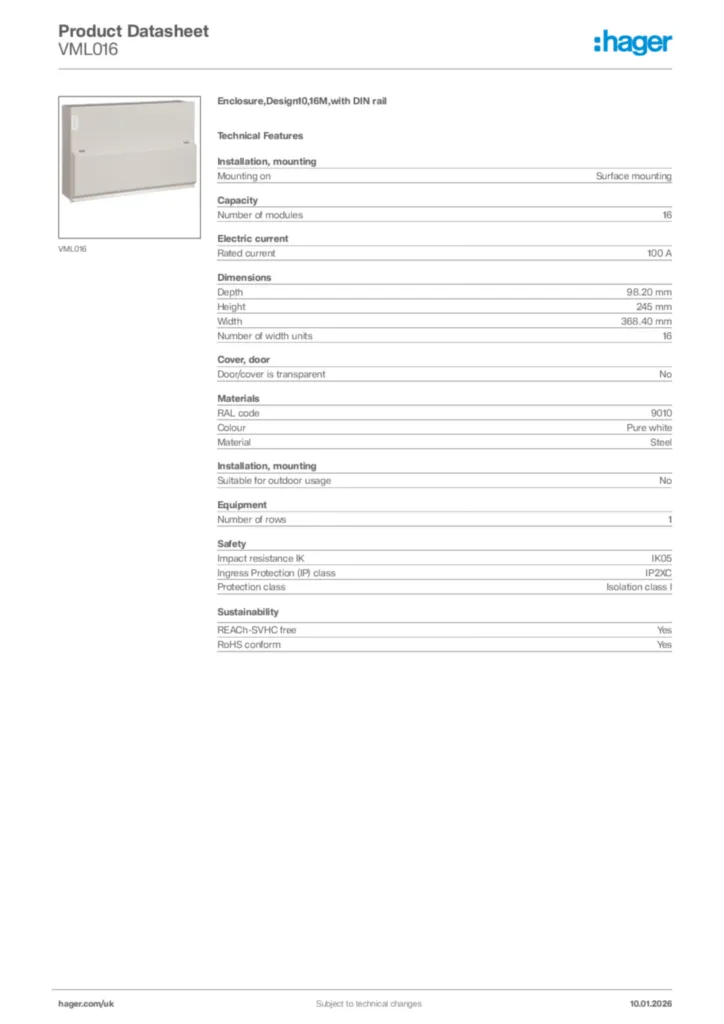

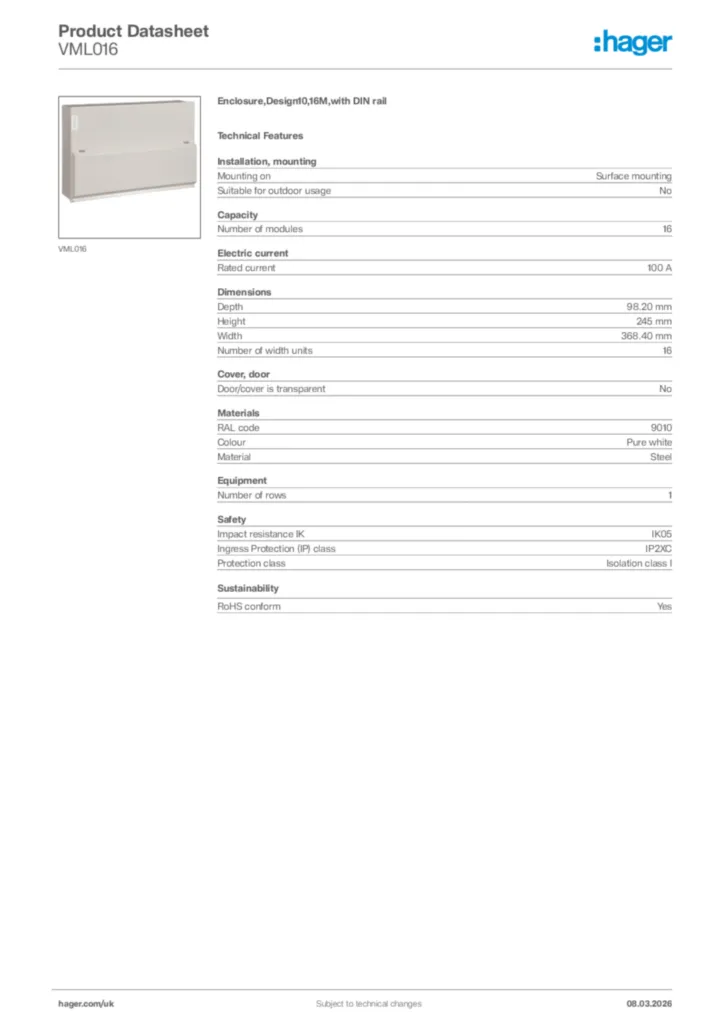

    • Product datasheet

      Image Hager Product data sheet VML016 | Hager

      Hager Product data sheet VML016

      Enclosure,Design10,16M,with DIN rail

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2022-12-06 | Hager

      Instruction manual en-GB 2022-12-06

      PDF
      10,23 MB

    • Installation manual

      Image UK_HAGER_INS_IPRATINGS.pdf | Hager

      UK_HAGER_INS_IPRATINGS.pdf

      IP Rating Guidance

      PDF
      356,09 kB

    • Product attachment

      Image Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units | Hager

      Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units

      PDF
      3,38 MB

    • BIM Revit objects

      Image Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,16 MB
      Image Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,15 MB
      Image Range SM Design 10 SwitchDisconnector Incomer -Revit Family 2020 hosted-V2021 | Hager

      Range SM Design 10 SwitchDisconnector Incomer -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,15 MB
      Image Range SM Design 10 SwitchDisconnector Incomer -Revit Family 2020 no hosted-V2021 | Hager

      Range SM Design 10 SwitchDisconnector Incomer -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,14 MB

    • Safety data sheet

      Image AFDD Consumer Unit Guidance Notes | Hager

      AFDD Consumer Unit Guidance Notes

      Safety data sheet en-GB 2022-11-22

      PDF
      3,45 MB

    • Product data sheet

      Image UK_HAGER_TDS_DINENCLOSURES.pdf | Hager

      UK_HAGER_TDS_DINENCLOSURES.pdf

      Technical data sheet including DIN Rail enclosure dimensions.

      PDF
      266,44 kB
      Image UK_HAGER_TDS_TORQUESETTING.pdf | Hager

      UK_HAGER_TDS_TORQUESETTING.pdf

      Technical data sheets for torque settings

      PDF
      105,95 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-02-28

      PDF
      192,00 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-02-28

      PDF
      377,30 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-26

      PDF
      403,64 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-25

      PDF
      394,06 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      381,49 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      375,42 kB
