    • VME10910SPD
    EAN-Nr.
    3250610144534
    Packaging
    1 piece

    9+10 Way 100A Switch Disconnector Incomer + SM Type II SPD 2 Row VME10910SPD

    Price
    £473.05
    / piece *
    £473.05
    / piece *
    Available soon
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    9+10 Way 100A Switch Disconnector Incomer + SM Type II SPD 2 Row

    VME10910SPD

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 1 products available
    • Gland plate for enclosure 2 products available
    • Lock system 2 products available

    Complete your system

    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Gland plate for enclosure
    • Lock system
    • JK01B

      Single Pole Busbar Blank
      £1.94  / piece*
    • VM01CE

      Cable entry plate, Design30, metal, consumer unit
      £12.54  / piece*
    • VM02CE

      Cable entry plate, Design Range, insulated, 5 pieces
      £18.92  / piece*
    • VMHBL

      HSE Padlock Bracket, Design Range
      £27.87  / piece*
    • VMLOCK

      Consumer unit, Design Range, VM, door locking kit
      £21.53  / piece*

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Archi­tec­ture
    • Number of poles
      2
    Func­tions
    • Has protec­tion main switch
      Yes
    • Over­voltage protec­tion
      Yes
    Config­ur­a­tion
    • Number of arc fault detec­tion devices AFDD
      0
    Capa­city
    • Number of modules
      19
    Elec­tric current
    • Rated current
      110 A
    Weight
    • Weight
      6.1 kg
    Dimen­sions
    • Depth
      102.5 mm
    • Height
      480 mm
    • Width
      293 mm
    Cover, door
    • Inter­lock­able
      No
    • Door/­cover is trans­parent
      No
    Mater­ials
    • RAL code
      9010
    • Colour
      White
    • Material
      Steel
    Connec­tion
    • Number of conduit inlets
      0
    • Number of access­ible phases
      1
    Scope of delivery
    • Number of RCCB in enclosure
      0
    Equip­ment
    • Number of rows
      2
    • Number of rails
      2
    • Exten­sion possible
      No
    • With bell trans­former
      No
    • With socket outlet
      No
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP4X
    • Number of earth leakage switches 30 mA
      0
    • Number of earth leakage switches 300 mA
      0
    Compat­ib­ility
    • Cooker group suit­able as power current group
      Yes

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    REACH declaration VME10910SPD
    PDF
    RoHS report VME10910SPD
    PDF

    Downloads

    • Product image

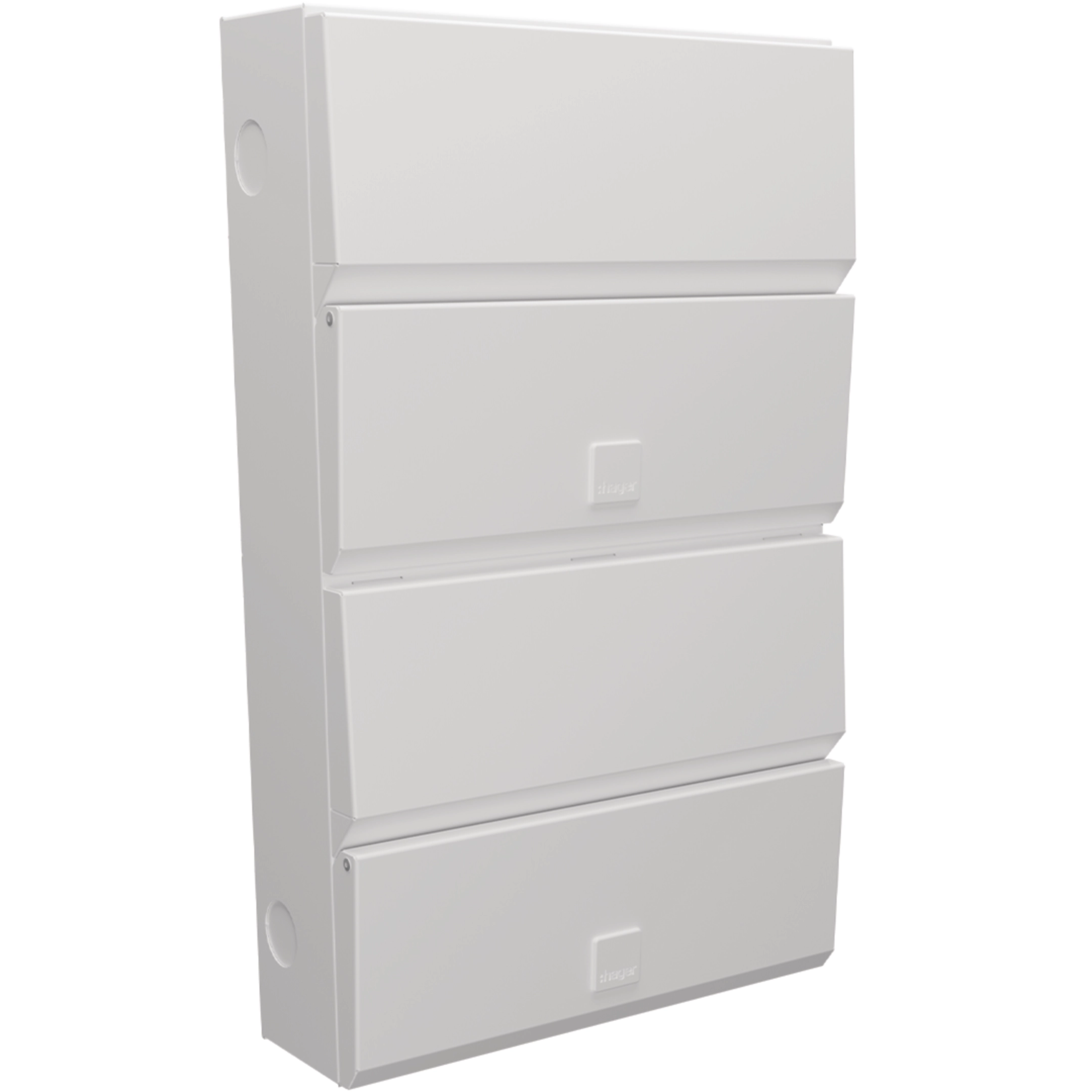

      Image VME10910SPD | Hager

      Product Image VME10910SPD

    • Instruction manual

      Image Instruction manual en-GB 2018-11-22 | Hager

      Instruction manual en-GB 2018-11-22

      PDF
      3,37 MB
      Image Instruction manual en-GB 2019-03-13 | Hager

      Instruction manual en-GB 2019-03-13

      PDF
      838,77 kB

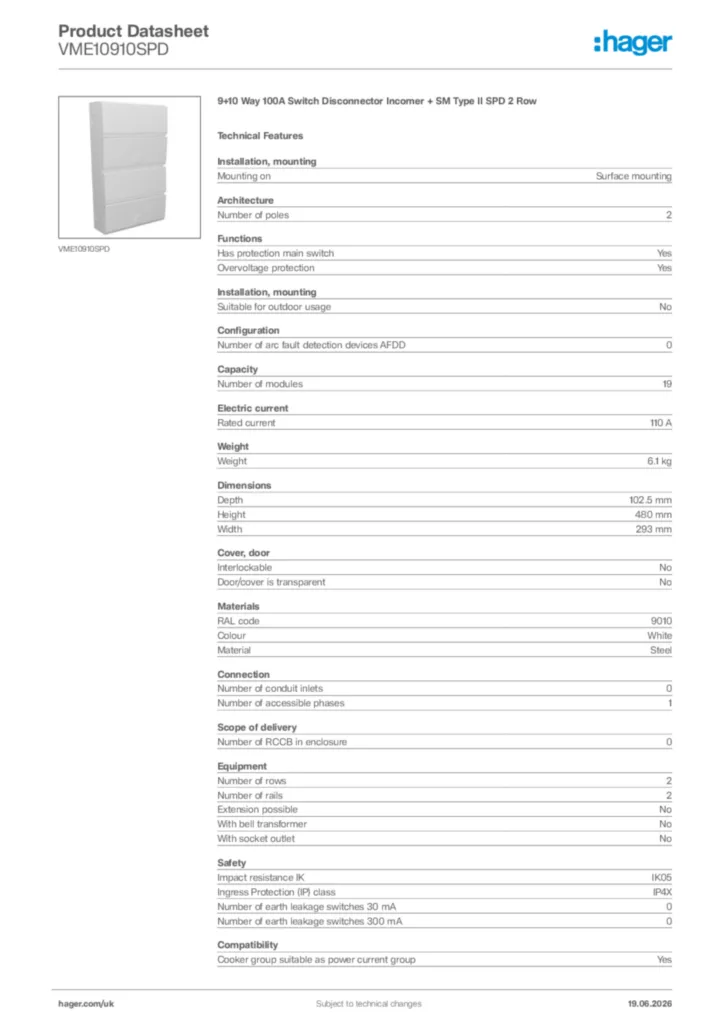

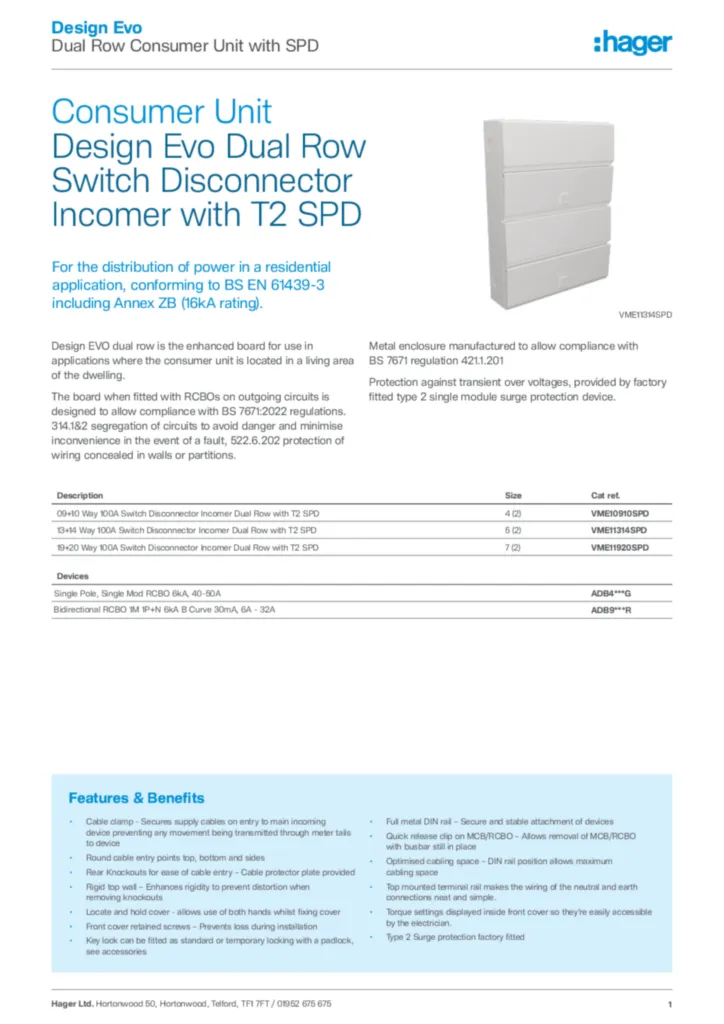

    • Product data sheet

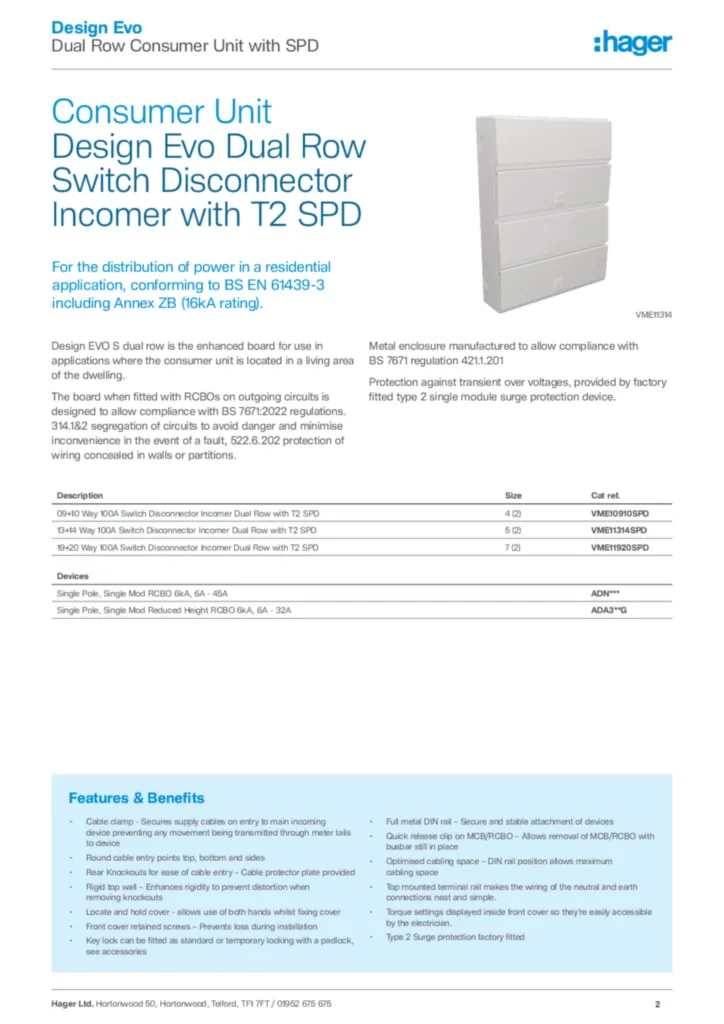

      Image Product data sheet en-GB 2026-02-25 | Hager

      Product data sheet en-GB 2026-02-25

      PDF
      21,06 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-04-29 | Hager

      Declaration of conformity en-GB 2026-04-29

      PDF
      521,07 kB
      Image Declaration of conformity en-GB 2026-04-29 | Hager

      Declaration of conformity en-GB 2026-04-29

      PDF
      514,39 kB
