    • Home
    • Catalogue
    • Commer­cial & Resid­en­tial Distri­bu­tion Boards
    • Resid­en­tial Distri­bu­tion Boards
    • Consumer units
    • VMA90507HSPD
    EAN-Nr.
    5015652606994
    Packaging
    1 piece
    • Consumer units

    Dual Row 100A Sw, 2*100A 30mA RCCB, 5+7 Way, 2 pole busbar, ARC Fault + SPD VMA90507HSPD

    Price
    £686.41
    / piece *
    £686.41
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Dual Row 100A Sw, 2*100A 30mA RCCB, 5+7 Way, 2 pole busbar, ARC Fault + SPD

    VMA90507HSPD

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Archi­tec­ture
    • Number of poles
      2
    Func­tions
    • Has protec­tion main switch
      Yes
    • Over­voltage protec­tion
      Yes
    Capa­city
    • Number of modules
      12
    Elec­tric current
    • Rated current
      100 A
    Dimen­sions
    • Depth
      102.50 mm
    • Height
      480 mm
    • Width
      364 mm
    • Thick­ness of side­wall
      1 mm
    Cover, door
    • Inter­lock­able
      No
    • Door/­cover is trans­parent
      No
    Mater­ials
    • RAL code
      9010
    • Colour
      Pure white
    • Material
      Steel
    Connec­tion
    • Number of access­ible phases
      1
    Scope of delivery
    • Number of earth leakage circuit breaker type A
      2
    • Number of RCCB in enclosure
      2
    Equip­ment
    • Number of rows
      2
    • Number of rails
      2
    • Exten­sion possible
      Yes
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP2XC
    • Protec­tion class
      Isol­a­tion class II

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    12 Way 100A Metal Customer Unit Round KO + T2 SPD
    PDF
    4,15 MB
    Hager REACH declaration VMA90507HSPD
    PDF
    RoHS report VMA90507HSPD
    PDF

    Downloads

    • Product image

      Image VMA90507HSPD | Hager

      Product Image VMA90507HSPD

    • Product datasheet

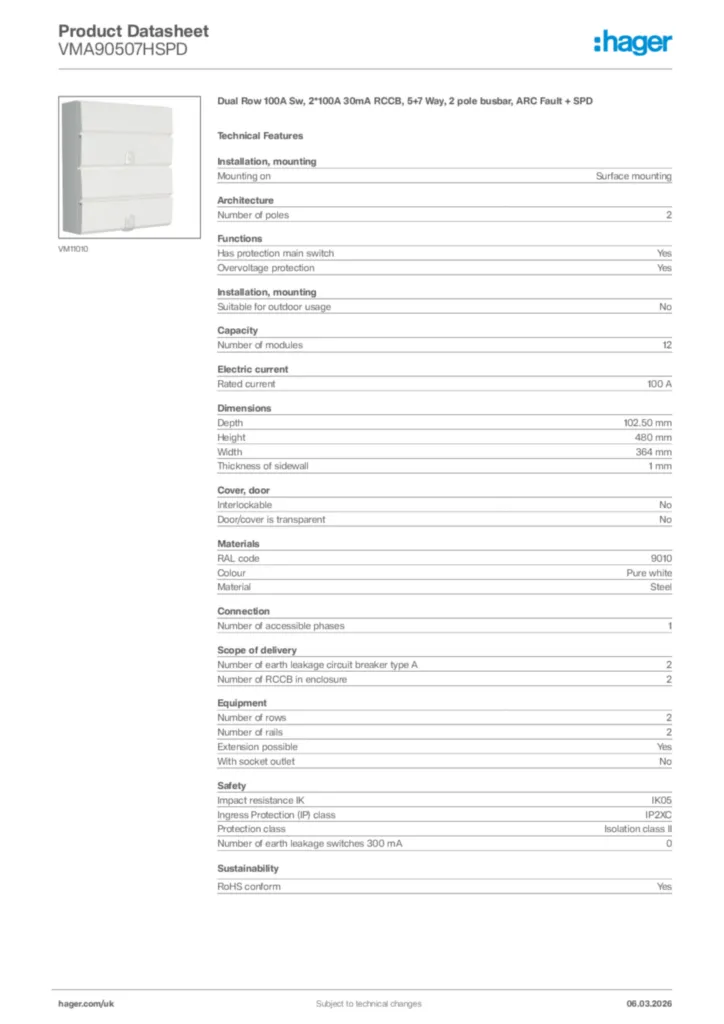

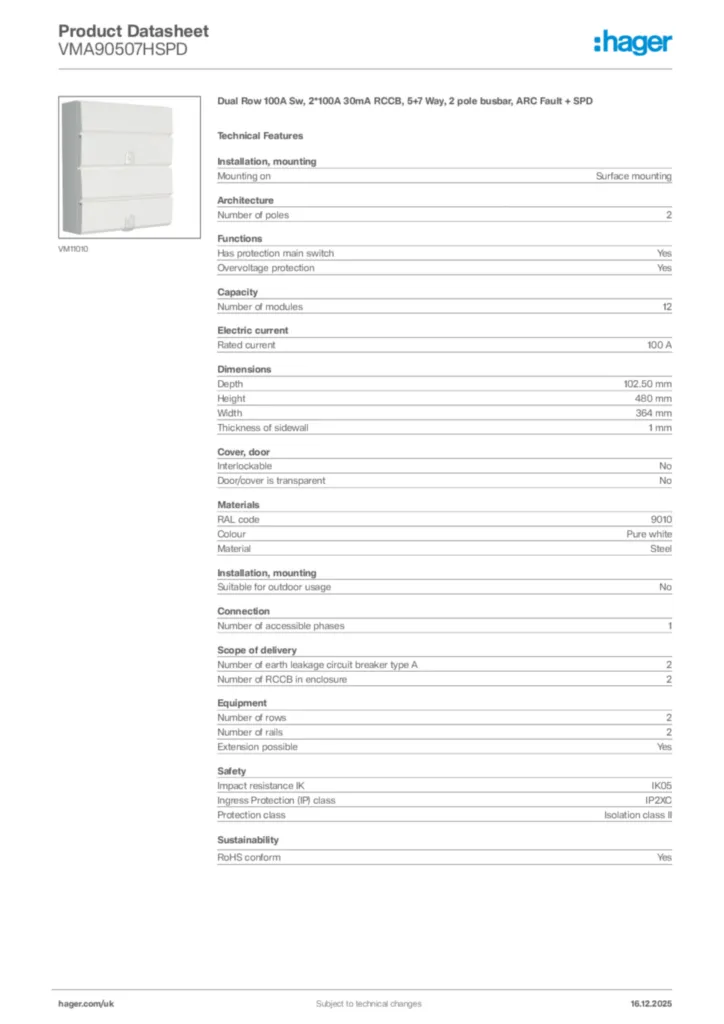

      Image Hager Product data sheet VMA90507HSPD | Hager

      Hager Product data sheet VMA90507HSPD

      Dual Row 100A Sw, 2*100A 30mA RCCB, 5+7 Way, 2 pole busbar, ARC Fault + SPD

      PDF

    • Installation manual

      Image Installation manual en-GB 2017-05-17 | Hager

      Installation manual en-GB 2017-05-17

      PDF
      574,68 kB
      Image Installation manual en-GB 2017-06-20 | Hager

      Installation manual en-GB 2017-06-20

      PDF
      1,10 MB

    • Enduserquickguide

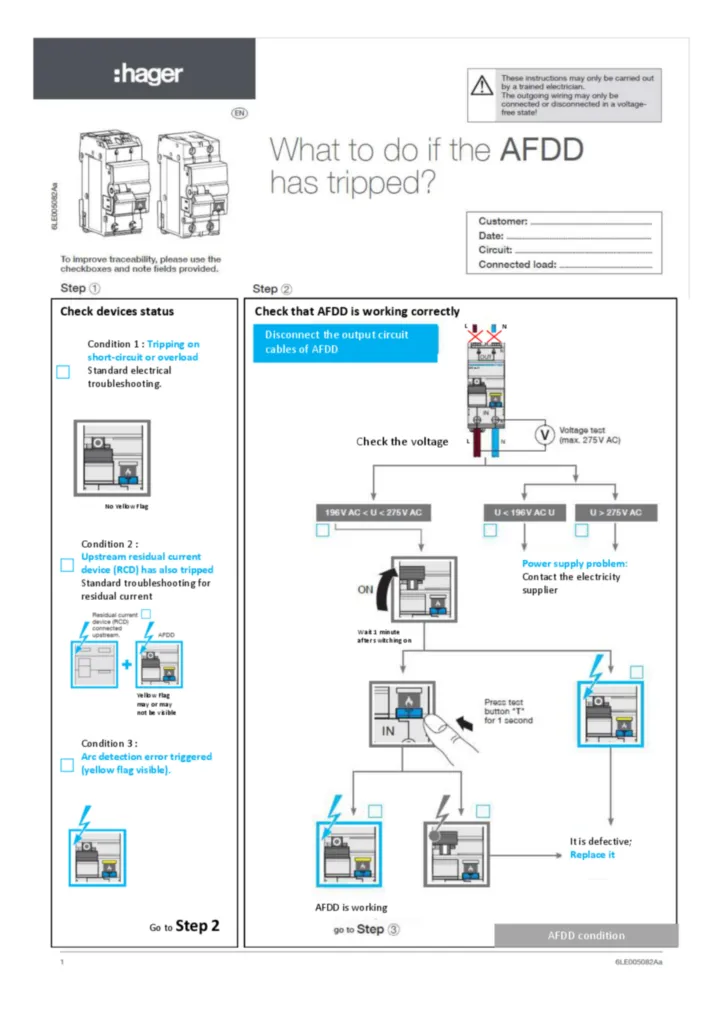

      Image Enduserquickguide en-GB 2020-06-17 | Hager

      Enduserquickguide en-GB 2020-06-17

      PDF
      432,36 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-07

      PDF
      195,58 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-07

      PDF
      240,85 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-07-09

      PDF
      128,10 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-04-28

      PDF
      175,60 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      375,42 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      381,49 kB
