Consumer unit,Design30,12way,multi tariff 6+5+1,1*100A Sw,1*63A VM9651
EAN-Nr.
3250610841204
Packaging
1 piece
Price
£257.11
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Gland plate for enclosure 4 products available -
Side/back panel 1 products available -
Internal mounting accessories 2 products available -
Lock system 1 products available -
Accessories/spare parts for low-voltage switch technology 2 products available
Complete your system
-
VM01CE
Cable entry plate, Design30, metal, consumer unit
£12.54 / piece* -
VM02CECable entry plate, Design Range, insulated, 5 pieces
£18.92 / piece* -
VM03CB30mm*40mm Cable Entry Closed (Pack 10)
£13.19 / piece* -
VM03CE30mm*40mm Cable Entry Open (Pack 10)
£13.19 / piece*
-
VM01SP
Rear stand off plate, Design30, consumer unit
£46.80 / piece*
-
VM04CB
Meter Tail Entry Closed (Pack 10)
£13.19 / piece* -
VM04CEMeter tail Entry Open (Pack 10)
£13.19 / piece*
-
VMHBL
HSE Padlock Bracket, Design Range
£27.87 / piece*
-
VM05GS
Grommet strip, Design30, 5 meters
£8.30 / piece* -
VMGROMGrommet, Design Range, 10 open hole, 38mm for VM-VML-VMLF
£13.16 / piece*
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Architecture
-
Number of poles2
Functions
-
Has protection main switchYes
-
Overvoltage protectionYes
Capacity
-
Number of modules12
Electric current
-
Rated current100 A
Dimensions
-
Depth102.50 mm
-
Height240 mm
-
Width400 mm
-
Thickness of sidewall1 mm
Cover, door
-
InterlockableYes
-
Door/cover is transparentNo
Materials
-
RAL code9010
-
ColourPure white
-
MaterialSteel
Connection
-
Number of accessible phases1
Scope of delivery
-
Number of earth leakage circuit breaker type A2
-
Number of RCCB in enclosure2
Equipment
-
Number of rows1
-
Number of rails1
-
Extension possibleNo
Safety
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP2XC
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

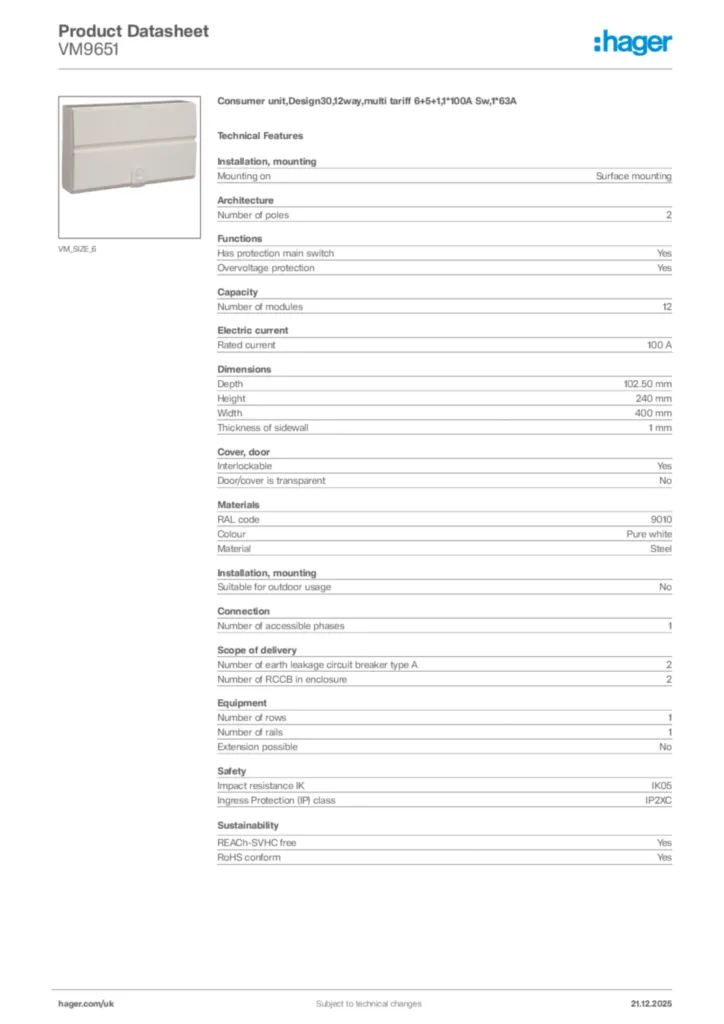

Hager Product data sheet VM9651
