    • Home
    • Catalogue
    • Commer­cial & Resid­en­tial Distri­bu­tion Boards
    • Resid­en­tial Distri­bu­tion Boards
    • Consumer units
    • VM12020K
    EAN-Nr.
    3250610458648
    Packaging
    1 piece
    • Consumer units

    Consumer unit,Design30,dual row,20+20way,100A,switch disconnector income,KO VM12020K

    Price
    £450.12
    / piece *
    £450.12
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Consumer unit,Design30,dual row,20+20way,100A,switch disconnector income,KO

    VM12020K

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Gland plate for enclosure 4 products available
    • Side/­back panel 1 products available
    • Internal mounting accessories 2 products available
    • Lock system 2 products available
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy 2 products available

    Complete your system

    • Gland plate for enclosure
    • Side/­back panel
    • Internal mounting accessories
    • Lock system
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • VM01CE

      Cable entry plate, Design30, metal, consumer unit
      £12.54  / piece*
    • VM02CE

      Cable entry plate, Design Range, insulated, 5 pieces
      £18.92  / piece*
    • VM03CB

      30mm*40mm Cable Entry Closed (Pack 10)
      £13.19  / piece*
    • VM03CE

      30mm*40mm Cable Entry Open (Pack 10)
      £13.19  / piece*
    • VM01SP

      Rear stand off plate, Design30, consumer unit
      £46.80  / piece*
    • VM04CB

      Meter Tail Entry Closed (Pack 10)
      £13.19  / piece*
    • VM04CE

      Meter tail Entry Open (Pack 10)
      £13.19  / piece*
    • VMHBL

      HSE Padlock Bracket, Design Range
      £27.87  / piece*
    • VMLOCK

      Consumer unit, Design Range, VM, door locking kit
      £21.53  / piece*
    • VM05GS

      Grommet strip, Design30, 5 meters
      £8.30  / piece*
    • VMGROM

      Grommet, Design Range, 10 open hole, 38mm for VM-VML-VMLF
      £13.16  / piece*

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Archi­tec­ture
    • Number of poles
      2
    Func­tions
    • Has protec­tion main switch
      Yes
    • Over­voltage protec­tion
      No
    Capa­city
    • Number of modules
      40
    Elec­tric current
    • Rated current
      100 A
    Dimen­sions
    • Depth
      102.50 mm
    • Height
      480 mm
    • Width
      471 mm
    • Thick­ness of side­wall
      1 mm
    Cover, door
    • Inter­lock­able
      No
    • Door/­cover is trans­parent
      No
    Mater­ials
    • RAL code
      9010
    • Colour
      Pure white
    • Material
      Steel
    Connec­tion
    • Number of access­ible phases
      1
    Scope of delivery
    • Number of RCCB in enclosure
      0
    Equip­ment
    • Number of rows
      2
    • Number of rails
      2
    • Exten­sion possible
      No
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP2XC

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    12 Way 100A Metal Customer Unit Round KO + T2 SPD
    PDF
    4,15 MB
    REACH declaration VM12020K
    PDF
    Hager RoHS report VM12020K
    PDF

    Downloads

    • Product image

      Image VM12020K | Hager

      Product Image VM12020K

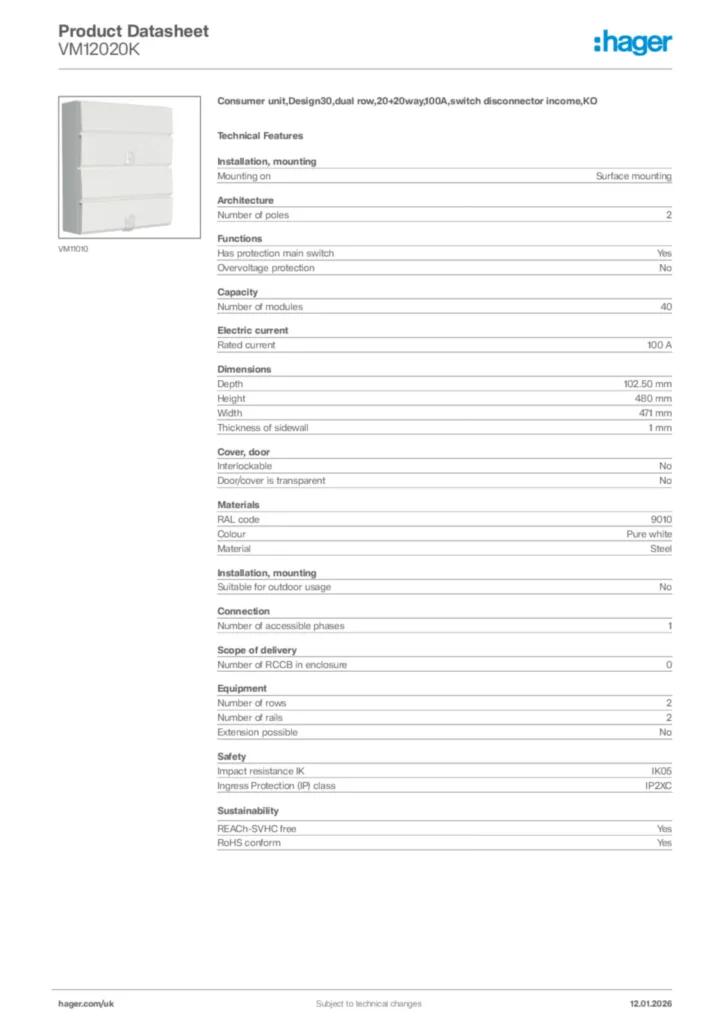

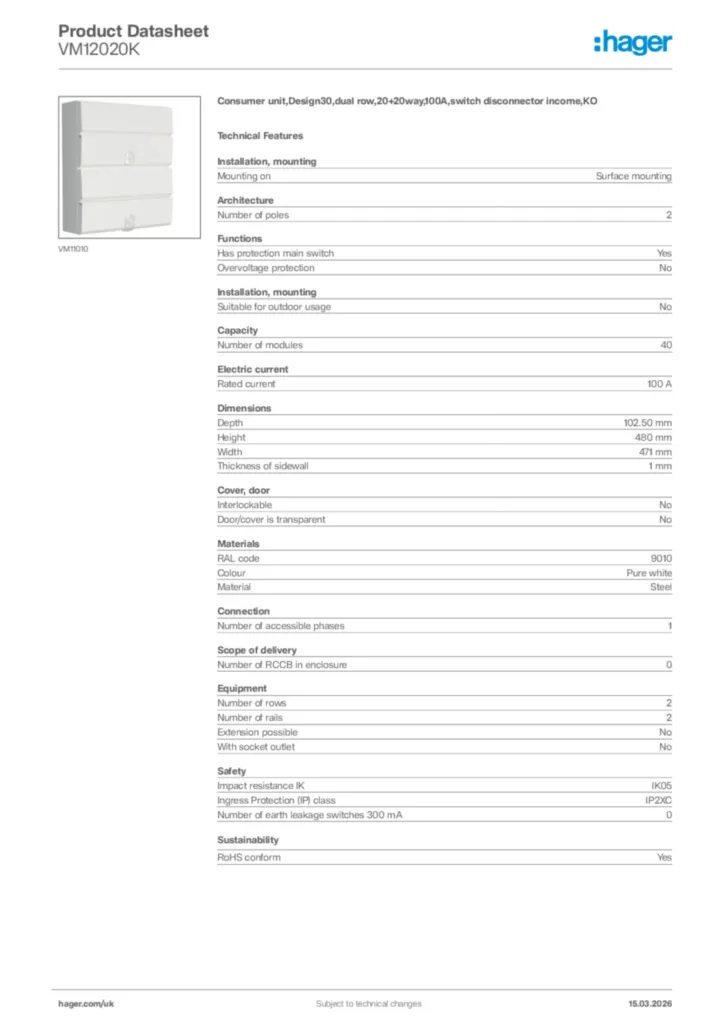

    • Product datasheet

      Image Hager Product data sheet VM12020K | Hager

      Hager Product data sheet VM12020K

      Consumer unit,Design30,dual row,20+20way,100A,switch disconnector income,KO

      PDF

    • Installation manual

      Image ZD0830.PDF | Hager

      ZD0830.PDF

      Design 30 Dual Row instruction manual.

      PDF
      2,26 MB

    • Product attachment

      Image Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units | Hager

      Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units

      PDF
      3,38 MB

    • Safety data sheet

      Image AFDD Consumer Unit Guidance Notes | Hager

      AFDD Consumer Unit Guidance Notes

      Safety data sheet en-GB 2022-11-22

      PDF
      3,45 MB

    • Product data sheet

      Image UK_Design30_DualRow_SwitchDisconnectorIncomer.pdf | Hager

      UK_Design30_DualRow_SwitchDisconnectorIncomer.pdf

      Product data sheet en-GB 2018-03-05

      PDF
      216,76 kB
      Image UK_HAGER_TDS_TORQUESETTING.pdf | Hager

      UK_HAGER_TDS_TORQUESETTING.pdf

      Technical data sheets for torque settings

      PDF
      105,95 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-25

      PDF
      394,06 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-26

      PDF
      403,64 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-02-28

      PDF
      377,30 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-02-28

      PDF
      192,00 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-07-09

      PDF
      163,66 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      375,42 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      381,49 kB
    More documentation
