Design 30, 18 way 100A SW SPD VM118SPD
EAN-Nr.
5015652605065
Packaging
1 piece
Price
£386.01
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Gland plate for enclosure 1 products available -
Lock system 2 products available -
Accessories/spare parts for low-voltage switch technology 1 products available
Complete your system
-
VM02CE
Cable entry plate,Design Range,insulated,5 pieces
£18.92 / piece*
-
VMHBL
HSE Padlock Bracket,Design Range
£27.87 / piece* -
VMLOCKConsumer unit,Design Range,VM,door locking kit
£21.53 / piece*
-
VMGROM
Grommet,Design Range,10 open hole,38mm for VM-VML-VMLF
£13.16 / piece*
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Architecture
-
Number of poles2
Functions
-
Has protection main switchYes
-
Overvoltage protectionNo
Capacity
-
Number of modules18
Electric current
-
Rated current100 A
Dimensions
-
Depth102.50 mm
-
Height240 mm
-
Width472 mm
-
Thickness of sidewall1 mm
Cover, door
-
InterlockableNo
-
Door/cover is transparentNo
Materials
-
RAL code9010
-
ColourPure white
-
MaterialSteel
Connection
-
Number of accessible phases1
Scope of delivery
-
Number of RCCB in enclosure0
Equipment
-
Number of rows1
-
Number of rails1
-
Extension possibleNo
Safety
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP2XC
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Instruction manual
Instruction manual en-GB 2022-12-06
PDF10,23 MB -
Product attachment
Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units
PDF3,38 MB -
Safety data sheet
AFDD Consumer Unit Guidance Notes
Safety data sheet en-GB 2022-11-22
PDF3,45 MB -

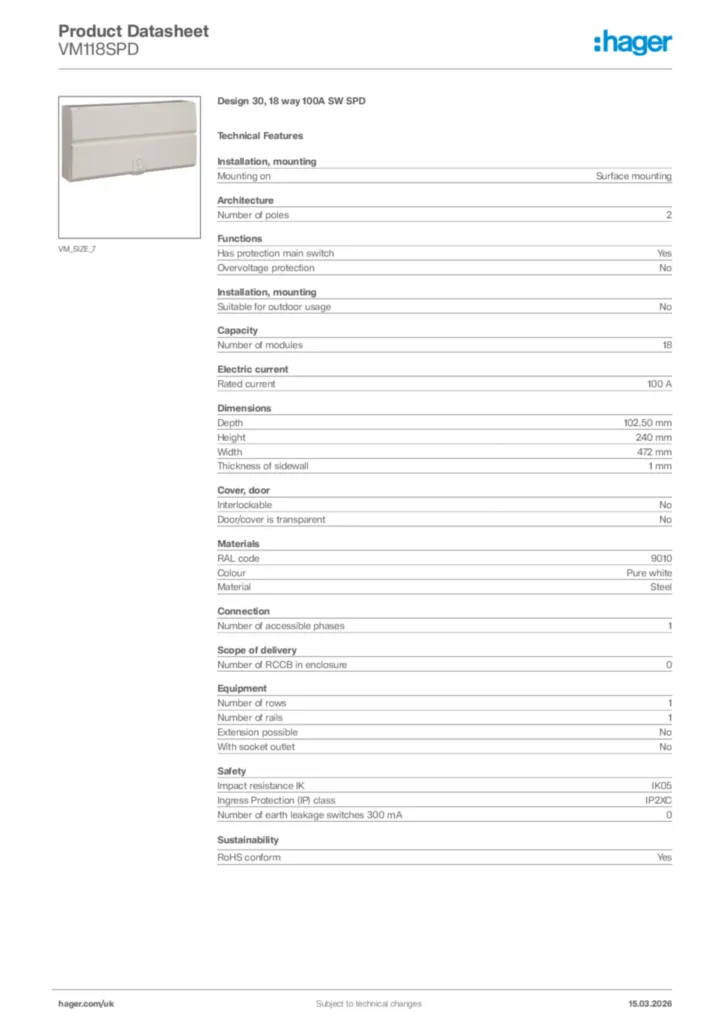

Product data sheet
Product data sheet en-GB 2017-09-29
PDF540,58 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-25
PDF394,06 kB
Declaration
Declaration of conformity International 2022-10-26
PDF403,64 kB
Declaration
Declaration of conformity International 2023-02-28
PDF377,30 kB
Declaration
Declaration of conformity International 2023-02-28
PDF192,00 kB
Declaration
Declaration of conformity International 2022-10-07
PDF195,58 kB
Declaration
Declaration of conformity International 2022-10-07
PDF240,85 kB
Declaration of conformity International 2023-12-20
PDF375,42 kB
Declaration of conformity International 2023-12-20
PDF381,49 kB
