Consumer unit,Design30,dual row,10+10way,100A,switch disconnector incomer,KO VM11010K
EAN-Nr.
3250610458563
Packaging
1 piece
Price
£381.36
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Gland plate for enclosure 4 products available -
Side/back panel 1 products available -
Internal mounting accessories 2 products available -
Lock system 2 products available -
Accessories/spare parts for low-voltage switch technology 2 products available
Complete your system
-
VM01CE
Cable entry plate, Design30, metal, consumer unit
£12.54 / piece* -
VM02CECable entry plate, Design Range, insulated, 5 pieces
£18.92 / piece* -
VM03CB30mm*40mm Cable Entry Closed (Pack 10)
£13.19 / piece* -
VM03CE30mm*40mm Cable Entry Open (Pack 10)
£13.19 / piece*
-
VM01SP
Rear stand off plate, Design30, consumer unit
£46.80 / piece*
-
VM04CB
Meter Tail Entry Closed (Pack 10)
£13.19 / piece* -
VM04CEMeter tail Entry Open (Pack 10)
£13.19 / piece*
-
VMHBL
HSE Padlock Bracket, Design Range
£27.87 / piece* -
VMLOCKConsumer unit, Design Range, VM, door locking kit
£21.53 / piece*
-
VM05GS
Grommet strip, Design30, 5 meters
£8.30 / piece* -
VMGROMGrommet, Design Range, 10 open hole, 38mm for VM-VML-VMLF
£13.16 / piece*
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Architecture
-
Number of poles2
Functions
-
Has protection main switchYes
-
Overvoltage protectionNo
Capacity
-
Number of modules20
Electric current
-
Rated current100 A
Dimensions
-
Depth102.50 mm
-
Height480 mm
-
Width292 mm
-
Thickness of sidewall1 mm
Cover, door
-
InterlockableNo
-
Door/cover is transparentNo
Materials
-
RAL code9010
-
ColourPure white
-
MaterialSteel
Connection
-
Number of accessible phases1
Scope of delivery
-
Number of RCCB in enclosure0
Equipment
-
Number of rows2
-
Number of rails2
-
Extension possibleNo
Safety
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP2XC
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

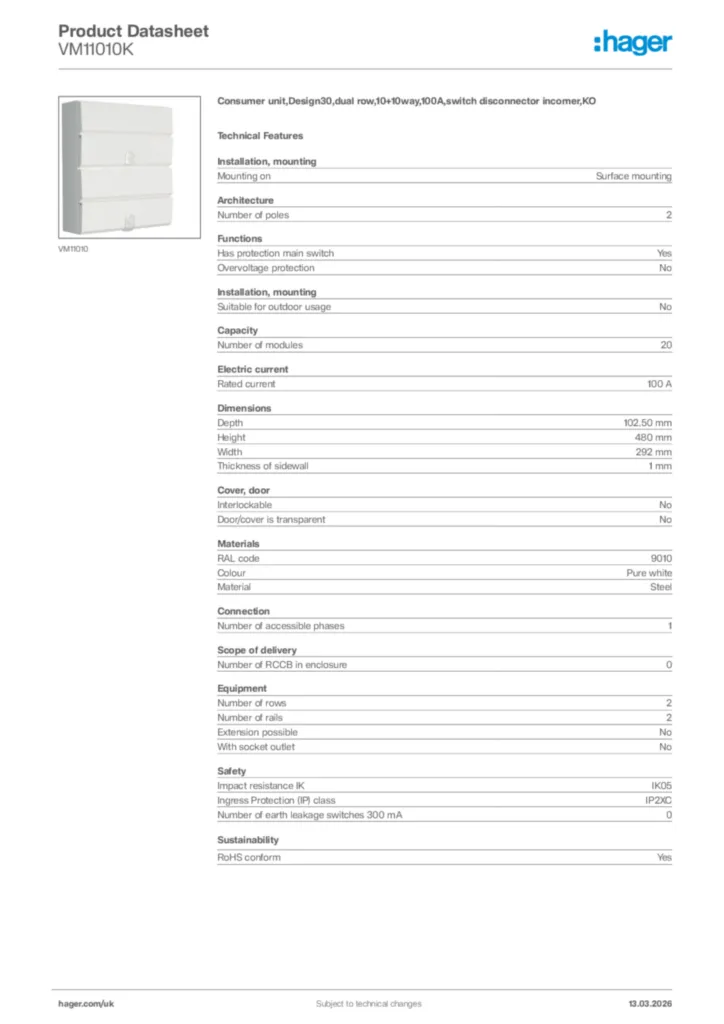

Hager Product data sheet VM11010K
Consumer unit,Design30,dual row,10+10way,100A,switch disconnector incomer,KO
PDF -
Installation manual
ZD0830.PDF
Design 30 Dual Row instruction manual.
PDF2,26 MB -
Product attachment
Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units
PDF3,38 MB -
Safety data sheet
AFDD Consumer Unit Guidance Notes
Safety data sheet en-GB 2022-11-22
PDF3,45 MB -
Product data sheet
UK_Design30_DualRow_SwitchDisconnectorIncomer.pdf
Product data sheet en-GB 2018-03-05
PDF216,76 kB
UK_HAGER_TDS_TORQUESETTING.pdf
Technical data sheets for torque settings
PDF105,95 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-25
PDF394,06 kB
Declaration
Declaration of conformity International 2022-10-26
PDF403,64 kB
Declaration
Declaration of conformity International 2023-02-28
PDF377,30 kB
Declaration
Declaration of conformity International 2023-02-28
PDF192,00 kB
Declaration
Declaration of conformity International 2021-07-09
PDF163,66 kB
Declaration of conformity International 2023-12-20
PDF375,42 kB
Declaration of conformity International 2023-12-20
PDF381,49 kB
