Enclosure,Design30,12 module,with DIN rail, metal,with KO VM012K
EAN-Nr.
3250610840412
Packaging
1 piece
Price
£174.58
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Gland plate for enclosure 4 products available -
Side/back panel 1 products available -
Internal mounting accessories 2 products available -
Lock system 2 products available -
Accessories/spare parts for low-voltage switch technology 2 products available
Complete your system
-
VM01CE
Cable entry plate,Design30,metal,consumer unit
£12.54 / piece* -
VM02CECable entry plate,Design Range,insulated,5 pieces
£18.92 / piece* -
VM03CB30mm*40mm Cable Entry Closed (Pack 10)
£13.19 / piece* -
VM03CE30mm*40mm Cable Entry Open (Pack 10)
£13.19 / piece*
-
VM01SP
Rear stand off plate,Design30,consumer unit
£46.80 / piece*
-
VM04CB
Meter Tail Entry Closed (Pack 10)
£13.19 / piece* -
VM04CEMeter tail Entry Open (Pack 10)
£13.19 / piece*
-
VMHBL
HSE Padlock Bracket,Design Range
£27.87 / piece* -
VMLOCKConsumer unit,Design Range,VM,door locking kit
£21.53 / piece*
-
VM05GS
Grommet strip,Design30,5 meters
£8.30 / piece* -
VMGROMGrommet,Design Range,10 open hole,38mm for VM-VML-VMLF
£13.16 / piece*
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Capacity
-
Number of modules12
Electric current
-
Rated current100 A
Dimensions
-
Depth102 mm
-
Height240 mm
-
Width292 mm
-
Number of width units12
Cover, door
-
Door/cover is transparentNo
Materials
-
RAL code9010
-
ColourPure white
-
MaterialSteel
Equipment
-
Number of rows1
Safety
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP2XC
-
Protection classIsolation class III
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
UK_HAGER_INS_IPRATINGS.pdf
IP Rating Guidance
PDF356,09 kB
ZD0821.PDF
Instruction manual for Design 30 new base.
PDF1,75 MB -
Product attachment
Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units
PDF3,38 MB -
BIM Revit objects
Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,19 MB
Range : Surface Mounting Consumer Units. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,18 MB
Range SM Design 30-SwitchDisconnector Incomer -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,18 MB
Range SM Design 30-SwitchDisconnector Incomer -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,17 MB -
Safety data sheet
AFDD Consumer Unit Guidance Notes
Safety data sheet en-GB 2022-11-22
PDF3,45 MB -

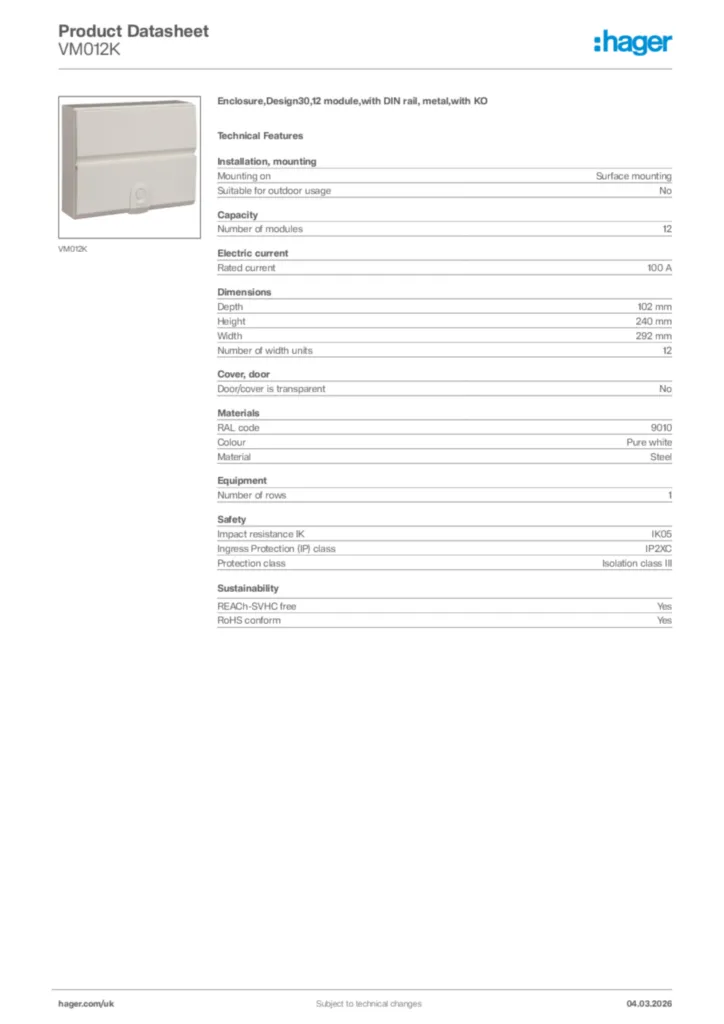

Product data sheet
UK_HAGER_TDS_DINENCLOSURES.pdf
Technical data sheet including DIN Rail enclosure dimensions.
PDF266,44 kB
UK_HAGER_TDS_TORQUESETTING.pdf
Technical data sheets for torque settings
PDF105,95 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-25
PDF394,06 kB
Declaration
Declaration of conformity International 2022-10-26
PDF403,64 kB
Declaration
Declaration of conformity International 2023-02-28
PDF377,30 kB
Declaration
Declaration of conformity International 2023-02-28
PDF192,00 kB
Declaration of conformity International 2023-12-20
PDF375,42 kB
Declaration of conformity International 2023-12-20
PDF381,49 kB
More documentation
