SBN180

Name: SBN180
SKU: SBN1801
Price: 23.53 GBP

1-pole, 80A Modular Switch

EAN

3250615510242

Quantity

Trade price*

£23.53 /prt.*

Technical characteristics
Complete your system
Documentations
More products

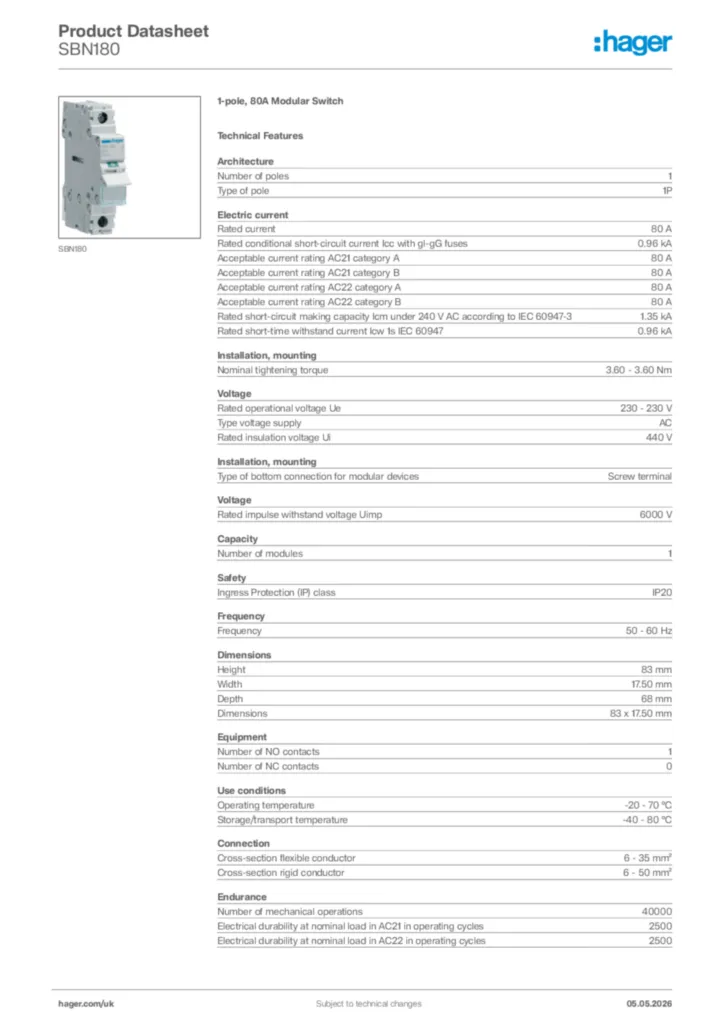

Download Technical Characteristics

Technical characteristics

More Information
Closing ability with 400V in AC23A	1354 A
Rated short-time withstand current 1s	0.96 kA
Rated short-circuit making capacity Icm under 240V AC according IEC 60947-3	1354 A
Rated current	80 A
Short-circuit current with gI-gG fuses	960 A
Protection index IP	IP20
Cage clamp position	in line
Thermal rated current outside of housings	80 A
European directive WEEE	concerned
Height of installed product	83 mm
Altitude	2000 m
Rated operational current in AC21 category A	80 A
Rated operational current in AC21category B	80 A
Acceptable current rating with AC22 category A	80 A
Acceptable current rating with AC22 category B	80 A
Frequency	50;60 Hz
Tightening torque	3,6Nm
Degree of pollution according to IEC 60664 / IEC 60947-2	2
Electrical durability at nominal load in AC21in operating cycles	2500
Electrical durability at nominal load in AC22 in operating cycles	2500
Frequency (range for ETIM)	50/60 Hz
Device family	SBN
Width of installed product	17.5 mm
Number of mechanical operations	40000
Operating temperature	-20/50 °C
Rated impulse withstand voltage	6000 V
With signal lamp	No
Rated operational voltage Ue	230 V
Storage temperature	-40/80 °C
Number of poles	1 P
Standard text	IEC 60947-3
Connection cross-sect. flexible conductor	6 ; 35mm²
Connection cross-sect. rigid cable	6 ; 50mm²
Type of voltage input 1	AC
Quantity of NO contacts	1
Type of pole	1 P
Quantity of NC contacts	0
Quantity of INV contacts	0
Total power loss under IN	2.7 W
Power loss per pole at In	2.7 W
Depth of installed product	68 mm
Neutral position	without neutral
Type of order	Break switch
Type of connection	with screw
Number of modules	1
Quantity of half modules of 17,7mm	2
Rated insulation voltage	440 V
Unit	PCE
EAN	3250615510242
Sales status	3C
