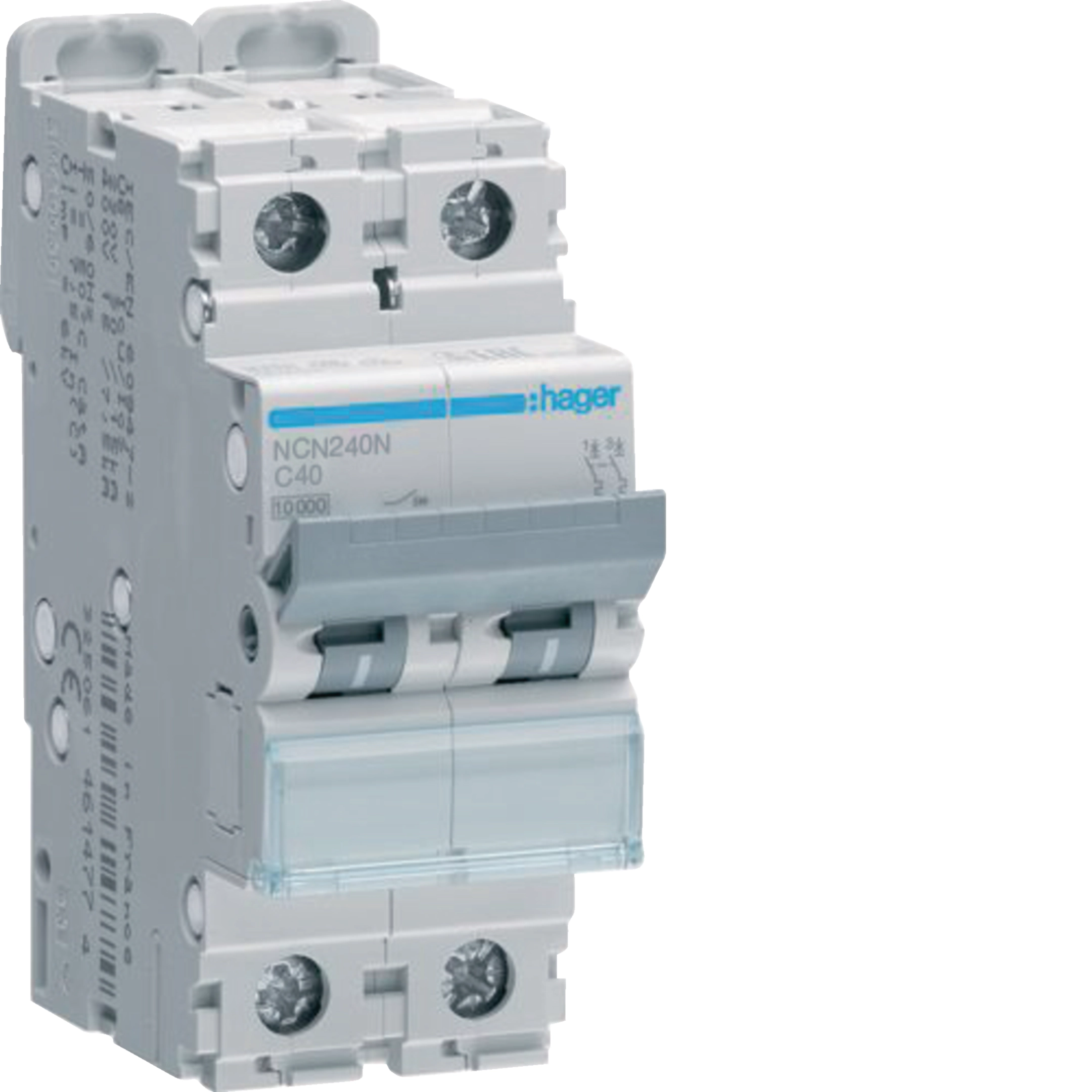

MCB 2P 10kA C-40A 2M NCN240N

Name: NCN240N
Brand: Hager
SKU: NCN240N

Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

NCN240A

Accessories
Technical characteristics
Environmental value
Documentations

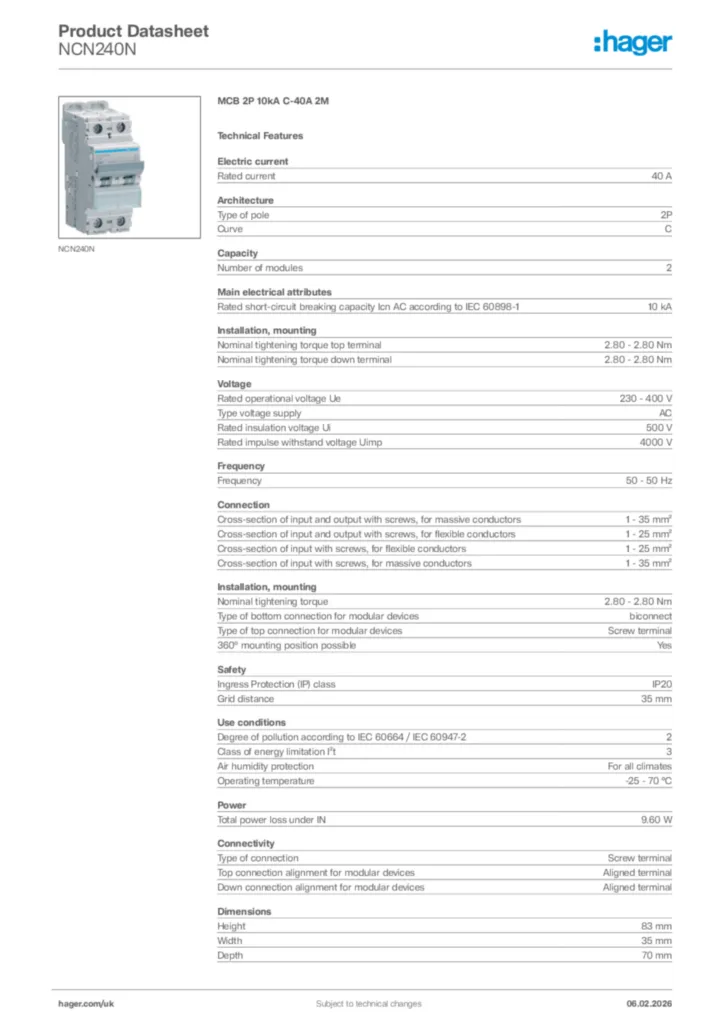

Download the sheet

Complete your system

Mechanic accessories for low-voltage components 1 products available

Technical characteristics

Rated current

40 A

Type of pole

2P

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V

Frequency

50 - 50 Hz

Ingress Protection (IP) class

IP20
Grid distance

35 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

9.60 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
Cross-section flexible conductor

1 - 25 mm²
Cross-section rigid conductor

1 - 35 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
