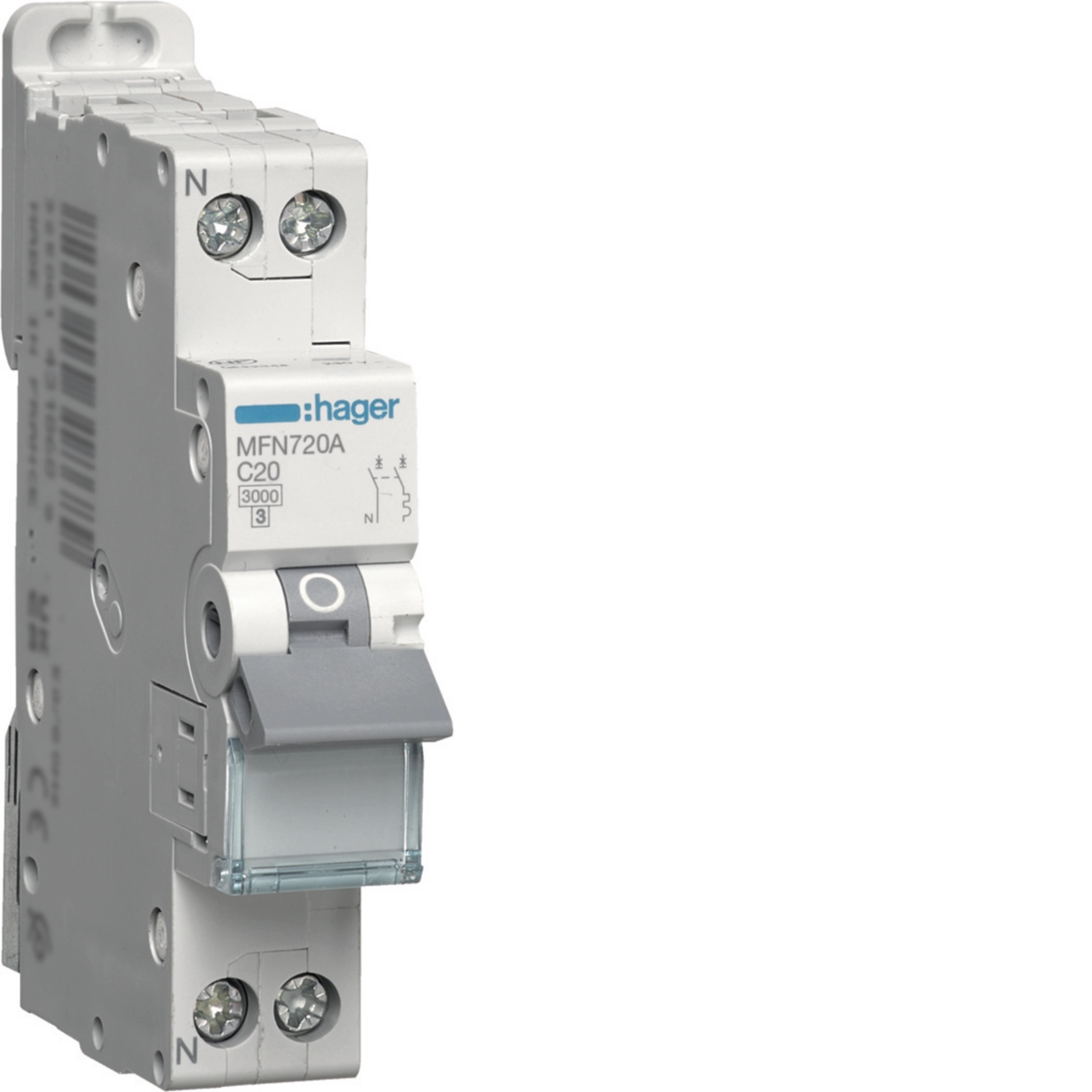

MCB 1P+N 3kA C-20A 1M MFN720A
Price
£54.93
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Mechanic accessories for low-voltage components 1 products available
Complete your system
-
MZN175
Padlockable locking kit for MCB, RCCB and RCBO
£10.06 / piece*
-
LZ060
Heat dissipation insert
£10.46 / piece*
Technical characteristics
Architecture
-
Type of pole1P+N
Electric current
-
Rated current20 A
-
Rated service breaking capacity Ics AC according to IEC 60898-13 kA
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-13 kA
-
Min./max. threshold value of the AC thermal operation1.13 - 1.45 A
-
Rated current -25°C25.30 A
-
Rated current at -20°C24.90 A
-
Rated current -15°C24.40 A
-
Rated current -10°C24 A
-
Rated current -5°C23.50 A
-
Rated current at 0°C23 A
-
Rated current 5°C22.60 A
-
Rated current 10°C22.10 A
-
Rated current 15°C21.60 A
-
Rated current at 20°C21.10 A
-
Rated current 25°C20.50 A
-
Rated current 30°C20 A
-
Rated current 35°C19.50 A
-
Rated current at 40°C18.90 A
-
Rated current at 45°C18.30 A
-
Rated current at 50°C17.70 A
-
Rated current 55°C17.10 A
-
Rated current 60°C16.40 A
-
Rated current 65°C15.70 A
-
Rated current 70°C15 A
-
Correction factor of rating current for 2 devices placed side by side1
-
Correction factor of rating current for 3 devices placed side by side0.95
-
Correction factor of rating current for 4 and 5 devices placed side by side0.90
-
Correction factor of rating current for 6 devices placed side by side0.85
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-13 kA
Installation, mounting
-
Nominal tightening torque down terminal1.90 - 1.90 Nm
-
Nominal tightening torque top terminal1.90 - 1.90 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesScrew terminal
-
Nominal tightening torque1.90 - 1.90 Nm
Voltage
-
Rated operational voltage Ue230 - 240 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Max. operating voltage253 V
-
Overvoltage category according to IEC 60947-13
Frequency
-
Frequency50 - 60 Hz
Capacity
-
Number of modules1
Power
-
Total power loss under IN4.40 W
Use conditions
-
Operating temperature-25 - 70 °C
-
Max. Altitude2,000 m
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations20,000
Safety
-
Ingress Protection (IP) classIP20
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesShifted terminal
-
Down connection alignment for modular devicesShifted terminal
Connection
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
Dimensions
-
Height84.70 mm
-
Width17.50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

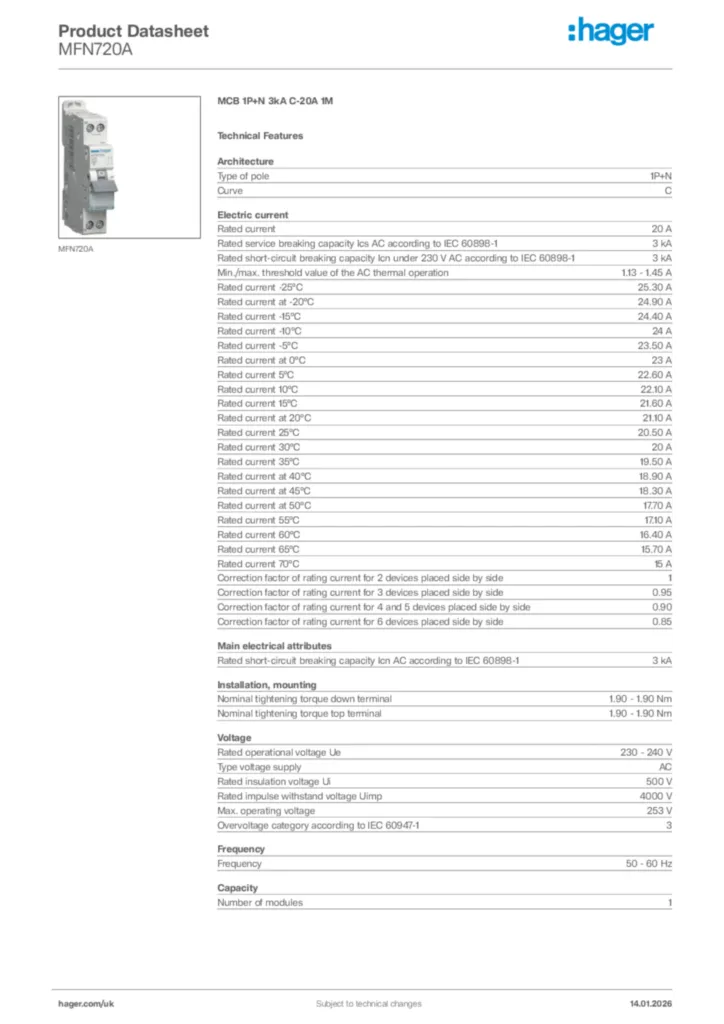

Hager Product data sheet MFN720A
