Fuse-switch-disconnector D02 E18 63A AC400 V 1pole DIN rail L71M
EAN-Nr.
3250610740569
Packaging
12 Pieces
Price
£246.32
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Fuse
-
Fuse sizeD02
Architecture
-
Number of poles1
Electric current
-
Rated current63 A
-
Rated current of fuse cartridge2 A, 4 A, 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 35 A, 40 A, 50 A, 63 A
-
Rated conditional short-circuit current Icc50 kA
Installation, mounting
-
Mounting onDIN rail
-
Nominal tightening torque3.30 - 3.30 Nm
Dimensions
-
Height85 mm
-
Width27 mm
-
Depth79 mm
Connection
-
Cross-section flexible conductor1.5 - 35 mm²
-
Cross-section rigid conductor1.5 - 35 mm²
Use conditions
-
Operating temperature-25 - 40 °C
Frequency
-
Frequency50 - 50 Hz
Power
-
Total power loss under IN1.60 W
-
Power loss of the Fuse-Link installed in device5.50 W
Texts
-
ProtectionContact protection safe from touch by finger and back of hand
Voltage
-
Rated insulation voltage Ui800 V
Safety
-
Ingress Protection (IP) classIP20C
Materials
-
MaterialPlastic
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

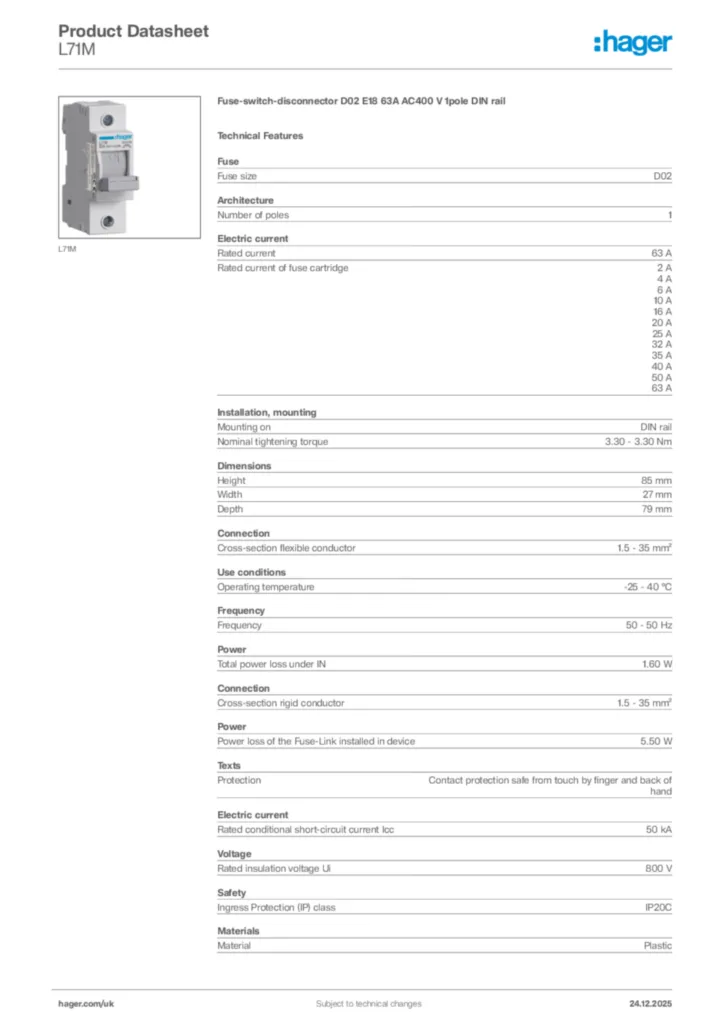

Hager Product data sheet L71M
