Fuse carrier 1P+N 10A 250V 1M L12401

Name: L12401
Brand: Hager
SKU: L12402
Price: 28.35 GBP

Price

£28.35

/ piece *

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Environmental value
Documentations

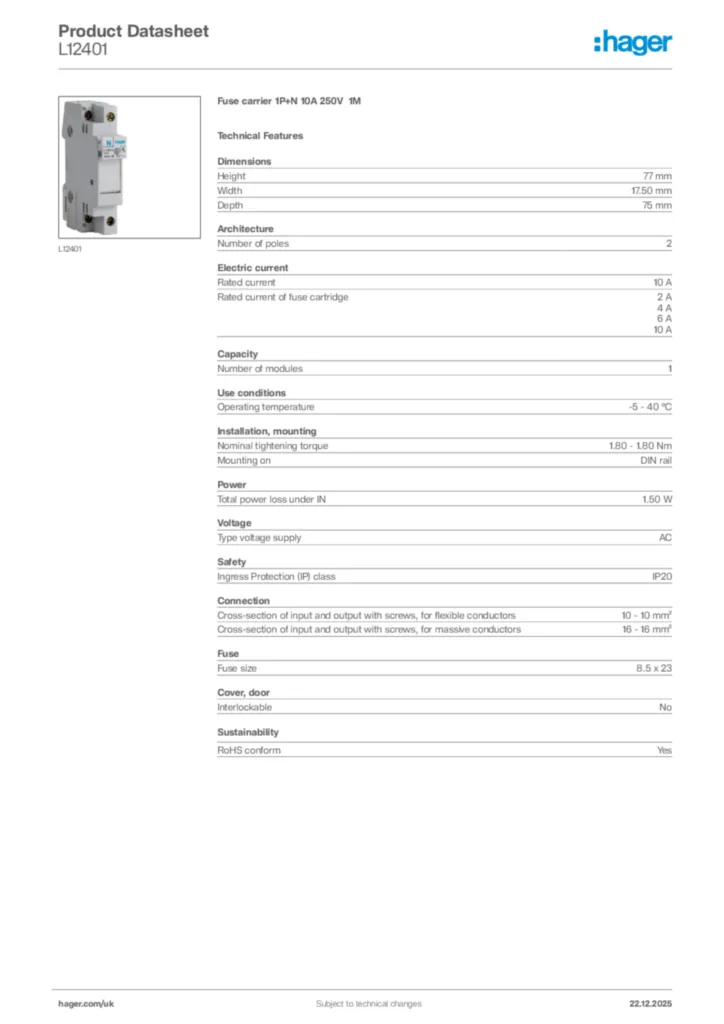

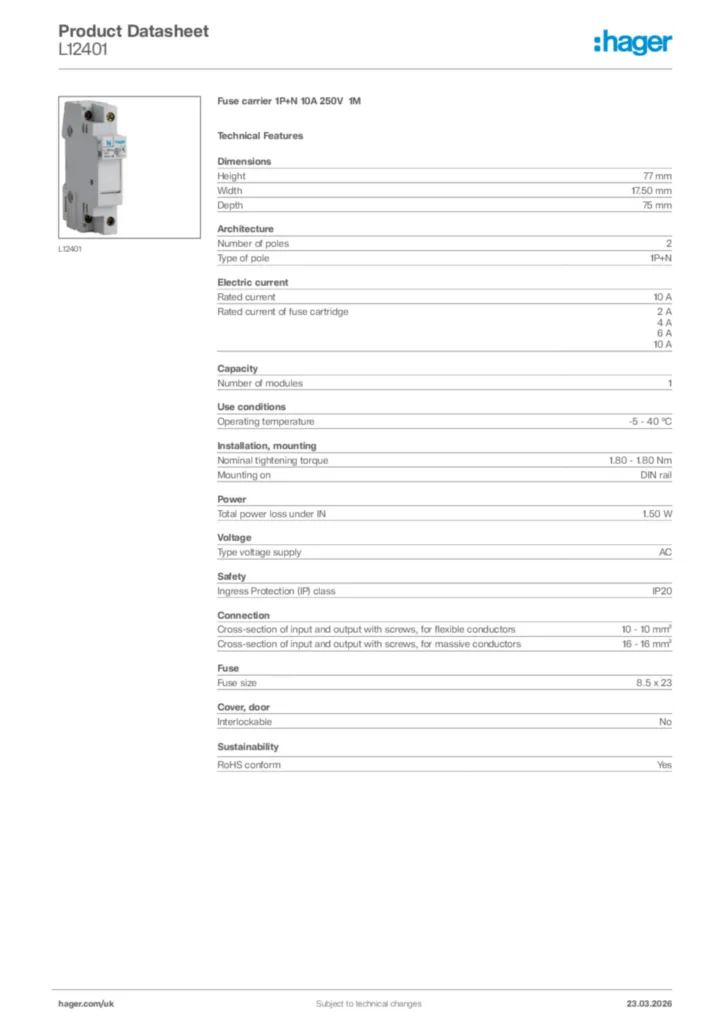

Download the sheet

Technical characteristics

Height

77 mm
Width

17.50 mm
Depth

75 mm

Number of poles

2
Type of pole

1P+N

Rated current

10 A
Rated current of fuse cartridge

2 A, 4 A, 6 A, 10 A

Number of modules

1

Number of half modules of 17,5 mm

2

Operating temperature

-5 - 40 °C

Nominal tightening torque

1.80 - 1.80 Nm
Mounting on

DIN rail

Total power loss under IN

1.50 W

Type voltage supply

AC

Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for flexible conductors

10 - 10 mm²
Cross-section of input and output with screws, for massive conductors

16 - 16 mm²

Fuse size

8.5 x 23

Interlockable

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
