Earth terminal, 35mm², screw connection KXB35E
EAN-Nr.
3250613941963
Packaging
20 PCEs
Price
£18.27
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Dimensions
-
Depth of installed product16 mm
-
Height of installed product51.5 mm
-
Width of installed product54 mm
Power
-
Total power loss under IN1 W
-
Dissipated energy in cable1 W
Connection
-
Connection cross-sect. flexible conductor35 mm² max.
-
Connection cross-sect. rigid cable50mm² max.
-
Type of connectionwith screw
Downloads
-

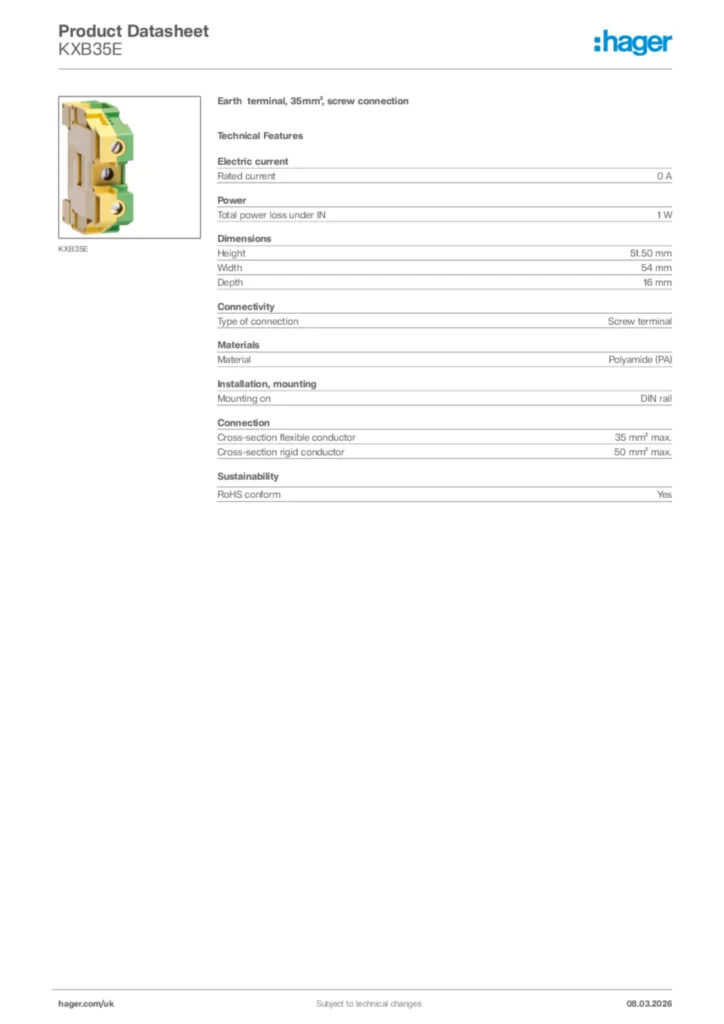

Product image
-
Declaration of conformity
EU Declaration of conformity for KXB35E
Declaration
PDF265 KB
EU Declaration of conformity for KXB35E
Declaration
PDF194 KB -
RoHS report
Pollutant guidelines for KXB35E
REACH declaration KXB35E (english)
PDF32 KB
Pollutant guidelines for KXB35E
RoHS declaration KXB35E (english)
PDF33 KB
More documentation
