Feed-through terminal-neutral, 4mm², 800V/32A KXA04NH
EAN-Nr.
3250613941826
Packaging
100 Pieces
Price
£9.80
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Component terminal block 1 products available
Technical characteristics
Electric current
-
Rated current32 A
Power
-
Total power loss under IN1 W
Dimensions
-
Height48.50 mm
-
Width44.50 mm
-
Depth6 mm
Connectivity
-
Type of connectionScrew terminal
Installation, mounting
-
Mounting onDIN rail
Connection
-
Cross-section flexible conductor0.5 - 4 mm²
-
Cross-section rigid conductor0.5 - 6 mm²
Materials
-
ColourBlue
-
RAL code5002
-
MaterialPolyamide (PA)
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-

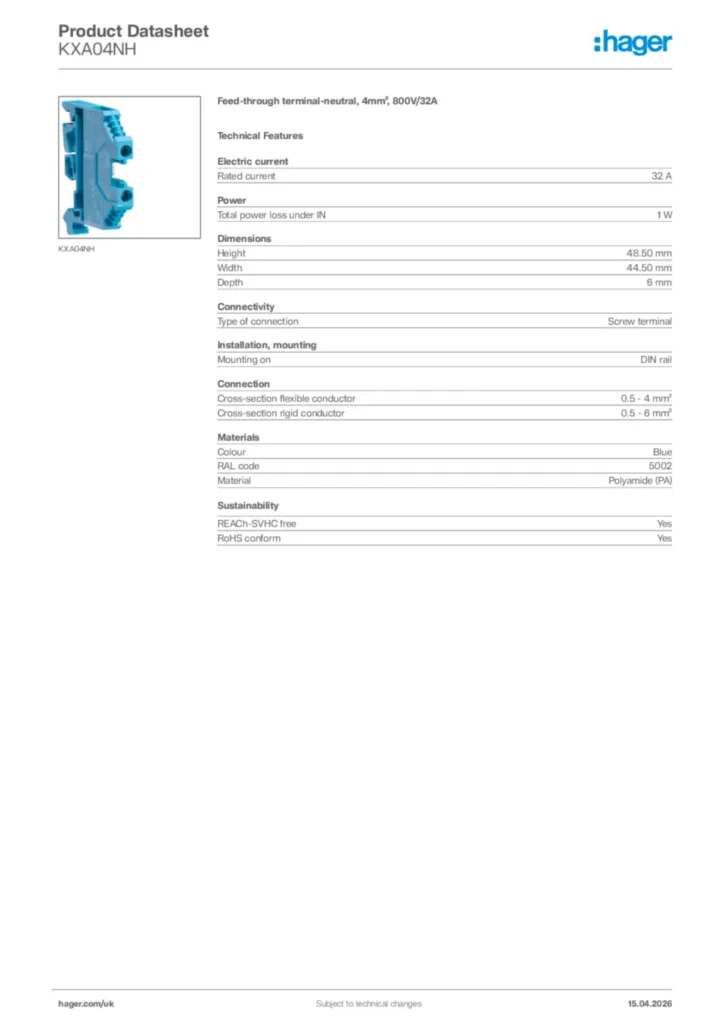

Product image
-
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-29
PDF194,57 kB
Declaration
Declaration of conformity International 2022-11-16
PDF265,19 kB
