    • Home
    • Catalogue
    • Commer­cial & Resid­en­tial Distri­bu­tion Boards
    • Commer­cial Distri­bu­tion Boards
    • Invicta - 125A-250A TP&N Boards
    • JKD250TMID
    EAN-Nr.
    5015652607458
    Packaging
    1 piece
    • Invicta - 125A-250A TP&N Boards

    250A Tripple Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side JKD250TMID

    Price
    £4,243.28
    / piece *
    £4,243.28
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    250A Tripple Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side

    JKD250TMID

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 8 products available

    Referenced by

    • JK21253M

      125A 3 Pole JK2 MCCB Incomer Kit
      £553.70  / piece*
    • JK22504M

      250A 4 Pole JK2 MCCB Incomer Kit
      £1,168.95  / piece*
    • JK22504D

      250A 4 Pole JK2 Direct Incomer Kit
      £89.58  / piece*
    • JK22503S

      250A 3 Pole JK2 Switch Incomer Kit
      £585.24  / piece*
    • JK22503M

      250A 3 Pole JK2 MCCB Incomer Kit
      £869.94  / piece*
    • JK21254M

      125A 4 Pole JK2 MCCB Incomer Kit
      £613.87  / piece*
    • JK21604C

      160A 4 Pole Contactor Incomer Kit
      £2,188.97  / piece*
    • JK22504MCS

      250A 4 Pole JK2 Switch Incomer Kit
      £931.02  / piece*

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Archi­tec­ture
    • Number of poles
      3
    Func­tions
    • Has protec­tion main switch
      Yes
    Elec­tric current
    • Rated current
      250 A
    Dimen­sions
    • Depth
      165.50 mm
    • Height
      625 mm
    • Width
      1,395 mm
    Cover, door
    • Inter­lock­able
      No
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • RAL code
      7035
    • Colour
      Light grey
    • Material
      Steel
    Connec­tion
    • Number of access­ible phases
      3
    Scope of delivery
    • Number of RCCB in enclosure
      0
    Equip­ment
    • With energy meter
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP30
    • Protec­tion class
      Isol­a­tion class I

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    125A 4 Way TPN Board c/w SD & SPD
    PDF
    17,17 MB
    Hager REACH declaration JKD250TMID
    PDF
    Hager RoHS report JKD250TMID
    PDF

    Downloads

    • Product image

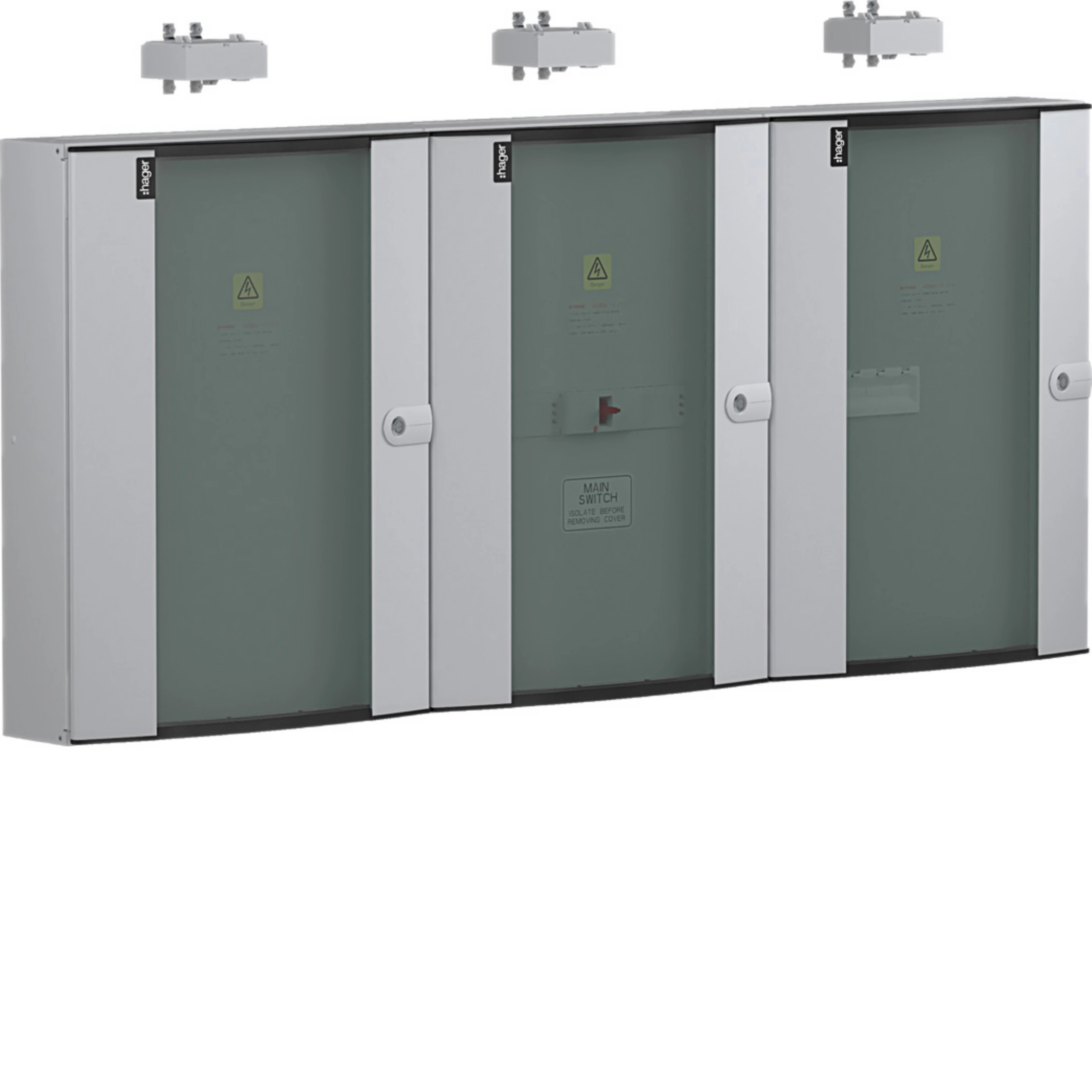

      Image JKD250TMID | Hager

      Product Image JKD250TMID

    • Product datasheet

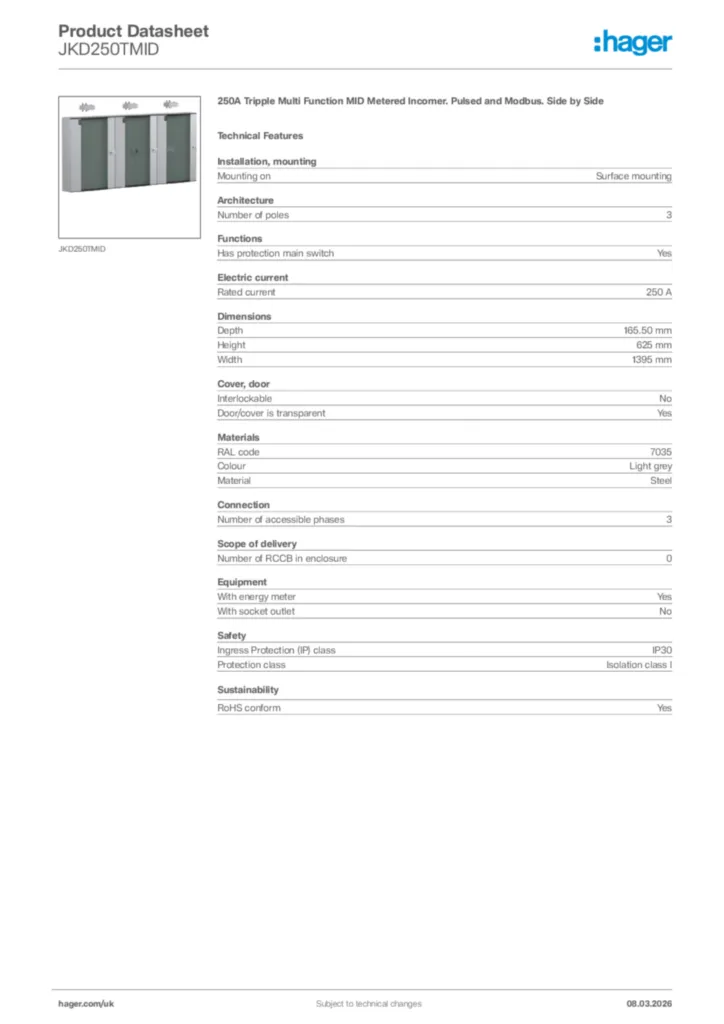

      Image Hager Product data sheet JKD250TMID | Hager

      Hager Product data sheet JKD250TMID

      250A Tripple Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2019-11-05 | Hager

      Instruction manual en-GB 2019-11-05

      Instruction manual en-GB 2023-03-16

      PDF
      37,43 MB

    • Installation manual

      Image Installation manual en-GB 2019-08-29 | Hager

      Installation manual en-GB 2019-08-29

      PDF
      628,19 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-07-12

      PDF
      129,23 kB
