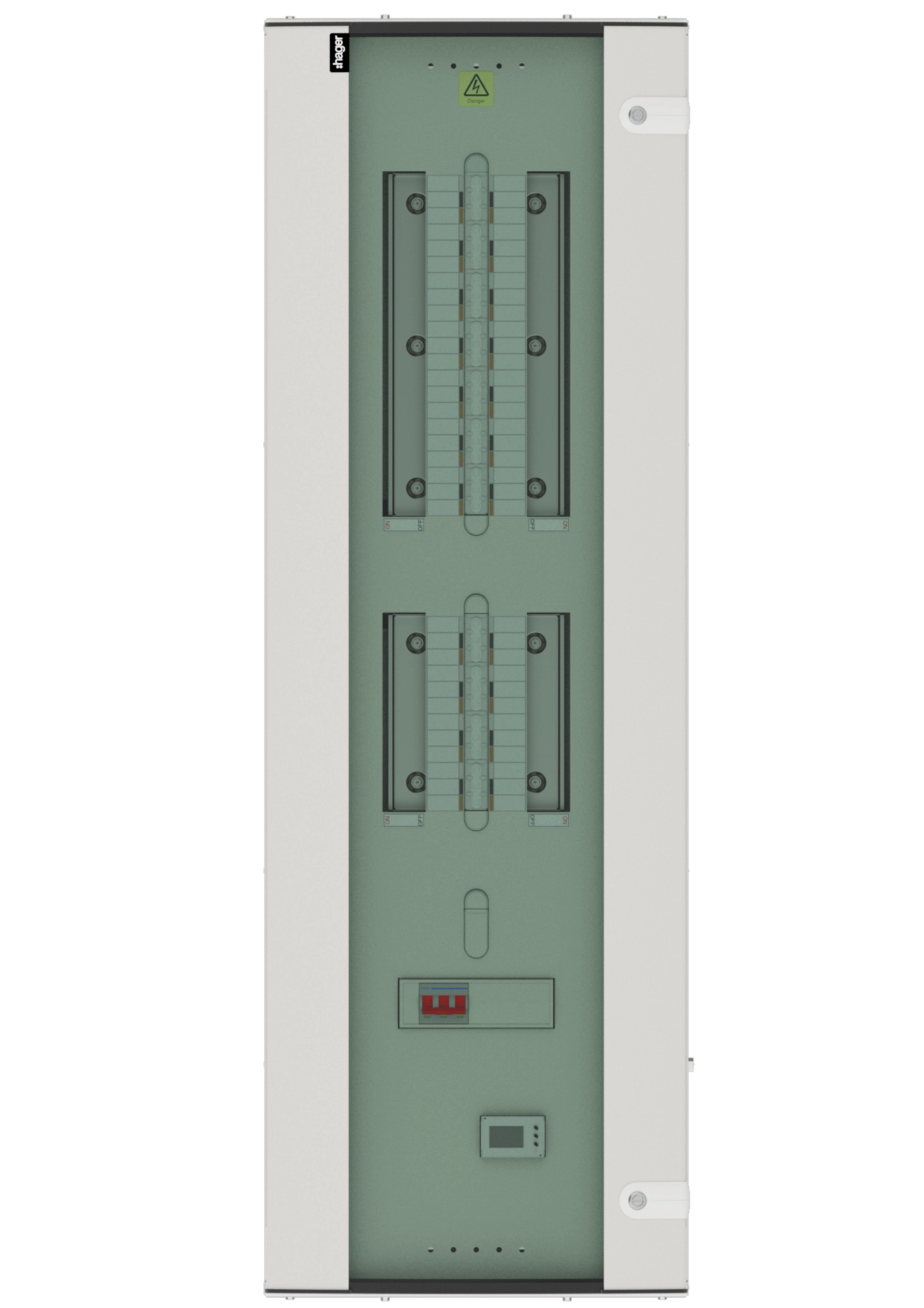

    The Hager 125A Power & Lighting Board with 8/14 pan assemblies and MID energy meter provides reliable 3‑phase (415 V) distribution and accurate billing. Featuring a protected main switch, 66‑module capacity, and a transparent door, it simplifies operation and expansion. Its robust light‑grey steel IP30, IK05 enclosure suits indoor commercial and light‑industrial power and lighting applications.
    EAN-Nr.
    3250610031308
    Packaging
    1 piece
    • Invicta - 125A-250A TP&N Boards

    Power & Lighting Board 125A 3P 415V MID metered 66M IP30 IK05 main switch JKD1814TM

    Price
    £4,508.02
    / piece *
    £4,508.02
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Power & Lighting Board 125A 3P 415V MID metered 66M IP30 IK05 main switch

    JKD1814TM

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    Archi­tec­ture
    • Number of poles
      3
    Func­tions
    • Has protec­tion main switch
      Yes
    Capa­city
    • Number of modules
      66
    Voltage
    • Nominal voltage
      415 - 415 V
    Elec­tric current
    • Rated current
      125 A
    Dimen­sions
    • Depth
      165.5 mm
    • Height
      1,400 mm
    • Width
      465 mm
    Cover, door
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • Colour
      Light grey
    • Material
      Steel
    Equip­ment
    • With energy meter
      Yes
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Protec­tion class
      Isol­a­tion class III

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    PEP - 125A 4 Way TPN Board c/w SD & SPD (English)
    PDF
    17,17 MB
    REACH declaration JKD1814TM
    PDF
    Hager RoHS report JKD1814TM
    PDF

    Downloads

    • Product image

      Image JKD1814TM | Hager

      Product Image JKD1814TM

    • Product datasheet

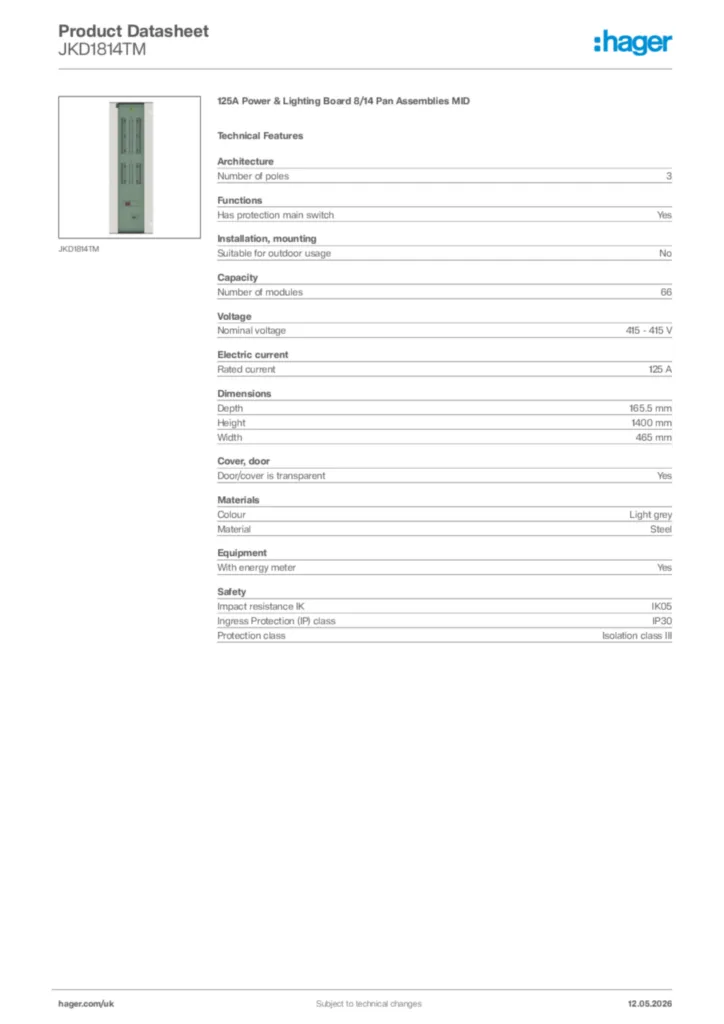

      Image Hager Product data sheet JKD1814TM | Hager

      Hager Product data sheet JKD1814TM

      125A Power & Lighting Board 8/14 Pan Assemblies MID

      PDF

    • Installation manual

      Image Installation manual en-GB 2016-04-26 | Hager

      Installation manual en-GB 2016-04-26

      PDF
      1,29 MB

    • Product data sheet

      Image Power & Lighting Board | Hager

      Power & Lighting Board

      Product data sheet en-GB 2020-08-26

      PDF
      912,73 kB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2024-08-28 | Hager

      Declaration of conformity en-GB 2024-08-28

      PDF
      250,79 kB
      Image Declaration of conformity en-GB 2024-08-28 | Hager

      Declaration of conformity en-GB 2024-08-28

      PDF
      252,05 kB
