    • JKD11111
    EAN-Nr.
    5015652602484
    Packaging
    1 piece
    • Invicta - 125A-250A TP&N Boards

    Dual Metered, Dual Row 22way 100A MID Pulsed, Modbus JKD11111

    Price
    £1,394.53
    / piece *
    £1,394.53
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Dual Metered, Dual Row 22way 100A MID Pulsed, Modbus

    JKD11111

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Archi­tec­ture
    • Number of poles
      2
    Func­tions
    • Has protec­tion main switch
      Yes
    Capa­city
    • Number of modules
      22
    Elec­tric current
    • Rated current
      100 A
    Dimen­sions
    • Depth
      125 mm
    • Height
      472 mm
    • Width
      398 mm
    Cover, door
    • Inter­lock­able
      No
    • Door/­cover is trans­parent
      No
    Mater­ials
    • RAL code
      7035, 9010
    • Colour
      Light grey
    • Material
      Steel
    Connec­tion
    • Number of access­ible phases
      2
    Scope of delivery
    • Number of RCCB in enclosure
      0
    Equip­ment
    • Number of rows
      2
    • With energy meter
      Yes
    • With socket outlet
      No
    Safety
    • Ingress Protec­tion (IP) class
      IP2XC

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    PEP - 125A 6 Way TPN Board with 4 pole SD & Type II SPD Glazed (english)
    PDF
    1,80 MB
    REACH declaration JKD11111
    PDF

    Downloads

    • Product image

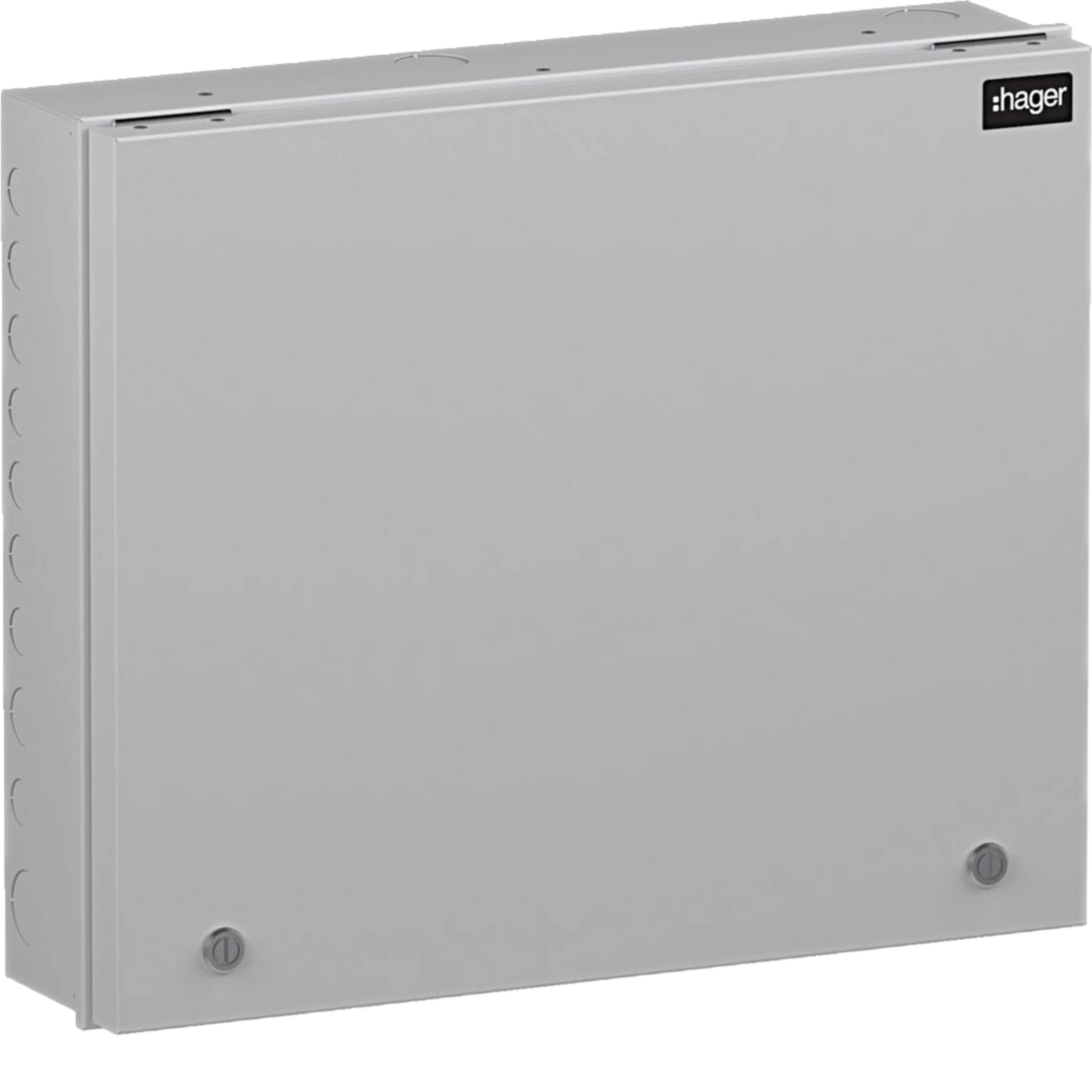

      Image JKD11111 | Hager

      Product Image JKD11111

    • Product datasheet

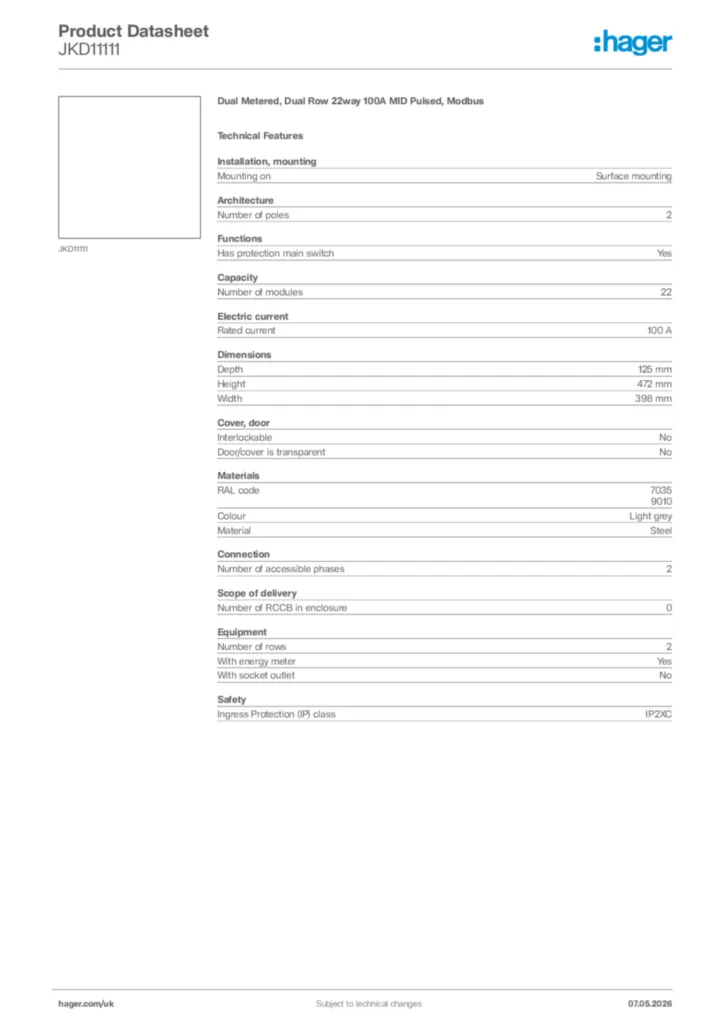

      Image Hager Product data sheet JKD11111 | Hager

      Hager Product data sheet JKD11111

      Dual Metered, Dual Row 22way 100A MID Pulsed, Modbus

      PDF

    • Installation manual

      Image UK_HAGER_INS_ZD0651 | Hager

      UK_HAGER_INS_ZD0651

      Installation manual en-GB 2018-08-01

      PDF
      500,98 kB

    • Product data sheet

      Image Product data sheet en-GB 2019-08-09 | Hager

      Product data sheet en-GB 2019-08-09

      PDF
      903,44 kB
      Image Product data sheet en-GB 2019-09-03 | Hager

      Product data sheet en-GB 2019-09-03

      PDF
      984,13 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-07-14

      PDF
      124,92 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      230,37 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      219,79 kB
