27 Way (13 + 14) Split Load A Board JK527H
EAN-Nr.
3250610439104
Packaging
1 piece
Price
£492.23
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 1 products available
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
Functions
-
Has protection main switchYes
Capacity
-
Number of modules28
Electric current
-
Rated current100 A
Dimensions
-
Depth125 mm
-
Height472 mm
-
Width397 mm
-
Number of width units28
Cover, door
-
InterlockableYes
-
Door/cover is transparentNo
Materials
-
RAL code7035
-
ColourLight grey
-
MaterialSteel
Connection
-
Number of accessible phases1
Scope of delivery
-
Number of RCCB in enclosure1
Equipment
-
Number of rows2
-
Number of rails2
Safety
-
Ingress Protection (IP) classIP2XC
-
Protection classIsolation class I
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
UK_HAGER_INS_ZD0651
Installation manual en-GB 2018-08-01
PDF500,98 kB -

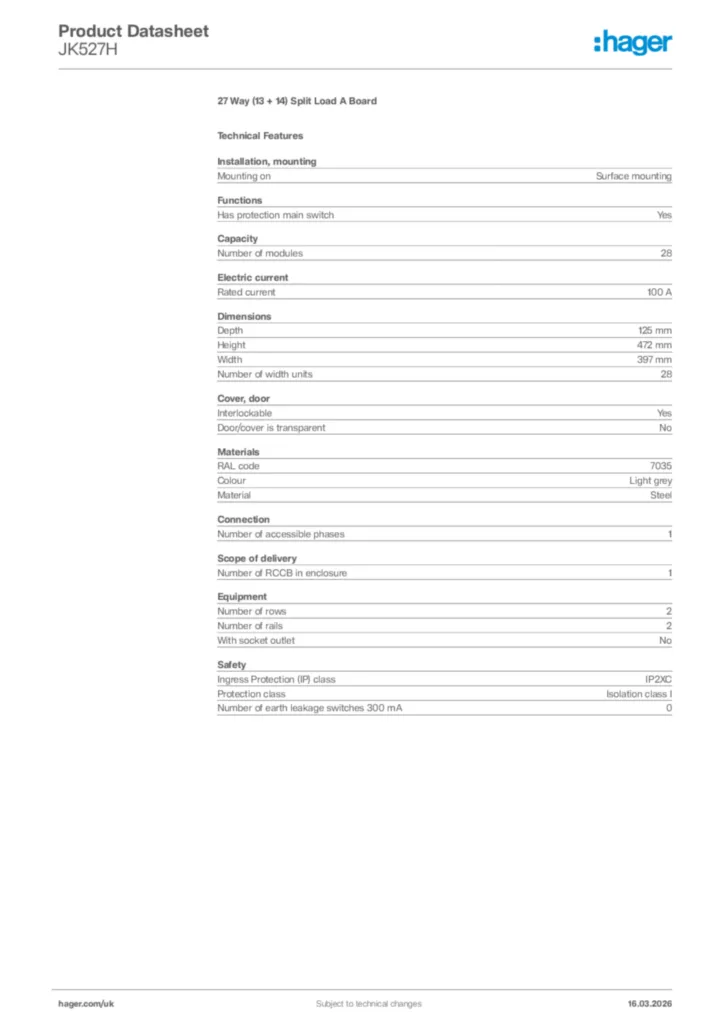

Product data sheet
UK_ED_TDS_AboardsDimensions.pdf
Technical data sheet including dimensions for A Boards.
PDF103,12 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-08
PDF180,42 kB
Declaration
Declaration of conformity International 2021-07-14
PDF177,63 kB
Declaration of conformity International 2023-12-20
PDF230,37 kB
Declaration of conformity International 2023-12-20
PDF219,79 kB
