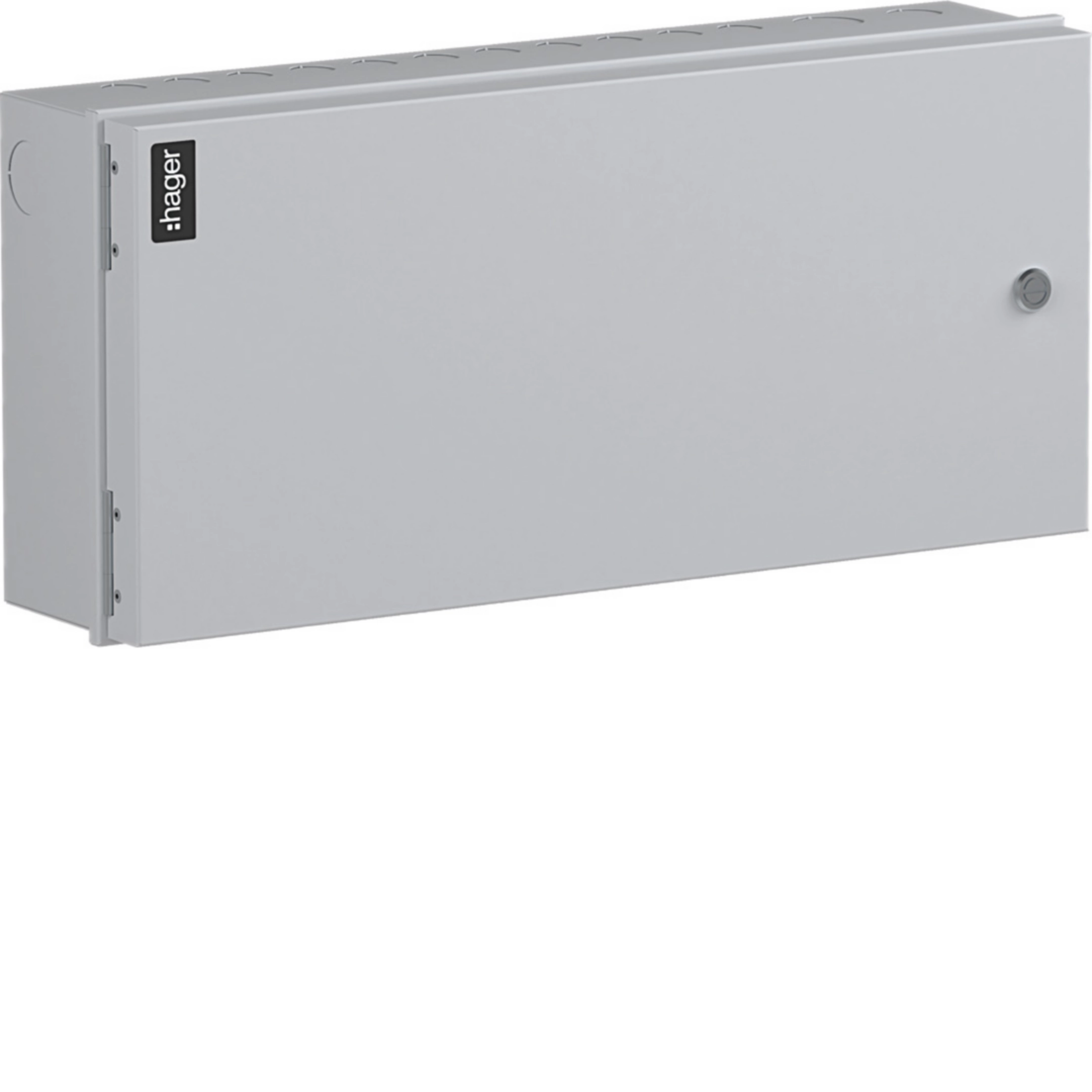

22 Mod DIN Rail Box Plain JK022

EAN-Nr.
3250610433386
Packaging
1 Prt.
Price
£224.17
/ piece *

Technical characteristics

Architecture
  • Fixing mode
    surface-mounting
Dimensions
  • Depth of installed product
    125 mm
  • Height of installed product
    236 mm
  • Width of installed product
    505 mm
Cover, door
  • Type of door closing
    Barrel lock
  • Door locking
    with key
Materials
  • Colour
    RAL 7035
  • Colour
    beige
  • RAL colour
    RAL 7035 - Light grey
  • Material
    Steel
Equipment
  • Number of rows
    1
Standards
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP30
  • Protection class
    isol.class I

Downloads

  • Product image

    Image JK022  | Hager

    Product Image JK022

  • Product notice

    Image Instruction manuals for JK022  | Hager

    Instruction manuals for JK022

    UK_HAGER_INS_ZD0651

    PDF
    500 KB
  • BIM models

    Image BIM models for JK022  | Hager

    BIM models for JK022

    Range : Type A SP&N Distribution Boards. Switchboard IP30 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

    RFA
    1 MB
    Image BIM models for JK022  | Hager

    BIM models for JK022

    UK_BIM_ABoards

    ZIP
    547 KB
    Image BIM models for JK022  | Hager

    BIM models for JK022

    UK_ABOARDS_BIM_DINRAILENC.ZIP

    ZIP
    577 KB
    Image BIM models for JK022  | Hager

    BIM models for JK022

    Range Typ.A SP&N DIN Rail Enclosures -Revit Family 2020 no hosted-V2021

    RFA
    1 MB
    Image BIM models for JK022  | Hager

    BIM models for JK022

    Range Typ.A SP&N DIN Rail Enclosures -Revit Family 2020 hosted-V2021

    RFA
    1 MB
    Image BIM models for JK022  | Hager

    BIM models for JK022

    Range : Type A SP&N Distribution Boards. Switchboard IP30 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    RFA
    1 MB

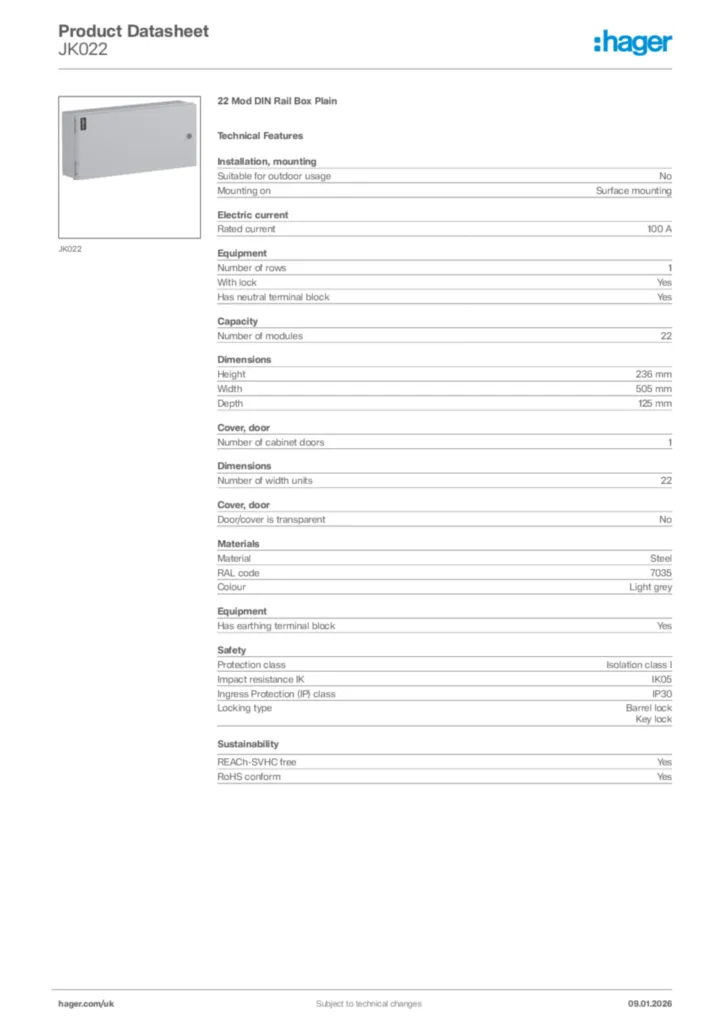

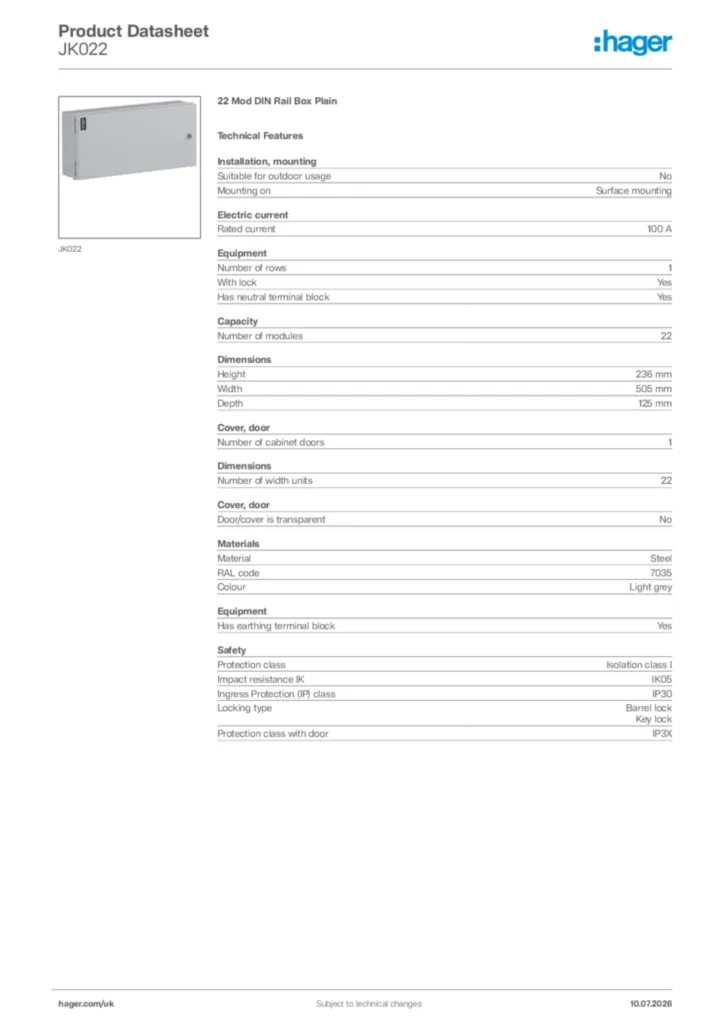

  • Product datasheet

    Image Product data sheets for JK022  | Hager

    Product data sheets for JK022

    UK_ED_TDS_AboardsDimensions.pdf

    PDF
    103 KB
  • Product declaration

    Image EU Declaration of conformity for JK022  | Hager

    EU Declaration of conformity for JK022

    Declaration

    PDF
    177 KB
More documentation
