Enclosed Fuse combin. switch TPSN 100A JFE410U
EAN-Nr.
3250613415952
Packaging
1 piece
Price
£1,156.52
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Electric current
-
Rated current63 A
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
Voltage
-
Rated insulation voltage Ui800 V
Safety
-
Ingress Protection (IP) classIP41
Fuse
-
Fuse sizeA4
Dimensions
-
Height400 mm
-
Width375 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Instruction manual
Instruction manual en-GB 2024-02-27
PDF17,50 MB -
Installation manual
notice interrupteurs sectionneurs fusibles sous coffret 20_800A
Installation manual en-GB, fr-FR 2020-01-01
PDF396,77 kB -

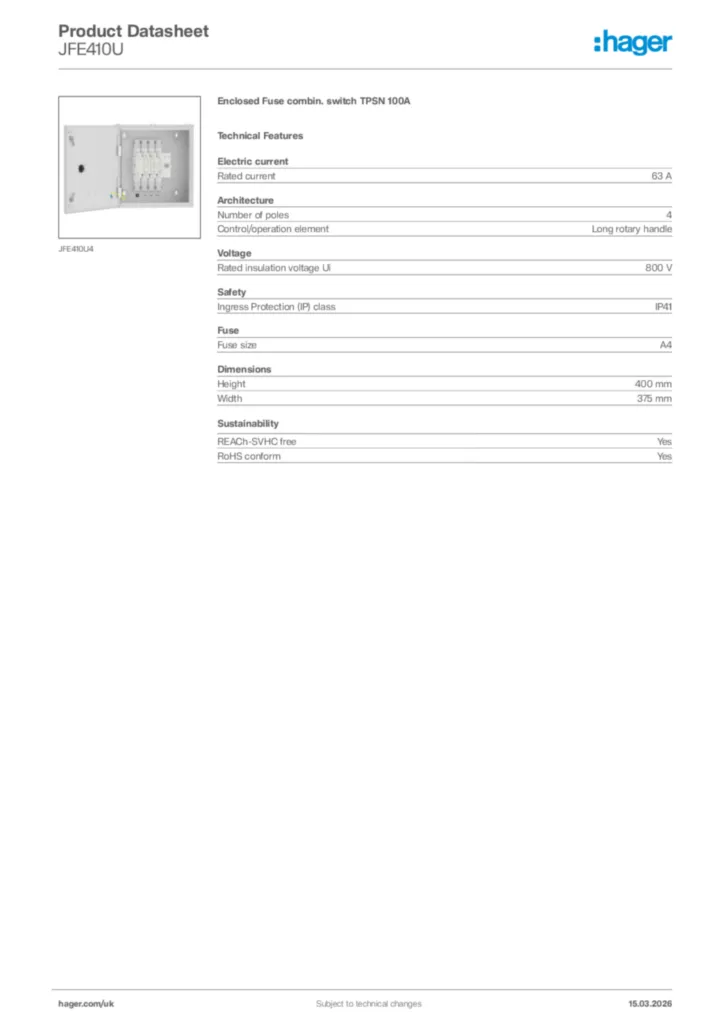

Product data sheet
UK_CD_TDS_BSEN60947-3
Product data sheet en-GB 2024-03-22
PDF55,57 kB
UK_HAGER_TDS_Fusecombinationswitches.pdf
Technical data sheet for fuse combination switches
PDF77,14 kB
UK_HAGER_TDS_FusecombinationswitchesDIMENSIONS.pdf
Technical data sheet including dimensions for fuse combinations switches and switch disconnectors.
PDF50,01 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-02-07
PDF836,40 kB
Declaration
Declaration of conformity International 2023-03-17
PDF495,64 kB
