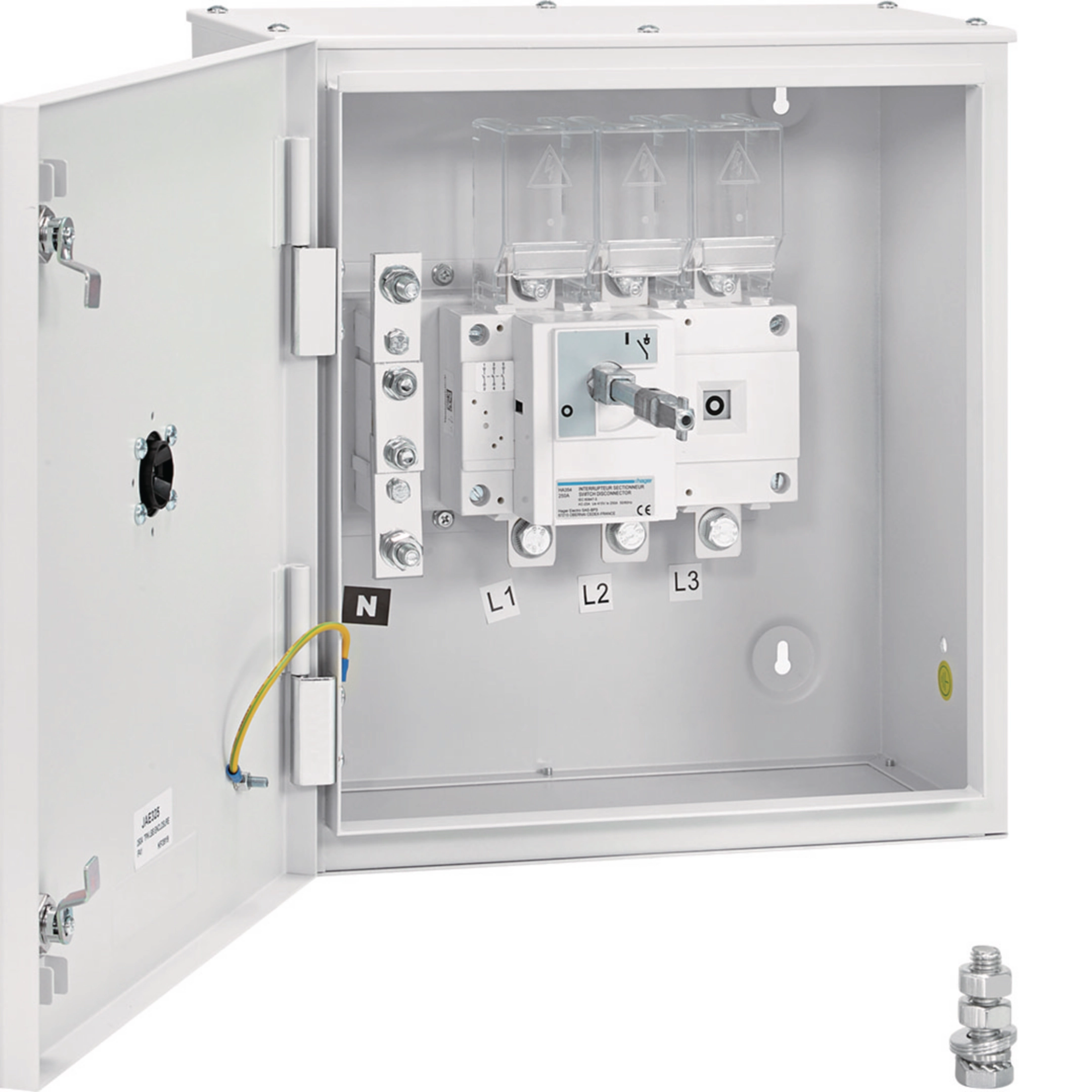

Enclosed LBS,250A,TPN,IP41 JAE325
EAN-Nr.
3250610101032
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Empty cabinet 1 products available
Technical characteristics
Electric current
-
Rated current250 A
-
Rated short-time withstand current Icw 1s IEC 609479 kA
Use conditions
-
Operating temperature-5 - +40 °C
Installation, mounting
-
Mounting onWall mounting
Frequency
-
Frequency50-60 Hz
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8 V
Safety
-
Ingress Protection (IP) classIP41
Dimensions
-
Height400 mm
-
Width375 mm
-
Depth200 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

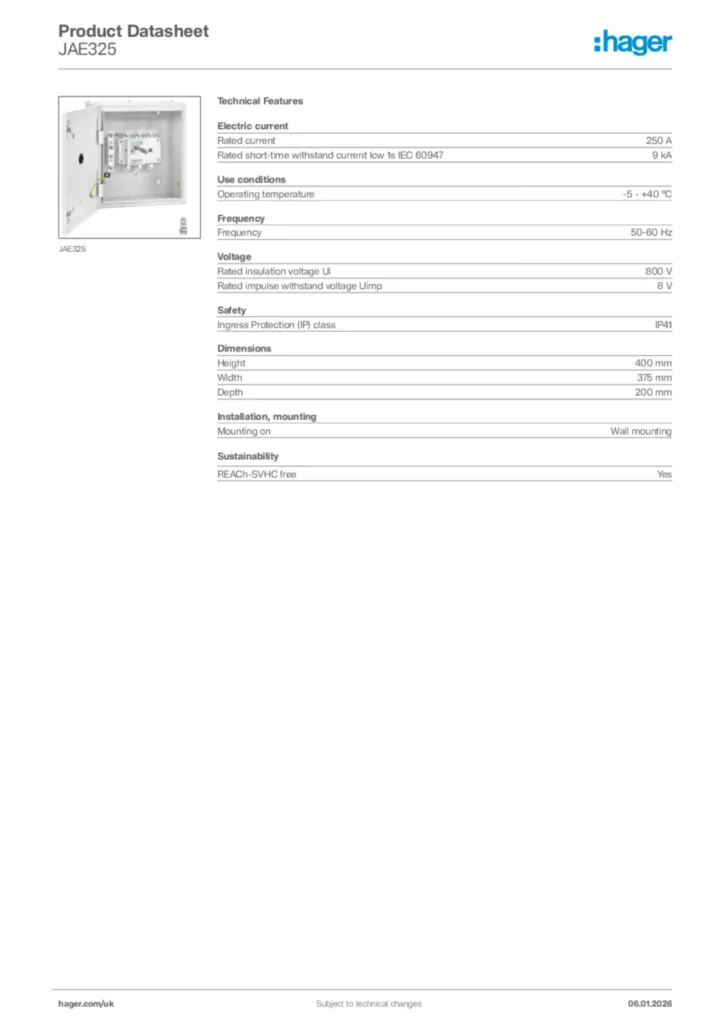

Hager Product data sheet JAE325
