Moulded Case Circuit Breaker h250 3P 50kA 125A TM HNG125U

Name: HNG125U
Brand: Hager
SKU: HNG125U1
Price: 1034.42 GBP

Price

£1,034.42

/ piece *

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Environmental value
Documentations

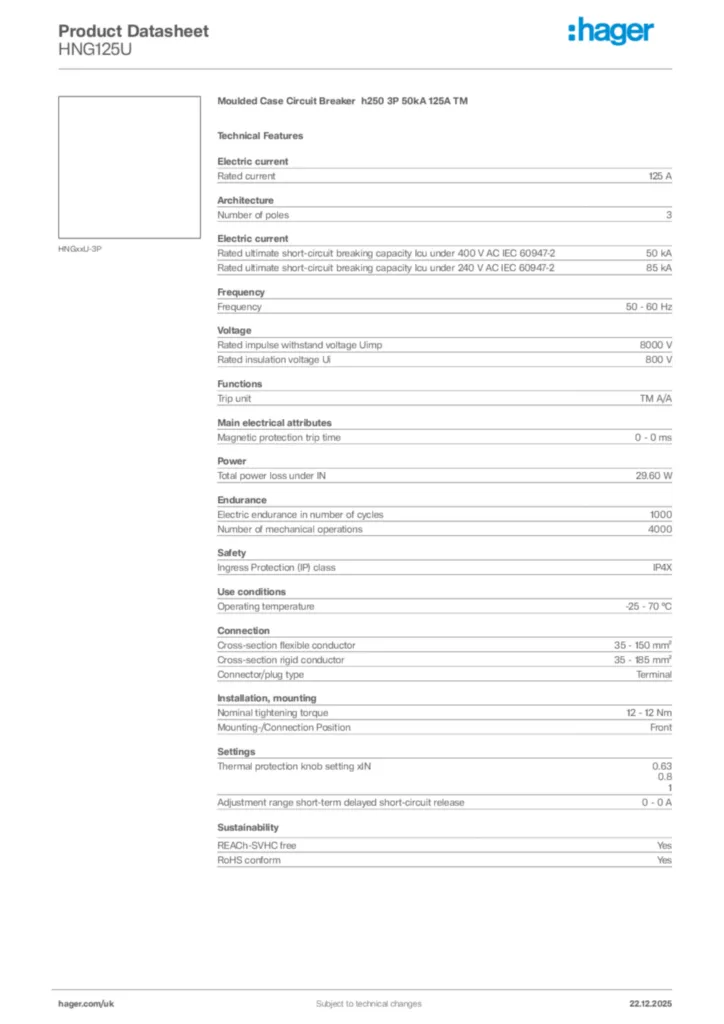

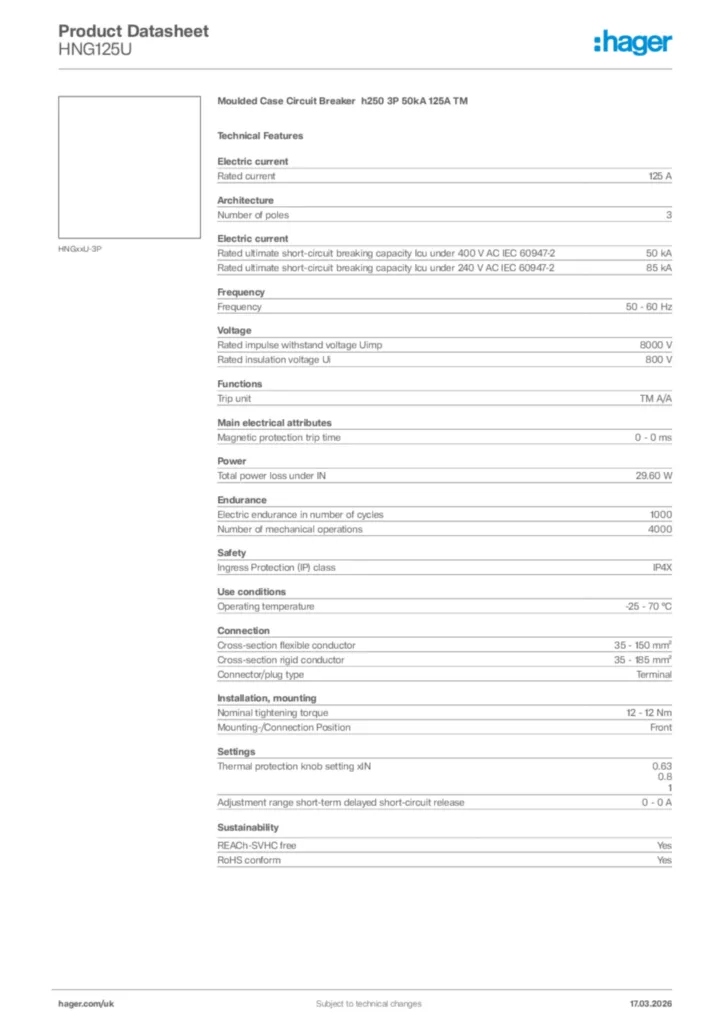

Download the sheet

Complete your system

Auxiliaries contact block 4 products available
Shunt release 5 products available
Auxiliaries interlocking cable 2 products available
Connection Functions 2 products available
Phase separation functions 1 products available
Under voltage coil 2 products available

Technical characteristics

Rated current

125 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA

Number of poles

3

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V

Trip unit

TM A/A

Magnetic protection trip time

0 - 0 ms

Total power loss under IN

29.60 W

Electric endurance in number of cycles

1,000
Number of mechanical operations

4,000

Ingress Protection (IP) class

IP4X

Operating temperature

-25 - 70 °C

Cross-section flexible conductor

35 - 150 mm²
Cross-section rigid conductor

35 - 185 mm²
Connector/plug type

Terminal

Nominal tightening torque

12 - 12 Nm
Mounting-/Connection Position

Front

Thermal protection knob setting xIN

0.63, 0.8, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

REACh-SVHC free Yes
