    • Home
    • Catalogue
    • HNG064U
    EAN-Nr.
    3250613248109
    Packaging
    1 piece

    Moulded Case Circuit Breaker h250 4P 50kA 63A TM HNG064U

    Price
    £966.58
    / piece *
    £966.58
    / piece *

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Moulded Case Circuit Breaker h250 4P 50kA 63A TM

    HNG064U

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Elec­tric current
    • Rated current
      63 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      50 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    Archi­tec­ture
    • Number of poles
      4
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8,000 V
    • Rated insu­la­tion voltage Ui
      800 V
    Func­tions
    • Trip unit
      TM A/A
    Main elec­trical attrib­utes
    • Magnetic protec­tion trip time
      0 - 0 ms
    Power
    • Total power loss under IN
      18 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      1,000
    • Number of mech­an­ical oper­a­tions
      4,000
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 70 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      35 - 150 mm²
    • Cross-sec­tion rigid conductor
      35 - 185 mm²
    • Connect­or/plug type
      Terminal
    Install­a­tion, mounting
    • Nominal tight­ening torque
      12 - 12 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Settings
    • Thermal protec­tion knob setting xIN
      0.63, 0.8, 1
    • Adjust­ment range short-term delayed short-­cir­cuit release
      0 - 0 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration HNG064U
    PDF
    Hager RoHS report HNG064U
    PDF

    Downloads

    • Product datasheet

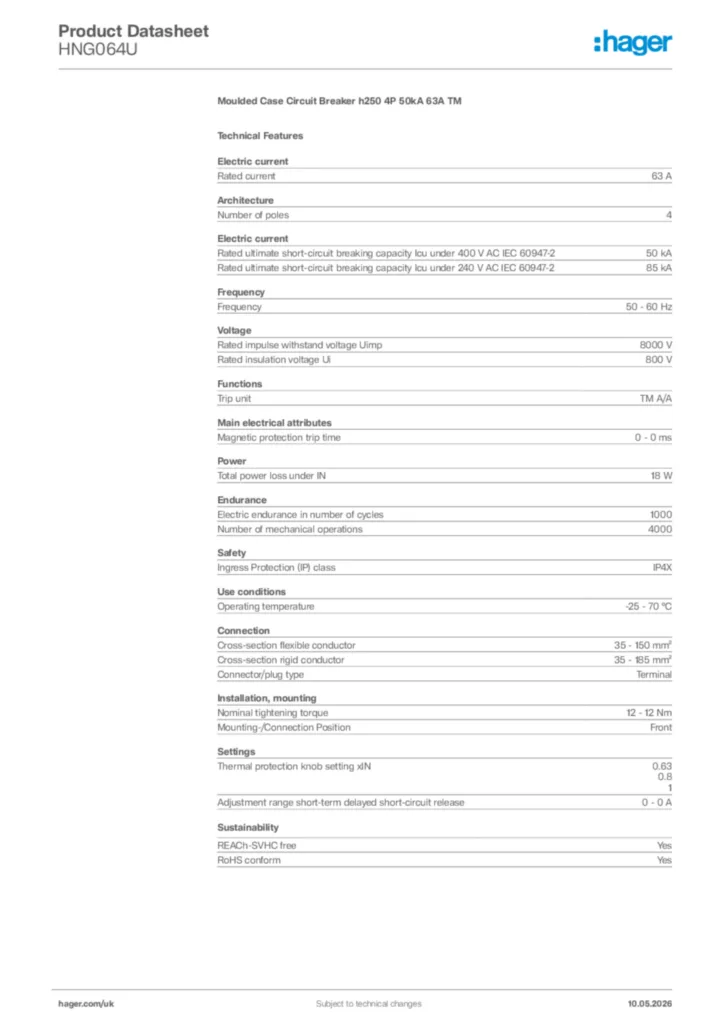

      Image Hager Product data sheet HNG064U | Hager

      Hager Product data sheet HNG064U

      Moulded Case Circuit Breaker h250 4P 50kA 63A TM

      PDF

    • Installation manual

      Image Installation manual International 2021-06-07 | Hager

      Installation manual International 2021-06-07

      PDF
      9,52 MB

    • Declaration of conformity

      Image MCCB h250 | Hager

      MCCB h250

      PDF
      360,91 kB
