Switch h630 4P 630A HCD631H
EAN-Nr.
3250613363154
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.
Complete your system
Optional accessories
-
Shunt release 5 products available -
Terminal cover 2 products available -
Padlock barrier for switch 1 products available -
Auxiliaries contact block 4 products available -
Handle for power circuit breaker 1 products available -
Phase separation functions 1 products available
Complete your system
-
HXC004H
Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
£207.06 / piece* -
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
£195.21 / piece* -
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
£197.02 / piece* -
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
£211.58 / piece* -
HXC001HShunt trip Release 24V DC (h250-h400-h630-h800-h1000)
£204.11 / piece*
-
HYD024H
Terminal cover H400-H630 4P spreader
£116.91 / piece* -
HYD022HTerminal cover h400-h630 4P long
£117.47 / piece*
-
HXD039H
Padlock h400-h1000
£34.77 / piece*
-
HXC026H
Alarm contact low level 1NO+1NC (h250-h400-h630-h800-h1000-h1600)
£148.92 / piece* -
HXC021HAuxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
£102.83 / piece* -
HXC025HAuxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)
£148.92 / piece* -
HXC024HAlarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
£122.72 / piece*
-
HXD031H
Extended rotary handle H400-H630
£240.30 / piece*
-
HYD019H
Interphase barrier (h400-h630-h800-h1000-h1600) 3/4P
£27.92 / piece*
-
HYD008HCollar terminal h400/h630 Al 4P 2x 95-240mm²
£741.06 / piece* -
HYD006HCollar terminal h400/h630 Al 4P 1x 95-240mm²
£484.57 / piece* -
HYD015HSpreader H630 4P collar
£151.60 / piece*
-
HXD042HMotor operator H400-H630 100-240VAC
£2,306.73 / piece*
-
HXC011HUndervoltage Release 24V DC (h250-h400-h630)
£176.77 / piece* -
HXC014HUndervoltage Release 200-240V AC (h250-h400-h630)
£185.68 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
Technical characteristics
Electric current
-
Rated current630 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor35 - 240 mm²
-
Cross-section flexible conductor35 - 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In50 W
-
Total power loss under IN150 W
-
Rated operational power under 400 V AC AC1414,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-
Product image
-
Product datasheet

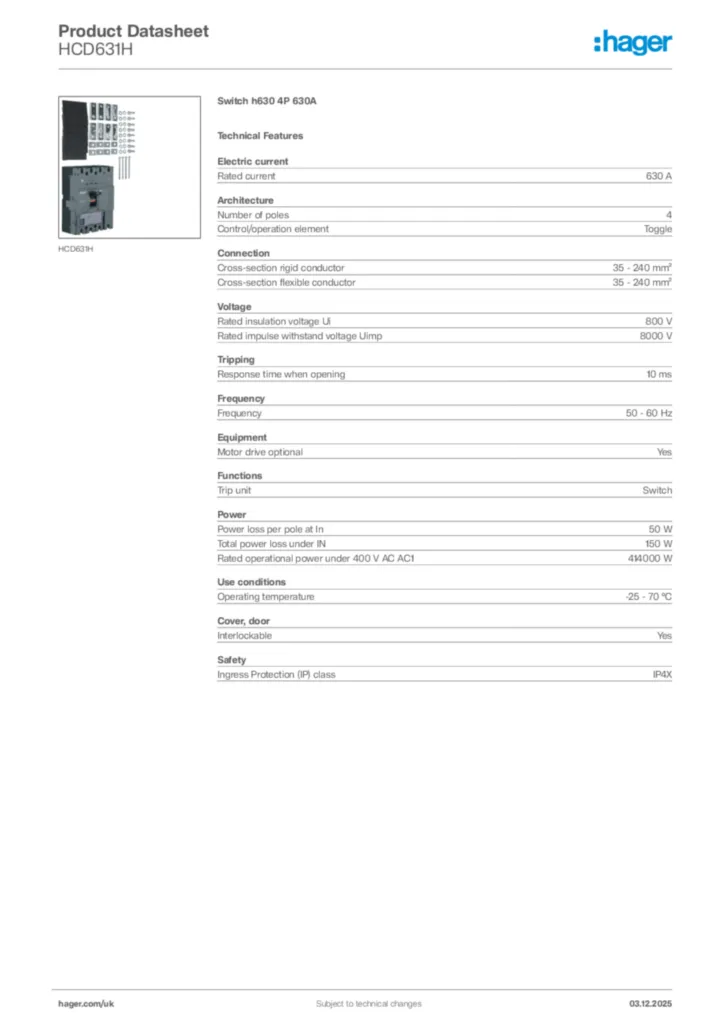

Hager Product data sheet HCD631H
Switch h630 4P 630A
PDF -
Installation manual
Installation manual International 2021-06-07
PDF7,13 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-21
PDF283,85 kB
