Mini-enclosure, gamma, 8 module, protect. class IP30, 1xPE GD108E
EAN-Nr.
3250612843237
Packaging
1 piece
Price
£25.08
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Push-in terminal 2 products available -
Door/operating panel 2 products available -
Cable entry sleeve 1 products available -
Lock system 1 products available -
Accessories/spare parts for terminals 1 products available -
Cover strip 2 products available
Complete your system
-
GZ04E
PE-terminal,minigamma,4 connections
£4.02 / piece* -
GZ04NN-terminal,minigamma,4 connections
£4.02 / piece*
-
GP108P
Door for mini-enclosure, gamma, 8 module, white
£8.06 / piece* -
GP108TDoor,mini distributor,8M, transparent
£10.06 / piece*
-
VZ313
Door key,gamma,for door of the mini-enclosure,GD
£31.06 / piece*
-
GZ108S
Terminal supports,gamma,for mini-enclosure 8 module
£4.02 / piece*
-
P031F
Cover strips, universal, for 1/2 module
£1.87 / piece* -
P032FCover strips, universal, for 1 module
£1.89 / piece*
Technical characteristics
Voltage
-
Nominal voltage230 - 230 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules8
Functions
-
Has protection main switchNo
-
With conduit inletsYes
Dimensions
-
Height180 mm
-
Width182 mm
-
Depth82 mm
-
Number of width units8
Cover, door
-
Number of locks0
-
Door/cover is transparentNo
Connectivity
-
Mounting typeScrew mounting
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
-
Glow wire test750 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Installation manual International 2020-01-01
PDF2,01 MB
UK_HAGER_INS_IPRATINGS.pdf
IP Rating Guidance
PDF356,09 kB -
BIM Revit objects
Range : Mini gamma. Switchboard IP30 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,61 MB
Range : Mini gamma. Switchboard IP30 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,22 MB
Range mini gamma enclosures for UK (Lang. : en) IP30 with installation System hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,22 MB
Range mini gamma enclosures for UK (Lang. : en) IP30 with installation System no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,21 MB -

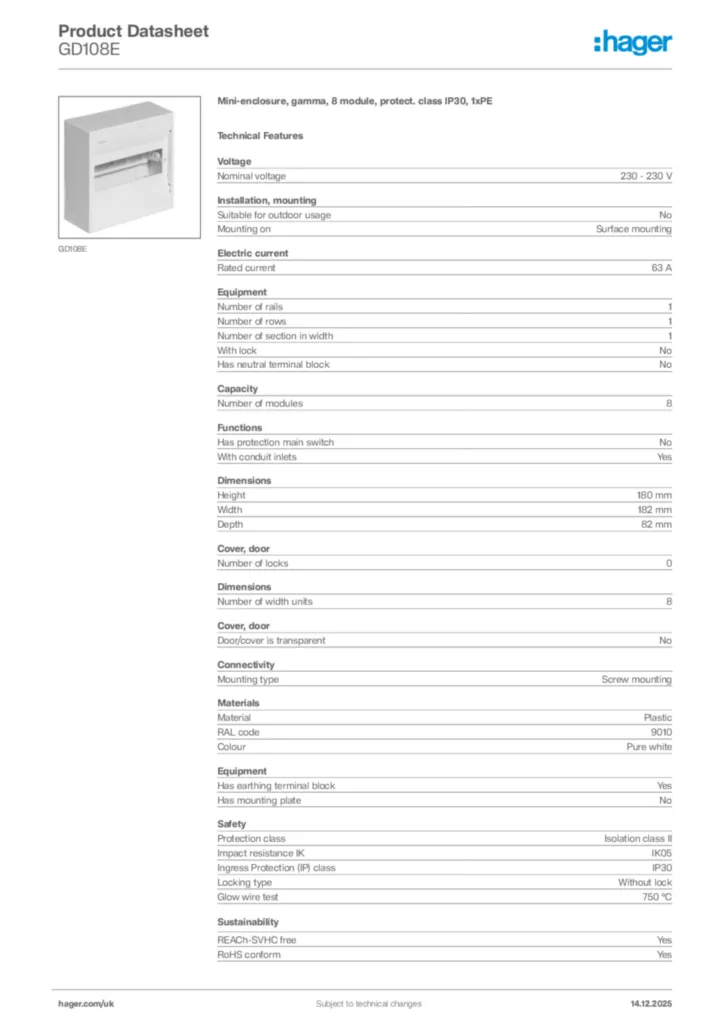

Product data sheet
UK_ENC_TDS_MinigammaandVectordimensions.pdf
Technical Data sheet with dimensions for Mini Gamma and Vector II products.
PDF94,78 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-14
PDF824,09 kB
Declaration of conformity en-GB 2024-04-15
PDF174,16 kB
More documentation
