FWB encl. univers,4-rows 96 modules cl.II IP44 w.plain door, 650x550x161mm,QC FWB42S
EAN-Nr.
3250612735686
Packaging
1 piece
Price
£440.82
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Dimensions
-
Depth of installed product165 mm
-
Height of installed product650 mm
-
Width of installed product550 mm
Cover, door
-
Type of door closinghinged pattern handle
-
Door lockingwithout
Materials
-
Colourwhite
-
RAL colourRAL 9010 - Pure white
-
Materialsheet steel
Equipment
-
Number of rows4
-
Quantity of section in width2
-
Can be accessorizedYes
Safety
-
Protection index IPIP44
-
Protection classisol.class II
Downloads
-

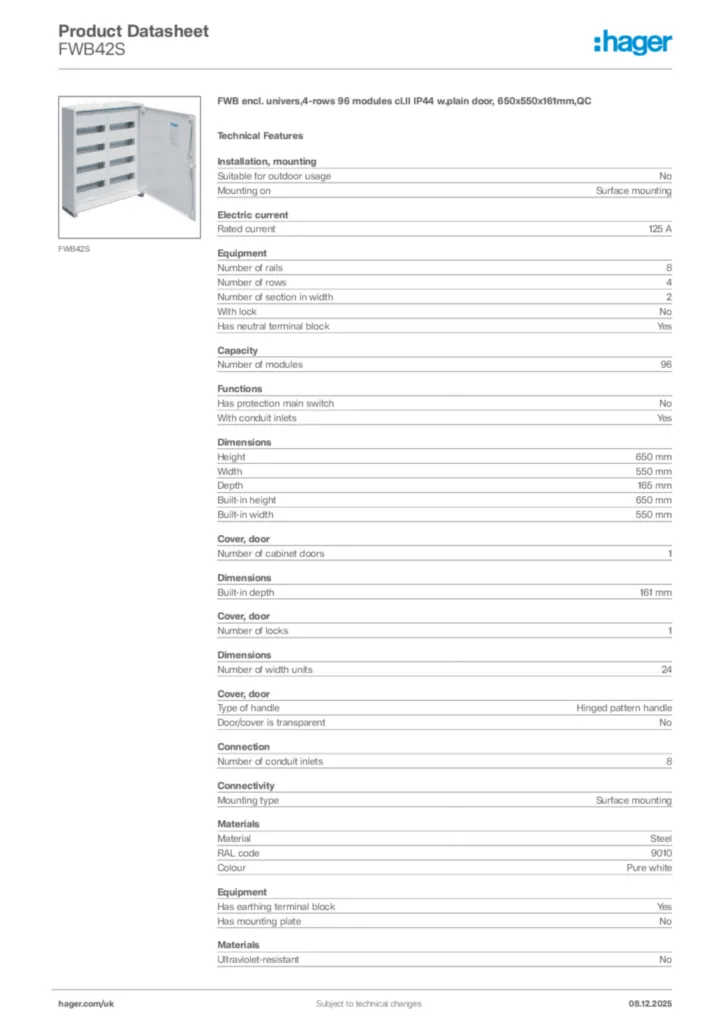

Product image
-
Instruction manual
Instruction manuals for FWB42S
Montageanleitung Klemmenträger
PDF608 KB
Instruction manuals for FWB42S
Schrank ohne QuickSet-Rahmen - IP44 & IP54 -- SKII
PDF1 MB -
Installation manual
Installation manuals for FWB42S
PDF673 KB
Installation manuals for FWB42S
PDF3 MB -
Installation handbook
Installation handbooks for FWB42S
Handbook en-GB 2023-03-30
PDF23 MB -
BIM Revit objects
BIM models for FWB42S
Range Univers enclosures for UK (Lang. : en) IP44 with installation System no hosted-V2021
RFA1 MB
BIM models for FWB42S
Range Univers enclosures for UK (Lang. : en) IP44 with installation System surface mounted hosted-V2021
RFA1 MB
BIM models for FWB42S
Range : Univers. Surface mounted switchboard IP44 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
RFA1 MB
BIM models for FWB42S
Range Univers enclosures for UK (Lang. : en) IP44 with installation System surface mounted no hosted-V2021
RFA1 MB
BIM models for FWB42S
Range : Univers. Recessed mounted switchboard IP44 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
RFA1 MB
BIM models for FWB42S
Range Univers enclosures for UK (Lang. : en) IP44 with installation System hosted-V2021
RFA1 MB
BIM models for FWB42S
Range : Univers. Surface mounted switchboard IP44 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
RFA1 MB
BIM models for FWB42S
Range : Univers. Recessed mounted switchboard IP44 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
RFA1 MB -
Declaration of conformity
EU Declaration of conformity for FWB42S
Declaration
PDF332 KB
EU Declaration of conformity for FWB42S
Declaration
PDF143 KB
EU Declaration of conformity for FWB42S
Declaration
PDF1 MB -
RoHS report
Pollutant guidelines for FWB42S
REACH-declaration 2023-10-20 (english)
PDF33 KB
Pollutant guidelines for FWB42S
RoHS-declaration 2023-10-20 (english)
PDF33 KB
