FWB encl.,univers,4rows 48 mod cl.II IP44,plain door,650x300x161mm,brass term. FWB42
EAN-Nr.
3250612735884
Packaging
1 piece
Price
£470.26
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Feed-through terminal block 1 products available -
Labelling material 2 products available -
Accessories/spare parts for terminals 1 products available
Complete your system
-
UZ005
Identifer stripe, universN, for device slot, 12 pieces
£20.71 / piece* -
UZ006Paper strips, universN, 5 sheets (60strips)
£18.44 / piece*
-
KN00A
Terminal carrier, QC, universal adapter
£9.97 / piece*
Technical characteristics
Connection
-
Number of conduit inlets8
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current125 A
Equipment
-
Number of rails8
-
Number of rows4
-
Number of section in width2
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules96
Functions
-
Has protection main switchNo
-
With conduit inletsYes
Dimensions
-
Height650 mm
-
Width550 mm
-
Depth165 mm
-
Built-in depth161 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Type of handleHinged pattern handle
-
Door/cover is transparentNo
Connectivity
-
Mounting typeSurface mounting
Materials
-
MaterialSteel
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK09
-
Ingress Protection (IP) classIP44
-
Locking typeWithout lock
-
Glow wire test750 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

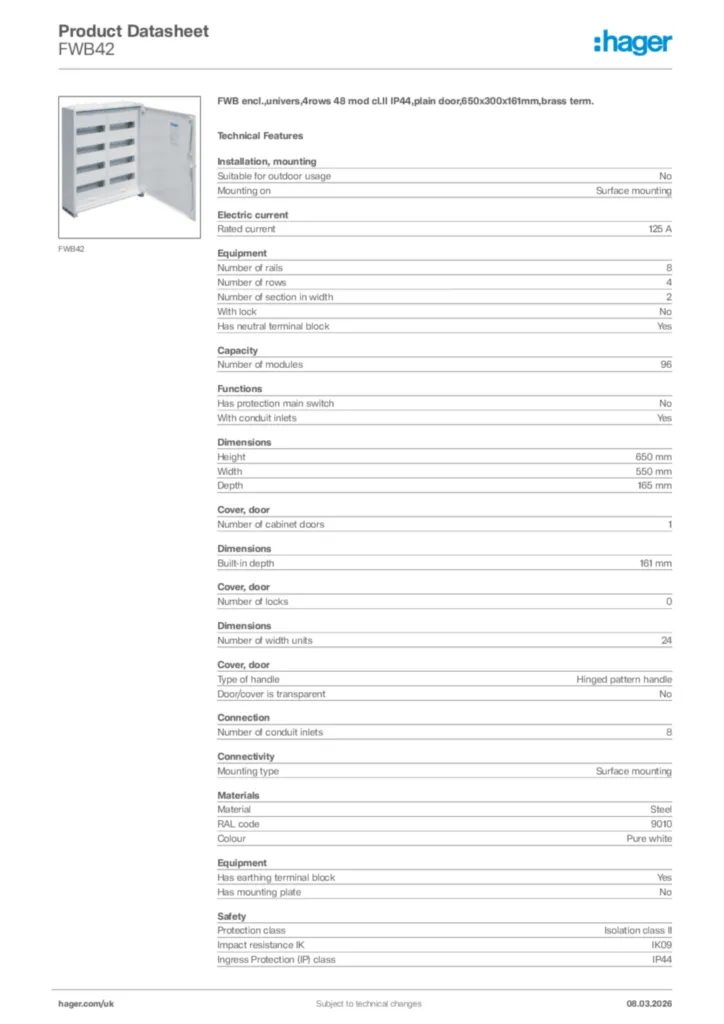

Product datasheet
