EVN004

Remote Control Dimmer universal 500W
EAN
3250617573979
Quantity
1
Trade price*
£226.75 /prt.*
  • Architecture
    • Fixing mode
      Din-Rail
  • Main electrical features
    • Rated operational voltage Ue
      230 V
    • Frequency
      50;60 Hz
  • Voltage
    • Supply voltage
      230V +10% ; -15%
  • Fuse
    • Fuse
      with electronic short-circuit and overload protection
  • Dimensions
    • Depth of installed product
      62 mm
    • Height of installed product
      85 mm
    • Width of installed product
      35 mm
  • Power
    • Halogen switching capacity 230V
      500 W
    • Power consumed
      4.5 W
    • Power consumption (operation)
      4.5 W
    • Incandescent bulb power
      500 W
    • Total power loss under IN
      0.2 W
  • Capacity
    • Number of modules
      2
  • Materials
    • RAL colour
      RAL 9001 - Cream
    • Surface appearance
      matt
  • LED control
    • Lighting power LED lamps
      100 W
  • Incandescent bulbs control
    • Max. power with incandescent lamps
      500 W
  • Installation, mounting
    • Mounting type
      din-Rail
  • Connection
    • Connection cross-sect. flexible conductor
      1 ; 6mm²
    • Connection cross-sect. rigid cable
      1 ; 6mm²
    • Type of load
      universal
    • Type of connection
      with screw
    • Type of connection
      with screw terminals
  • Settings
    • Setting
      setting of comfort functions (1...4) via adjusting wheel ; Reset of settings for special functions
  • Equipment
    • Dimming principle
      automatic load detection
  • Safety
    • Protection index IP
      IP20
  • Use conditions
    • Operating temperature
      -20/50 °C
    • Storage temperature
      -20/50 °C
  • Temperature
    • Operating temperature
      -20/50 °C
Documentations

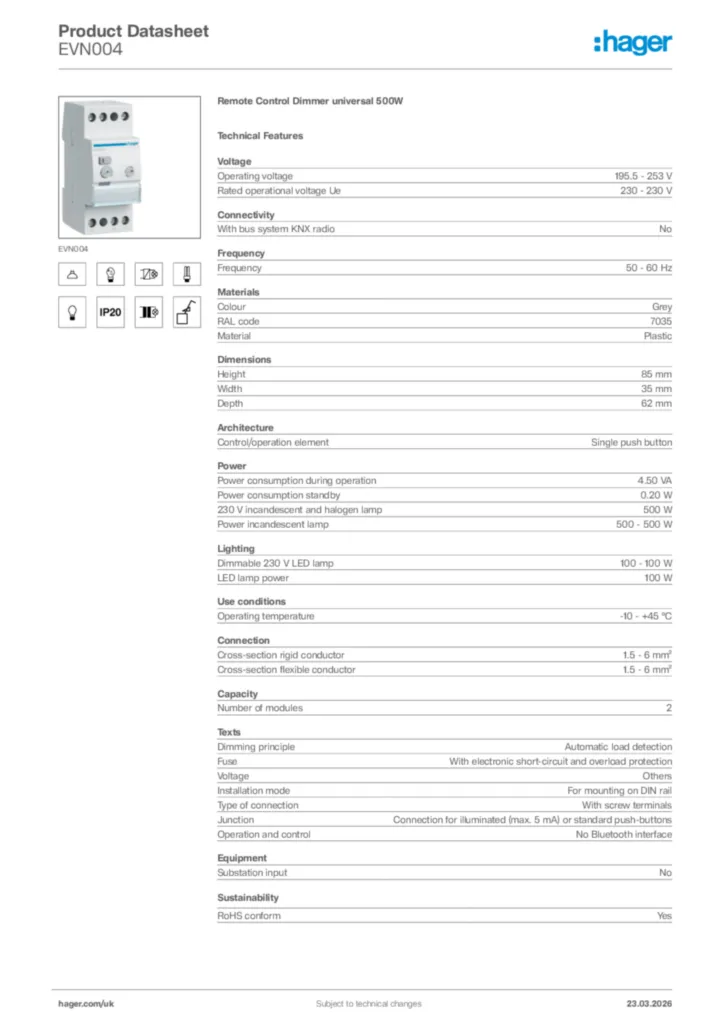

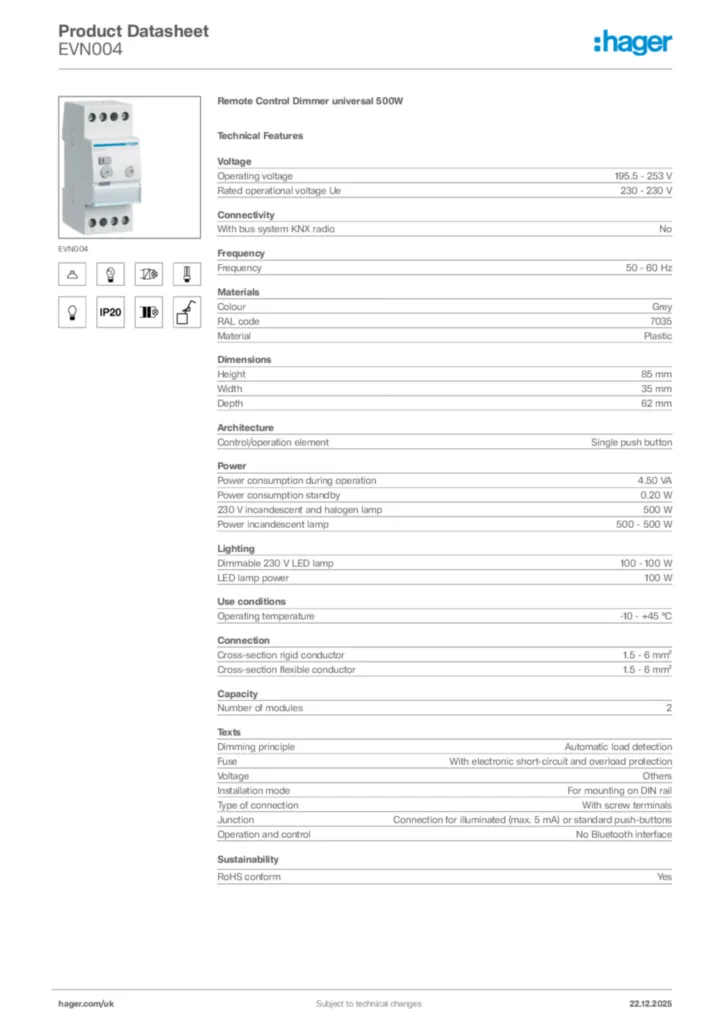

Product environmental profile for EVN004 312 kbpdfDownload
Instruction manuals for EVN004 1310 kbpdfDownload
