Current Transformer with RJ45 output BGUK 3-Phase 800A/330mV Class 1 pitch 70mm EC80800CT

EAN-Nr.
3250617121231
Packaging
1 piece
Price
£148.83
/ piece *
£148.83
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Current Transformer with RJ45 output BGUK 3-Phase 800A/330mV Class 1 pitch 70mm

EC80800CT

  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Technical characteristics

Specific iden­ti­ficaton attrib­utes for Protec­tion
  • Filter Type product
    3-phase current trans­former replace­ment
Func­tions
  • Accuracy class
    1
Dimen­sions
  • Height
    124 mm
  • Width
    215 mm
  • Depth
    54 mm
  • Height of opening
    50 mm
  • Width of opening
    50 mm
Connectivity
  • Type of connec­tion
    Plug-in connec­tion
Frequency
  • Frequency
    50 - 50 Hz
Voltage
  • Rated insu­la­tion voltage Ui
    3,000 V
Use condi­tions
  • Oper­ating temper­ature
    -25 - 50 °C
  • Stor­age/trans­port temper­ature
    -40 - 85 °C
Elec­tric current
  • Max. intensity of primary
    800 A
Install­a­tion, mounting
  • Mounting on
    Busbar, Cable

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration EC80800CT
PDF
Hager RoHS report EC80800CT
PDF

Downloads

  • Product image

    Image EC80800CT | Hager

    Product Image EC80800CT

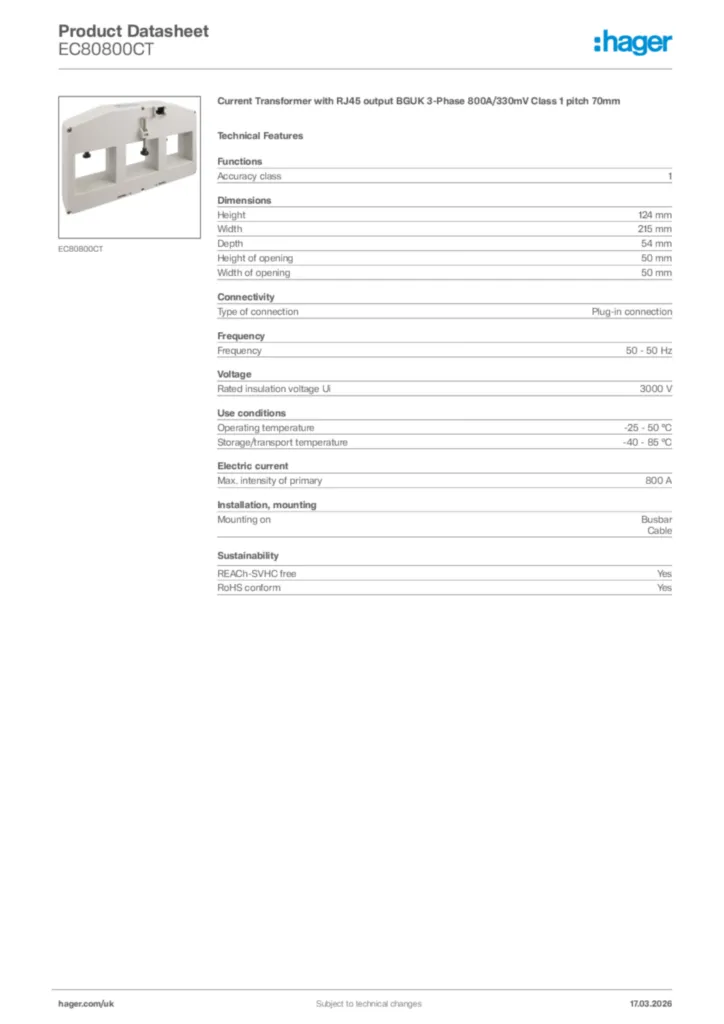

  • Product datasheet

    Image Hager Product data sheet EC80800CT | Hager

    Hager Product data sheet EC80800CT

    Current Transformer with RJ45 output BGUK 3-Phase 800A/330mV Class 1 pitch 70mm

    PDF

  • Installation manual

    Image Installation manual en-GB 2018-08-24 | Hager

    Installation manual en-GB 2018-08-24

    PDF
    2,34 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    142,96 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    132,32 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-06-07

    PDF
    446,57 kB
