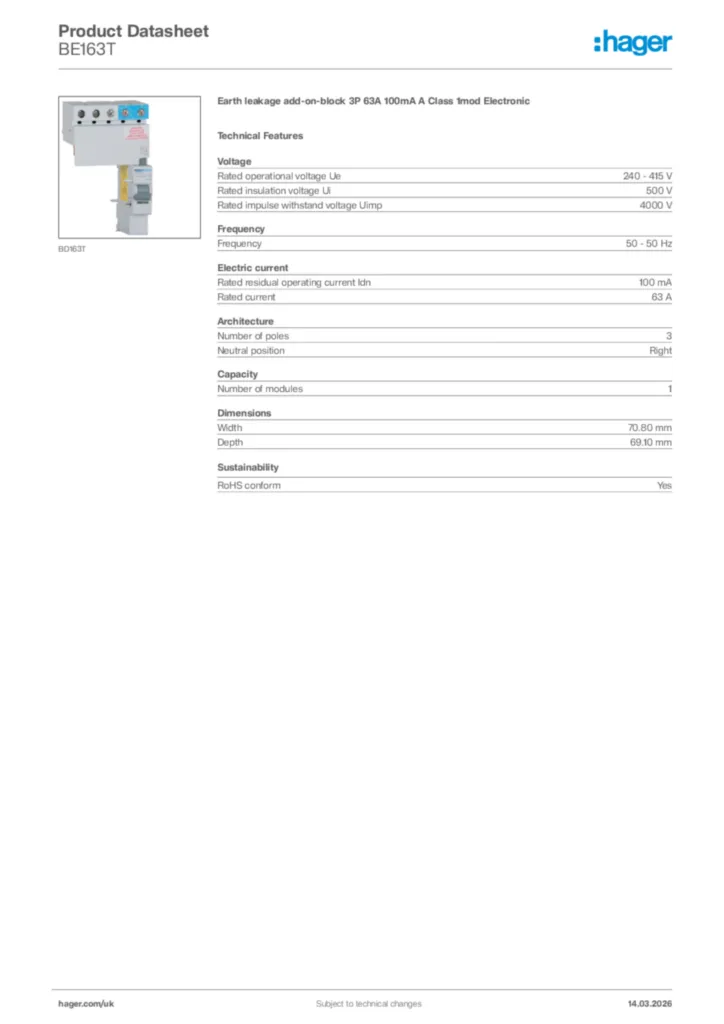

Earth leakage add-on-block 3P 63A 100mA A Class 1mod Electronic BE163T
EAN-Nr.
3250611344889
Packaging
1 piece
Price
£561.78
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles3 P
Main electrical features
-
Rated operational voltage Ue240 / 415 V
-
Frequency50 Hz
Voltage
-
Rated insulation voltage500 V
-
Rated impulse withstand voltage4000 V
Electric current
-
Rated residual operating current100 mA
Power
-
Total power loss under IN3.2 W
Tripping
-
Short-time delayed trippingNo
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations1000
Installation, mounting
-
Tightening torque3,5Nm
Connection
-
Connection cross-sect. flexible conductor16mm²
-
Connection cross-sect. rigid cable25mm²
Safety
-
Residual current typeA
Use conditions
-
Operating temperature-5…40 °C
