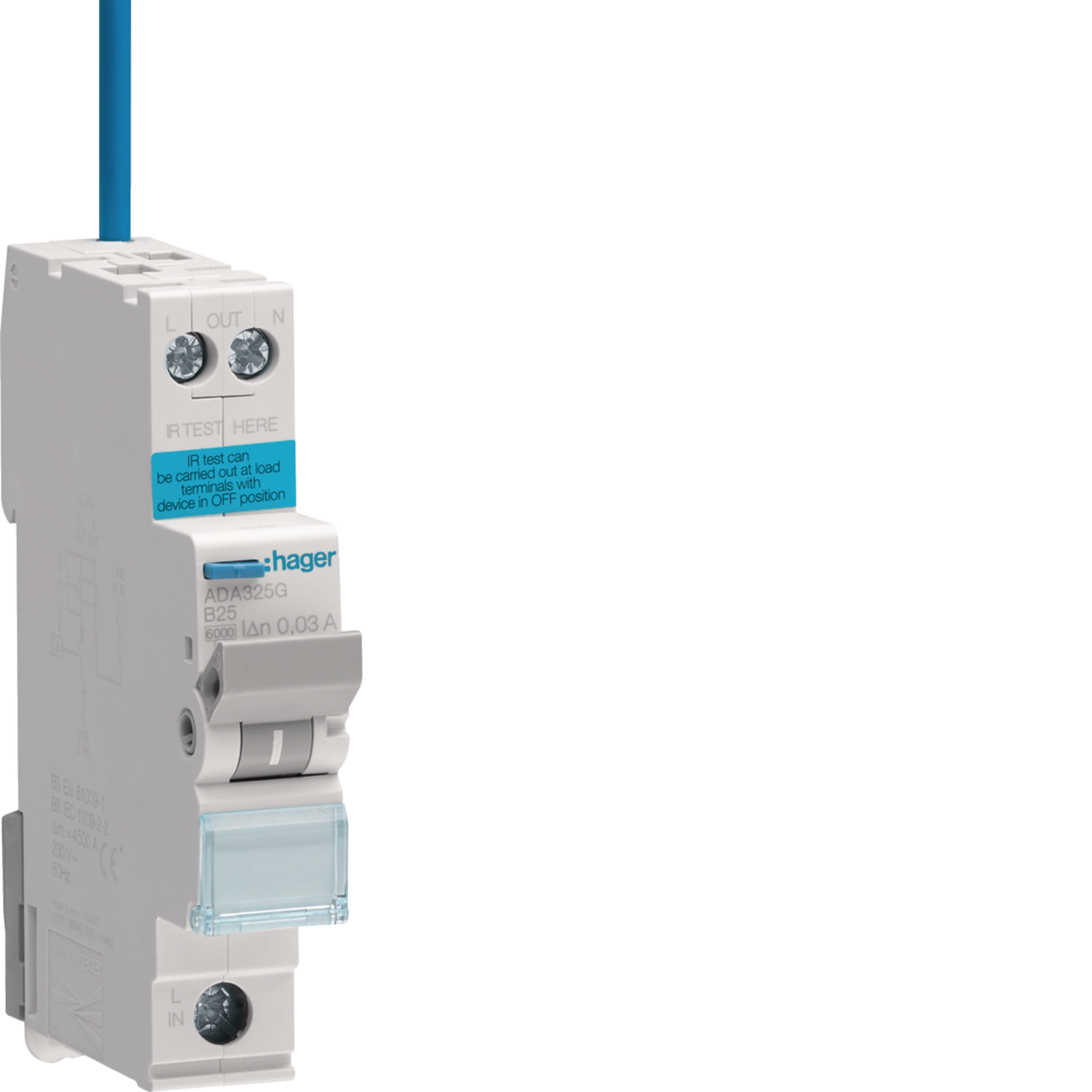

ADA325G

RCBO Electronic 1P 6kA B Curve -25A, 30mA Type A(AC & Pulsating DC Sensitive)1M
EAN
3250611013006
Quantity
1
Trade price*
£105.15 /prt.*
  • Architecture
    • Neutral position
      • right
    • Number of poles
      • 1 P
    • Type of pole
      • 1 P
    • Fixing mode
      • DIN rail type O (symmetrical)
    • Curve
      • B
  • Main electrical features
    • Rated operational voltage Ue
      • 230 V
    • Frequency
      • 50 Hz
    • Rated current
      • 25 A
    • Type of supply voltage
      • AC
  • Voltage
    • Rated insulation voltage
      • 250 V
    • Max operating voltage
      • 253 V
    • Rated impulse withstand voltage
      • 4000 V
  • Electric current
    • Rated residual operating current
      • 30 mA
    • Breaking and opening capacity
      • 4.5 kA
  • Electric current / temperature
    • Rating current 30°C
      • 25 A
  • Dimensions
    • Depth of installed product
      • 70 mm
    • Height of installed product
      • 92 mm
    • Width of installed product
      • 17.7 mm
  • Power
    • Total power loss under IN
      • 5.91 W
  • Endurance
    • Electric endurance in number of cycles
      • 16000
    • Number of mechanical operations
      • 20000
  • Capacity
    • Number of modules
      • 1
  • Equipment
    • Quick connect
      • no
  • Standards
    • Standard text
      • EN 61009-1
      • IEC 61009-2-2
    • European directive WEEE
      • concerned
  • Safety
    • Protection index IP
      • IP20
    • Residual current type
      • A
Documentations
Product environmental profile for ADA325G 439 KBPDFDownload

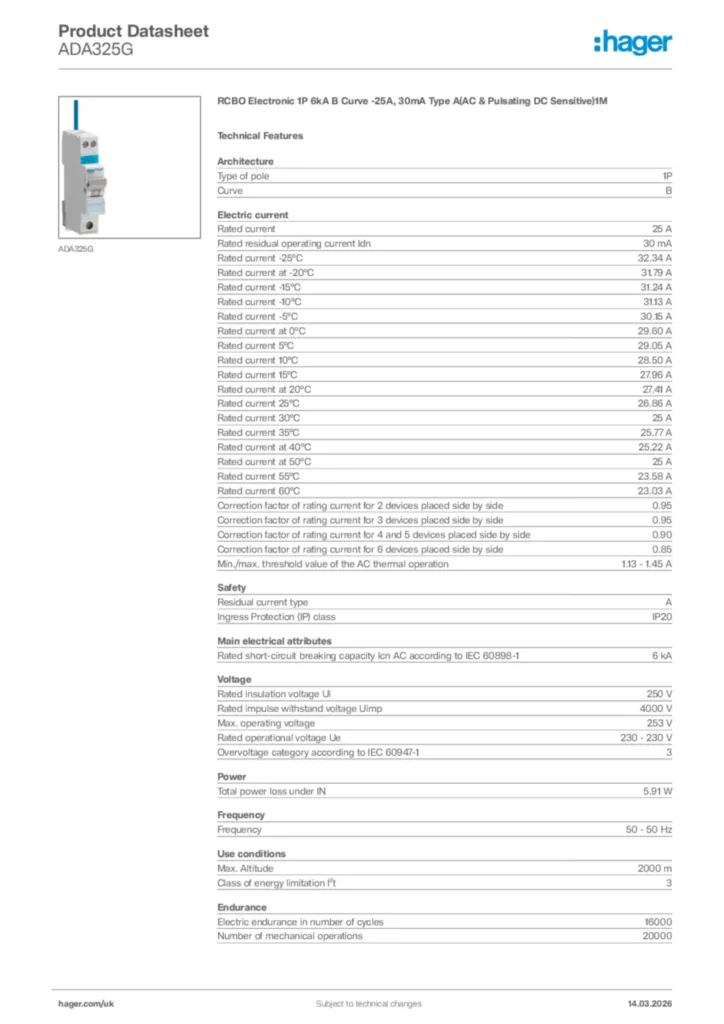

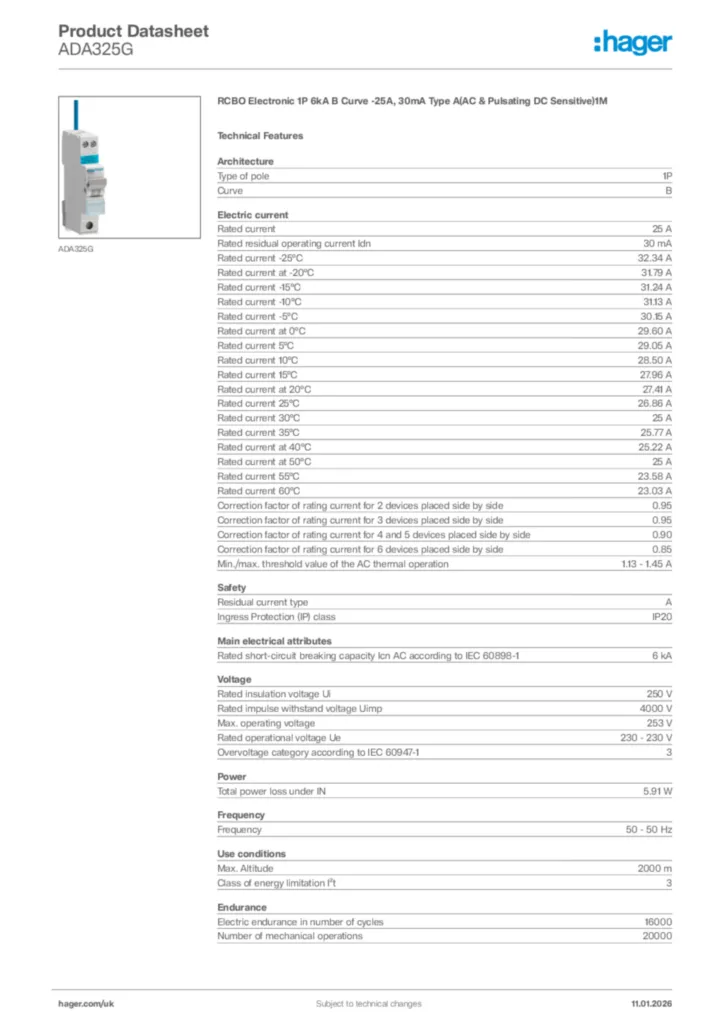

Product data sheets for ADA325G 337 KBPDFDownload
Residential Distribution Catalogue 5 MBPDFDownload
