Push-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, grey matt LT WNA025B
EAN
3250617175258
Packaging
1 Piece
Tools and softwares
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (9)
Optional accessories
-
Illumination insert for domestic switching devices 1 products available
Compatible products
-
Referenced by 25 products available
Accessories mandatory
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
Referenced by
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA681B
Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA402B
cubyko Double horizontal flush adapter white IP55
-
WNA682B
cubyko Double horizontal box empty with 2 sliders white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA683B
cubyko Triple horizontal box empty white IP55
-
WNA683cubyko Triple horizontal box empty grey IP55
-
WNA403B
cubyko Triple horizontal flush adapter white IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA691cubyko Slider for tube and cable grey IP55
-
WNA690Bcubyko Slider for 2 cables white IP55
-
WNA691Bcubyko Slider for tube and cable white IP55
-
WNA686B
cubyko Double vertical box empty white IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA408B
cubyko Double vertical flush adapter white IP55
-
WNA401B
cubyko Single flush adapter composable white IP55
-
WNA690cubyko Slider for 2 cables grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403
cubyko Triple horizontal flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
Technical properties
Electric current
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementRocker
Materials
-
ColourPolar white
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height80 mm
-
Width80 mm
-
Depth32 mm
-
Built-in depth flush-mounted boxes0
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK08
Accessories
-
Has labelling fieldYes
-
Related SystemsHager cubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

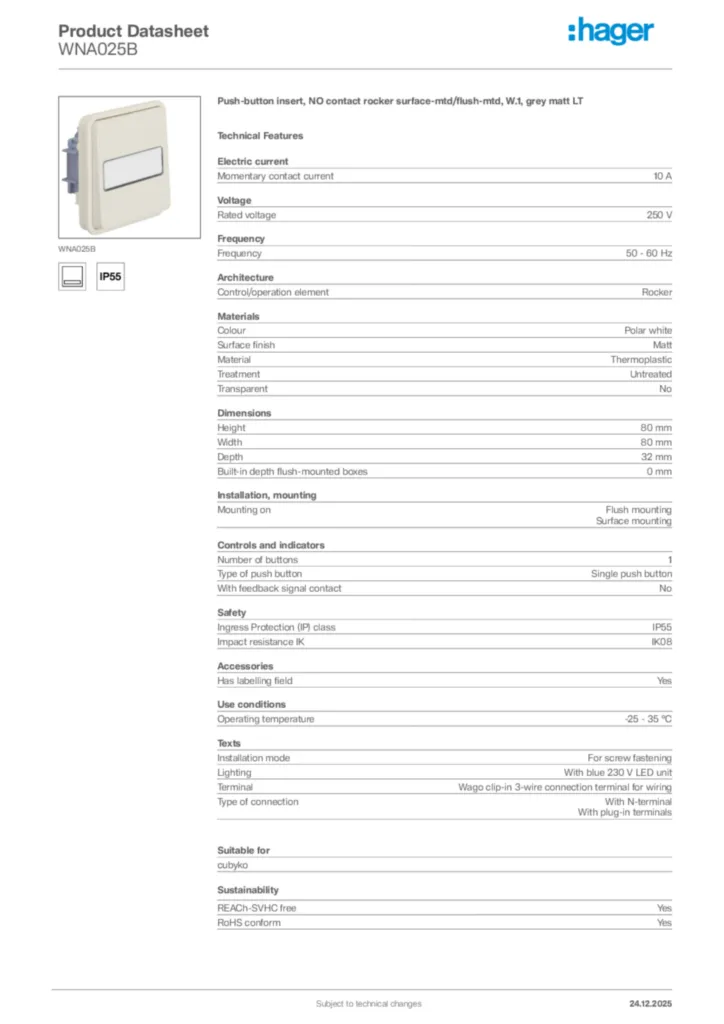

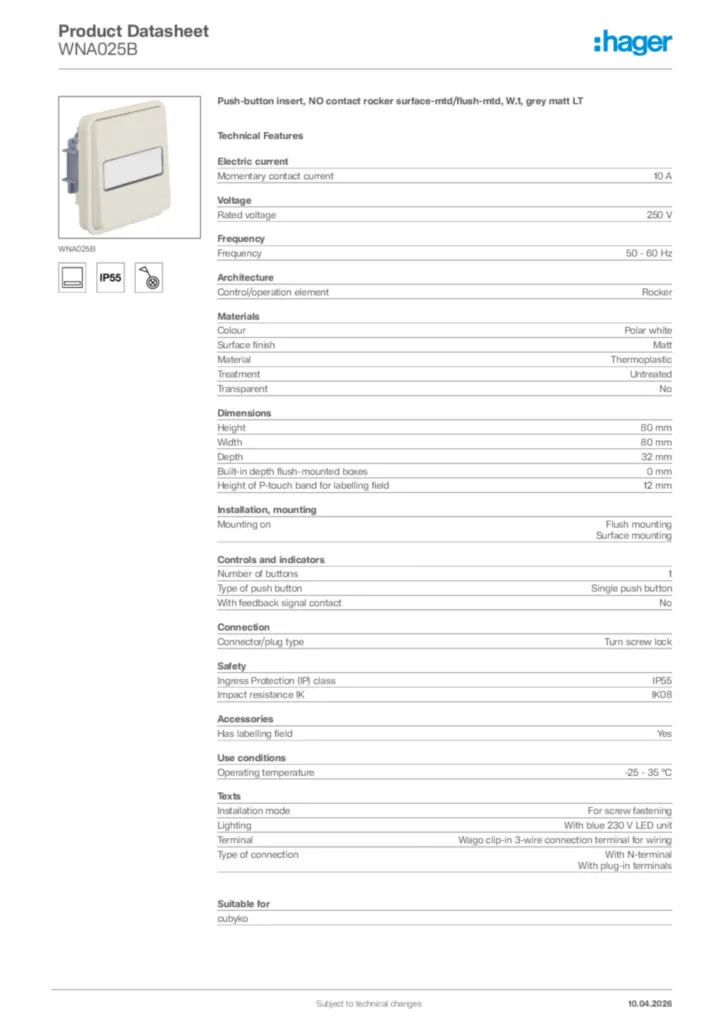

Product datasheet
