The Hager MCB 2P 25kA B-20A 2M miniature circuit breaker protects circuits from overloads and short circuits. Two-pole, 20A B-curve, 415 V AC, it delivers high breaking capacity up to 50 kA Icu (230 V) / 25 kA (400 V) and 15 kA Ics. Compact 2 modules with 360° mounting, IP20, and 20,000 mechanical ops. Screw/biconnect terminals accept 1-35 mm². Ideal for commercial and industrial panels.

EAN

3250614645624

Packaging

1 Piece

MCB 2P 25A B-curve 25kA 400V AC 2 modules NQN220

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Environmental value
Documentations

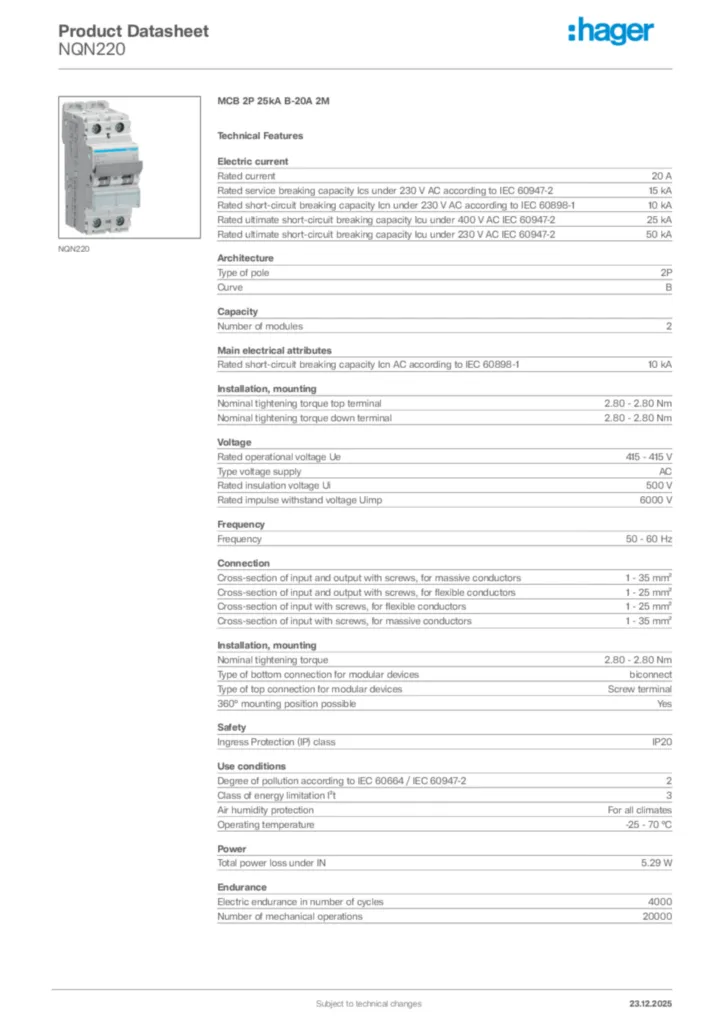

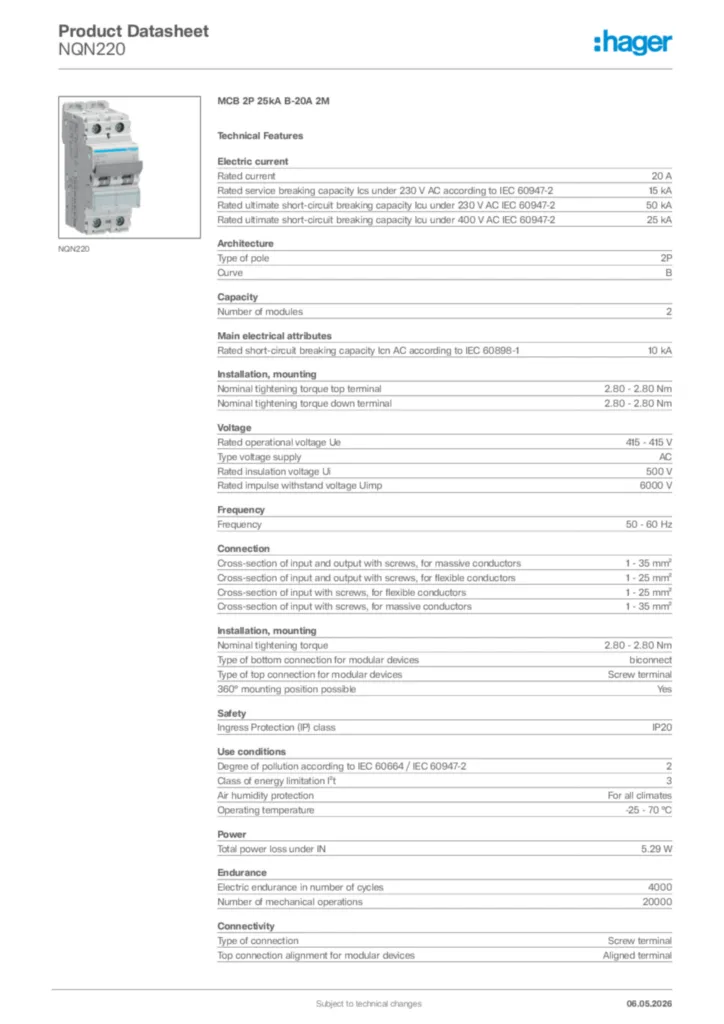

Download the data sheet

Complete your system

Modular phase busbar 1 products available
Terminal cover 1 products available
AOB type A-HI 3 products available
AOB type AC 7 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current

20 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA

Type of pole

2P
Curve

B

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

5.29 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm
