The Hager MCB 2P C-25A 2-module breaker protects and isolates circuits from overloads and short circuits. With 10kA Icn (IEC 60898-1) and up to 15kA/30kA Icu (IEC 60947-2), it suits demanding residential and commercial panels. 400V AC, C-curve for mixed loads, IP20, 6kV impulse, -25 to 70°C. Easy wiring via screw/biconnect terminals, 1-35 mm², 2.8 Nm, 360° mounting. High endurance: 4,000 electrical/20,000 mechanical ops.

EAN

3250614615696

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 2P 10A Curve C 10kA Icn 15kA Icu 400V 2M NCN225A

Accessories
Technical properties
Environmental value
Documentations
More products

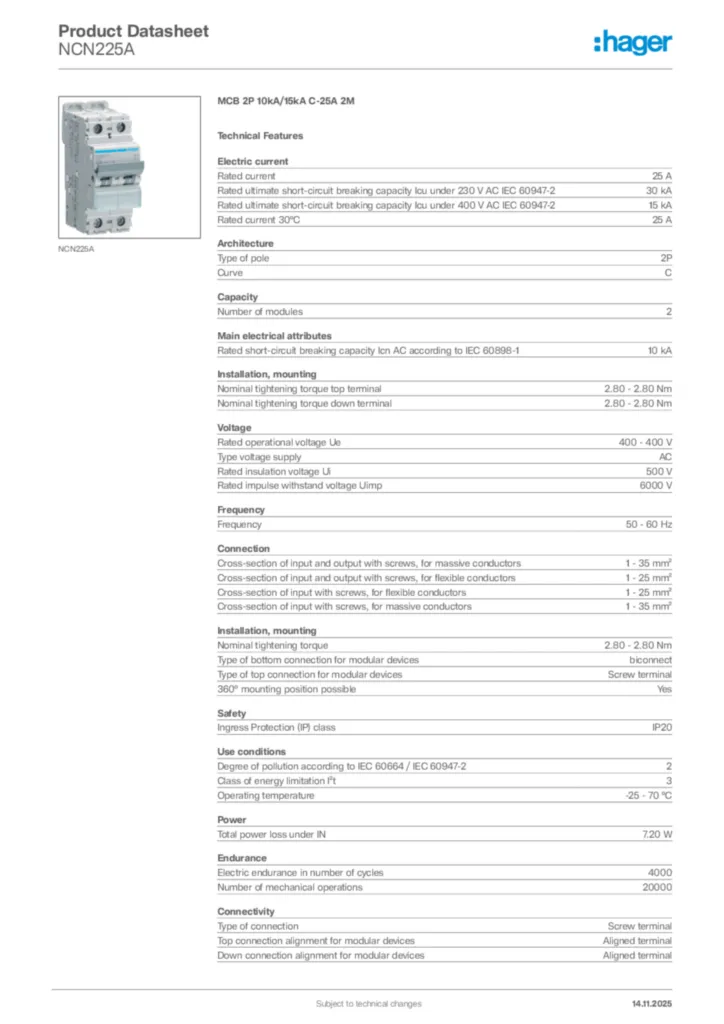

Download the data sheet

Complete your system

Modular phase busbar 1 products available
Terminal cover 1 products available
AOB type A-HI 2 products available
AOB type AC 6 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current

25 A
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

15 kA
Rated current 30°C

25 A
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA

Type of pole

2P
Curve

C

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Total power loss under IN

7.20 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
