The Hager 2P B-curve 10A MCB (2 modules) protects circuits against overloads and short circuits. With 10kA Icn (IEC 60898-1), Ics 15kA and Icu 30kA (IEC 60947-2), it suits demanding residential and commercial boards up to 400V AC. Benefits include compact width, 6kV impulse withstand, IP20 safety, 20,000 mechanical ops, 4,000 electrical ops, 360° mounting, and easy biconnect screw terminals (1-35 mm²/1-25 mm²).

EAN

3250614618178

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 2P 25A Curve C 25kA 415V AC 2 Modules NBN210A

Accessories
Technical properties
Environmental value
Documentations
More products

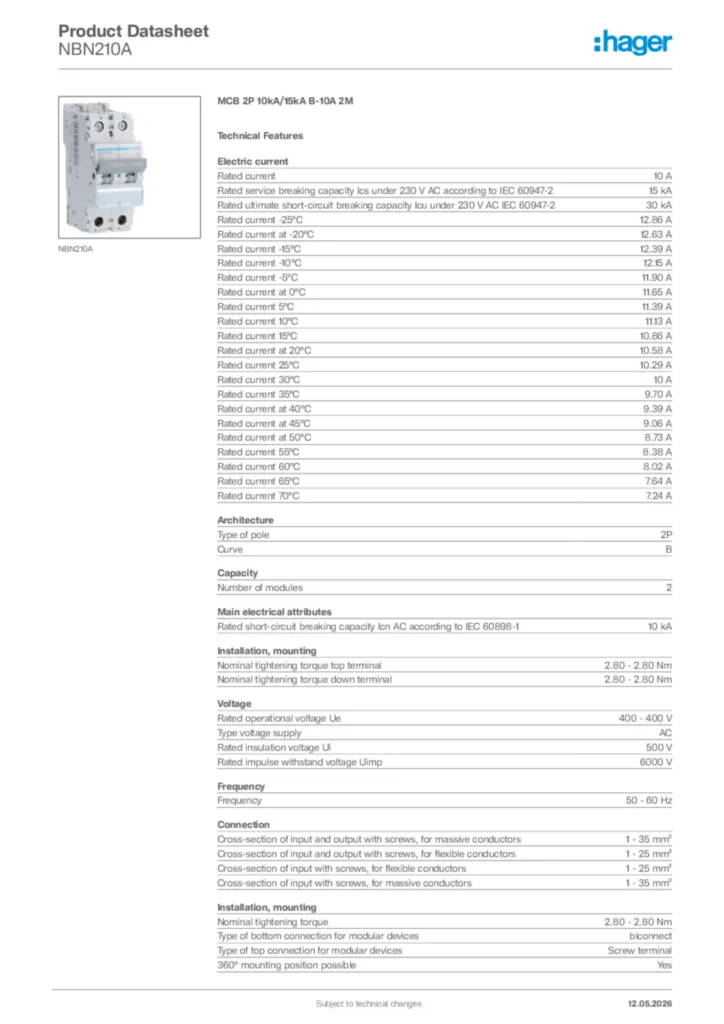

Download the data sheet

Complete your system

Modular phase busbar 1 products available
Terminal cover 1 products available
AOB type A-HI 2 products available
AOB type AC 6 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Rated current

10 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

15 kA
Rated current -15°C

12.39 A
Rated current -10°C

12.15 A
Rated current -5°C

11.90 A
Rated current at 0°C

11.65 A
Rated current 5°C

11.39 A
Rated current 10°C

11.13 A
Rated current 15°C

10.86 A
Rated current at 20°C

10.58 A
Rated current 25°C

10.29 A
Rated current 30°C

10 A
Rated current 35°C

9.70 A
Rated current at 40°C

9.39 A
Rated current at 45°C

9.06 A
Rated current at 50°C

8.73 A
Rated current 55°C

8.38 A
Rated current 60°C

8.02 A
Rated current 65°C

7.64 A
Rated current 70°C

7.24 A
Rated service breaking capacity Ics AC according to IEC 60947-2

50 %
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA

Type of pole

2P
Curve

B

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Total power loss under IN

4.13 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm
