The Hager LFS steel trunking 60x100mm (2 m) provides robust cable routing and protection for commercial and industrial installations. Galvanized zinc finish, IK08 and IP30, with functional integrity per DIN4102-12. Inner section 5025 mm²; holds up to 21 Ø11 mm cables at 50% fill. 1-2 compartments with 1 pluggable partition, cable retaining clip included. Operates -5 to 90°C. Couplers available separately.
EAN
4012740230476
VPE
6 meters
Steel trunking LFS 60x150mm galvanized IP30 IK08 2m, 29 cables LFS601000VERZ
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Cable clip/retainer for installation duct 2 product.page.accessories.products-available -
Earthing set 1 product.page.accessories.products-available -
Coupler for installation duct 1 product.page.accessories.products-available -
Partition for wall duct 2 product.page.accessories.products-available -
External corner for installation duct 1 product.page.accessories.products-available -
Internal corner for installation duct 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Height60 mm
-
Width100 mm
-
Length2000 mm
-
Inner cross-section5025 - 5025 mm²
Cover, door
-
Type of lidLoose
Capacity
-
Max. number of cables (Ø11mm, 50% filled, without devices)21
Materials
-
MaterialSteel
-
TreatmentGalvanised
-
ColourZinc
-
TransparentNo
Safety
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP30
Standards
-
Suitable for functional integrity according to DIN4102-12Yes
Use conditions
-
Operating temperature-5 - 90 °C
Connectivity
-
Trunking couplingCouplers as separate reference
Equipment
-
Number of partitions0
-
Number of compartments1 - 2
-
Number of pluggable partitions1
-
Cable retaining clip includedYes
-
Number of cable retainers per meter2
-
With protective filmNo
Configuration
-
With antibacterial treatmentNo
Scope of delivery
-
Delivery on rollNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

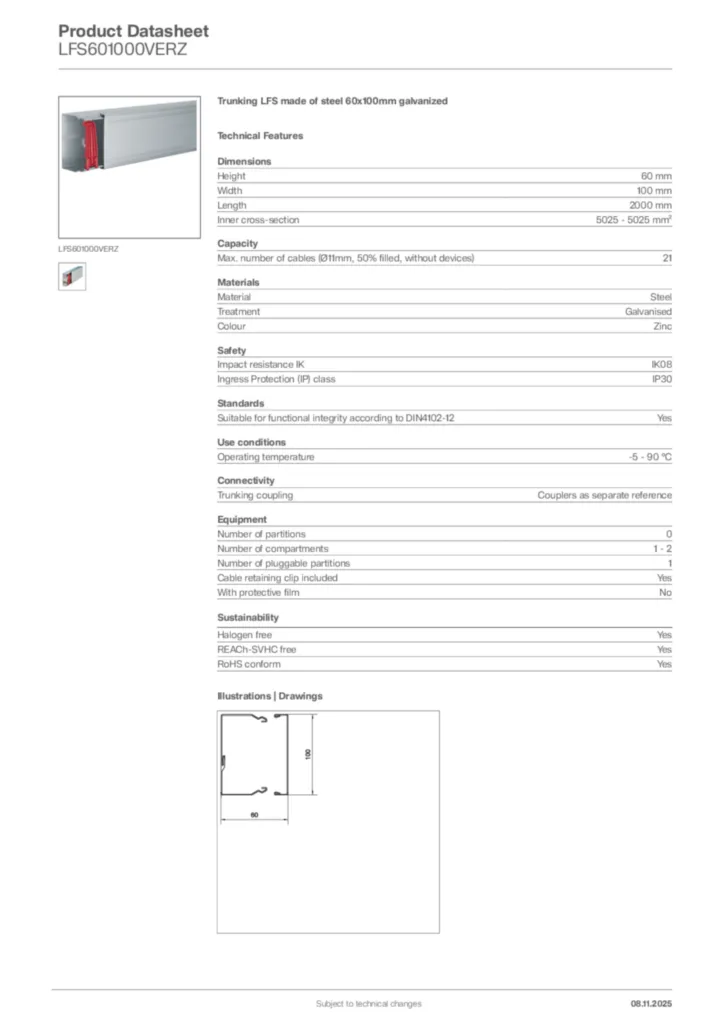

GeneratedProductDatasheet

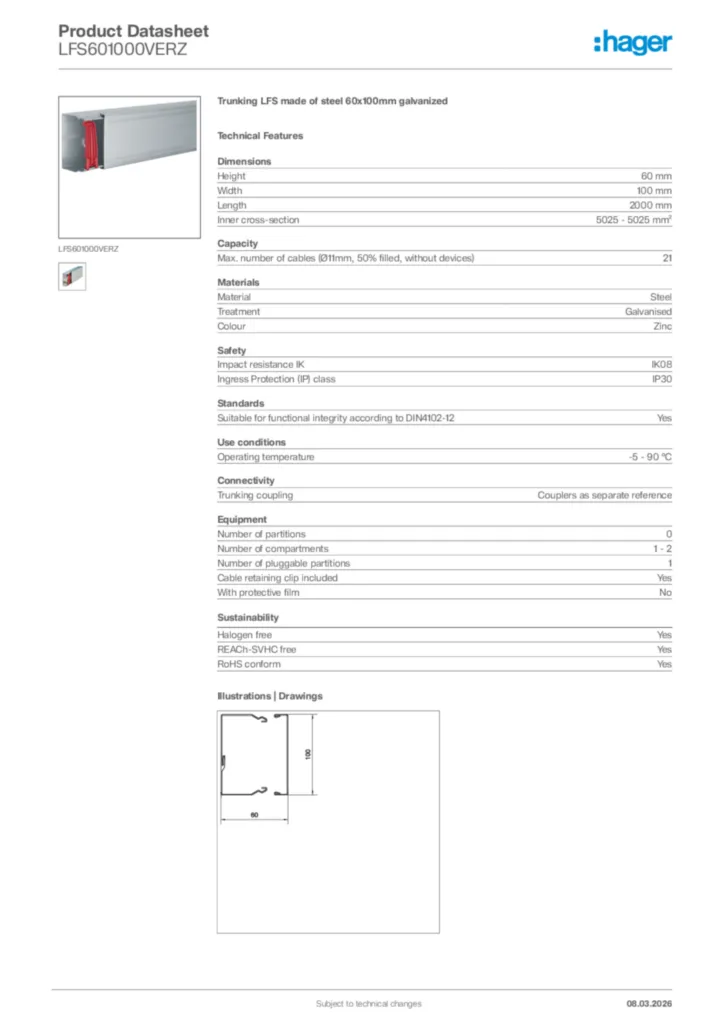

Hager Product data sheet LFS601000VERZ
