The Hager LFS 60x100 Internal Corner Overlapping fitting in galvanized steel provides neat 90° transitions for steel/plaster trunking. Sized 60x100 mm with 50 mm overlap, it delivers IK08 impact resistance, IP30 indoor protection and corrosion resistance. Certified for functional integrity per DIN 4102-12 and rated -5 to 60°C, it ensures reliable, clean cable routing in building installations.

EAN

4012740023153

Packaging

Cable trunking systems - LF

Internal corner 90° overlapping for LFS 60x60 steel/plaster galvanized IK08 IP30 LFS601004VERZ

Technical properties
Environmental value
Documentations
More products

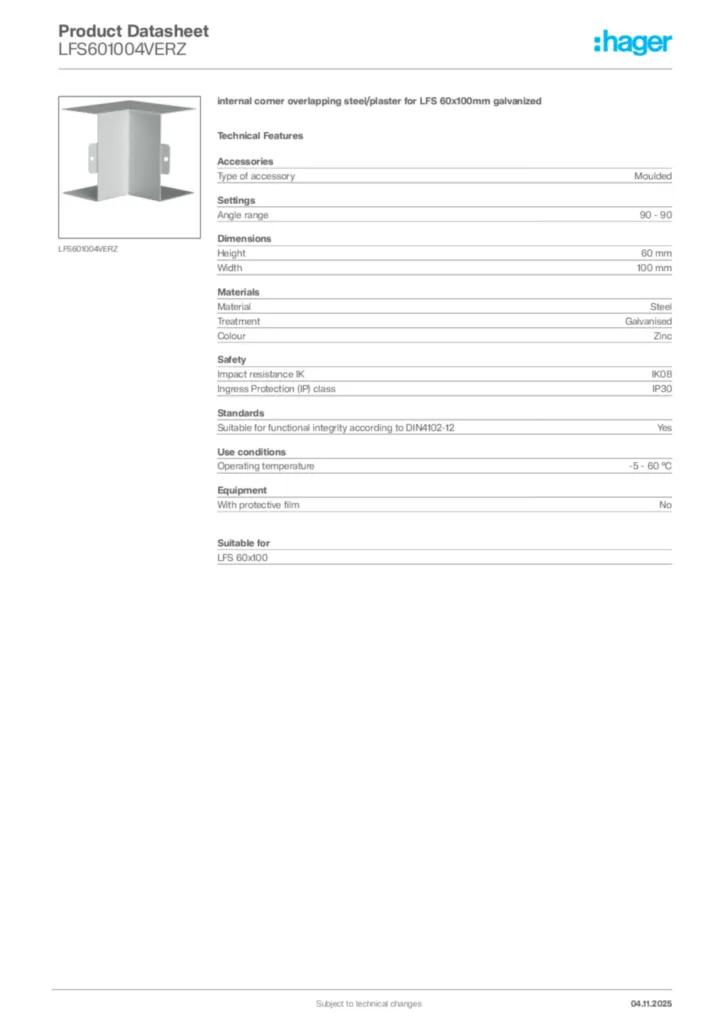

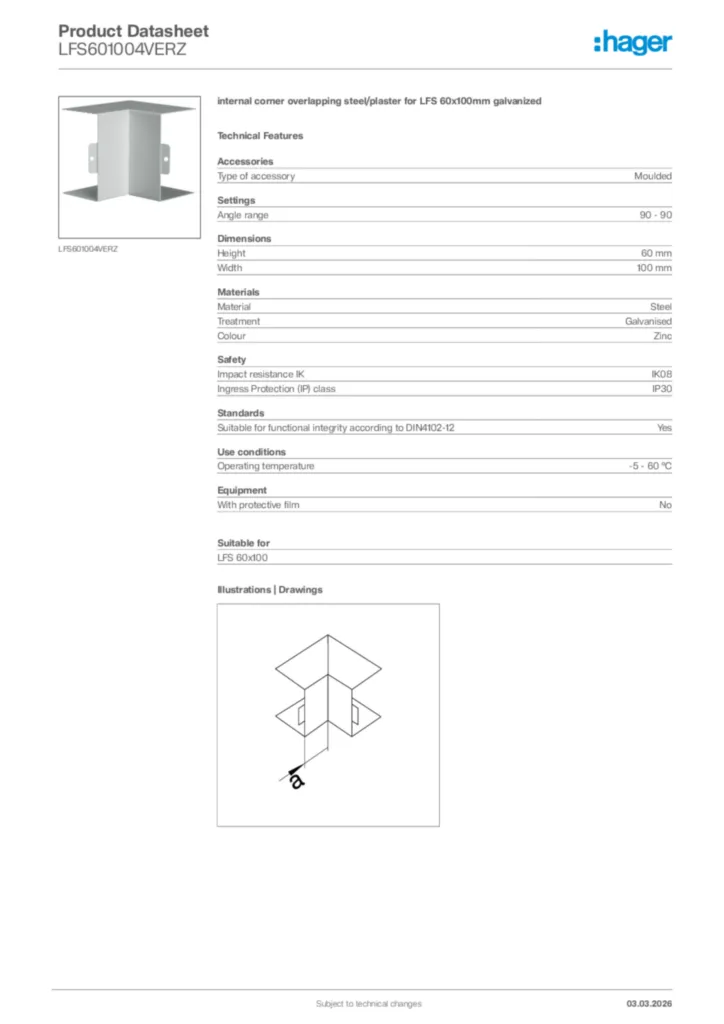

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

90 - 90

Height

60 mm
Width

100 mm
Measurement a

50 mm

Material

Steel
Treatment

Galvanised
Colour

Zinc

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

Yes

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes

Related Series

LFS 60x100

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
