The Hager LFH 60x90 mm halogen-free trunking in traffic white (RAL 9016) routes and protects cables in residential and commercial installs. PC-ABS body with IK07 and IP30, 4,360 mm² inner section fits up to 18 Ø11 mm cables. Supplied in 2 m lengths, pre-equipped with couplers and a cable retaining clip for fast, tidy mounting. Single compartment; operating range −5 to 90°C.

EAN

4012740013703

Packaging

16 Meters

Cable trunking systems - LF

Halogen-free LF trunking 40x60mm RAL9016 2m IK07 IP30 pre-coupled LFH6009009016

Accessories
Technical properties
Environmental value
Documentations
More products

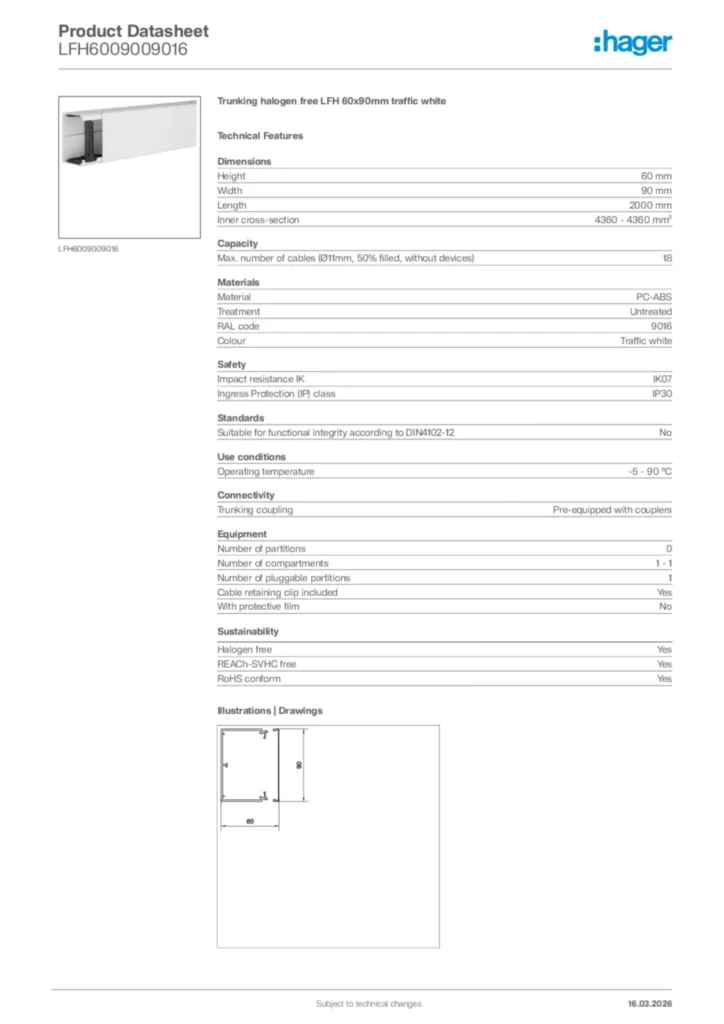

Download the data sheet

Complete your system

Cable clip/retainer for installation duct 1 products available
End piece for installation duct 1 products available
Internal corner for installation duct 1 products available
External corner for installation duct 1 products available
Flat angle for installation duct 1 products available
T-piece for installation duct 1 products available

Technical properties

Height

60 mm
Width

90 mm
Length

2000 mm
Inner cross-section

4360 - 4360 mm²

Type of lid

Loose

Max. number of cables (Ø11mm, 50% filled, without devices)

18

Material

PC-ABS
Treatment

Untreated
RAL code

9016
Colour

Traffic white
Transparent

No

Impact resistance IK

IK07
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 90 °C

Trunking coupling

Pre-equipped with couplers

Number of partitions

0
Number of compartments

1 - 1
Number of pluggable partitions

1
Cable retaining clip included

Yes
Number of cable retainers per meter

2
With protective film

No

With antibacterial treatment

No

Delivery on roll

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
