The Hager LFF trunking 40x110 mm in traffic white (RAL 9016) routes and protects cables in indoor installations. Supplied in 2 m lengths with pre-equipped couplers, protective film and 2 cable clips for fast, clean mounting. Large 3250 mm² section carries up to 17 Ø11 mm cables. Robust PVC, IK07, IP40, -5…60°C. 1 compartment, accepts up to 3 pluggable partitions.
EAN
4012740013208
Packaging
20 Meters
End cap halogen-free for LF/LFF/LFH trunking 60x90 IK07 RAL9016 LFF4011009016
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Partition for installation duct 1 products available -
Joint cover for installation duct 2 products available -
Internal corner for installation duct 1 products available -
External corner for installation duct 1 products available -
Flat angle for installation duct 1 products available -
End piece for installation duct 1 products available
Complete your system
Technical properties
Dimensions
-
Height40 mm
-
Width110 mm
-
Length2000 mm
-
Inner cross-section3250 - 3250 mm²
Cover, door
-
Type of lidLoose
Capacity
-
Max. number of cables (Ø11mm, 50% filled, without devices)17
Materials
-
MaterialPolyvinylchloride (PVC)
-
TreatmentUntreated
-
RAL code9016
-
ColourTraffic white
-
TransparentNo
Safety
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Connectivity
-
Trunking couplingPre-equipped with couplers
Equipment
-
Number of partitions0
-
Number of compartments1 - 1
-
Number of pluggable partitions3
-
Cable retaining clip includedYes
-
Number of cable retainers per meter2
-
With protective filmYes
Configuration
-
With antibacterial treatmentNo
Scope of delivery
-
Delivery on rollNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

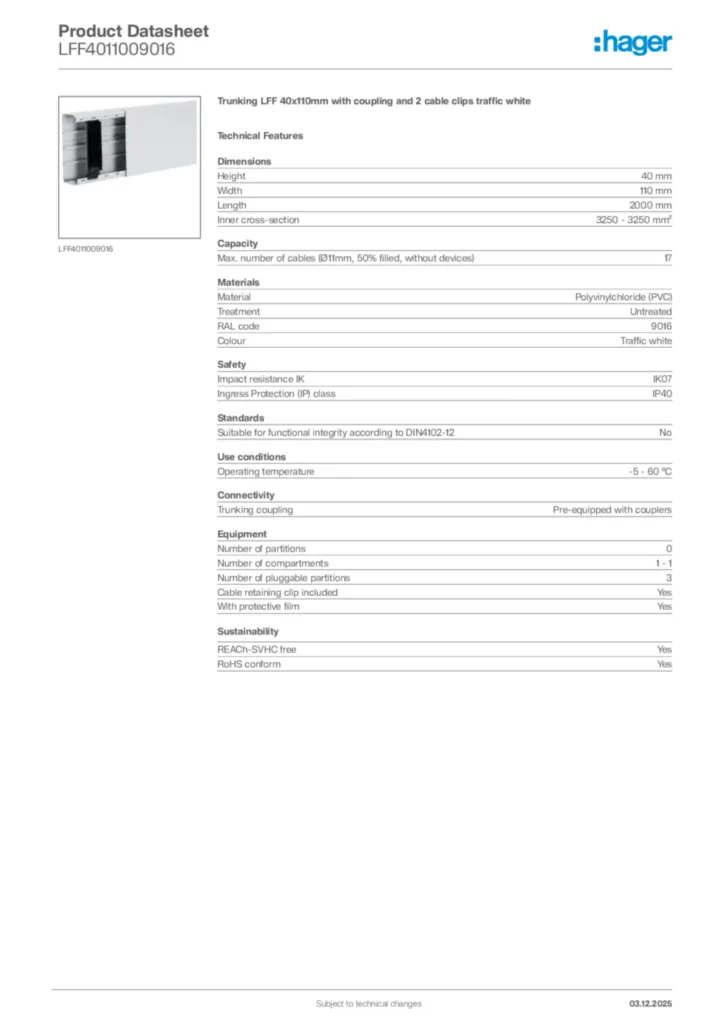

Product datasheet
