    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 160 A
    • vega D
    • FU52GN
    EAN
    3250612710980
    Packaging
    1 Piece
    • vega D

    Enclosure, NewVegaD, 987x550x182mm, 120 modules, flush-mounted, empty FU52GN

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosure, NewVegaD, 987x550x182mm, 120 modules, flush-mounted, empty

    FU52GN

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (31)
    • Gland plate for enclosure 4 products available
    • Cover for distri­bu­tion board 3 products available
    • Mounting plate for distri­bu­tion board 4 products available
    • Common Accessories 3 products available
    • Distrib­utor assembly switch 2 products available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 1 products available

    Complete your system

    • Gland plate for enclosure
    • Cover for distri­bu­tion board
    • Mounting plate for distri­bu­tion board
    • Common Accessories
    • Distrib­utor assembly switch
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Distrib­utor assembly terminal blocks
    • DIN rail
    • Door/­op­er­ating panel
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Distrib­utor assembly for serial built-in device
    • Distrib­utor assembly with main switch
    • Expan­sion pack­ages
    • Mounting accessories
    • Compon­ents for wiring, cable entry and cable fixing
    • FD00P3

      Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs

      0.00 €  / *
    • FD00P2

      Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41

      0.00 €  / *
    • FD00P1

      Cable entry plate, NewVegaD, top/bottom, rectangular

      0.00 €  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards

      0.00 €  / *
    • FD00C3

      Cover, NewVegaD, 300x500mm, plain+slotted

      0.00 €  / *
    • FD00C2

      Cover, NewVegaD, 300x500mm, plain

      0.00 €  / *
    • FD00C5

      Cover, NewVegaD, 150x500mm, plain

      0.00 €  / *
    • FD00M4

      Mounting plate, NewVegaD, 150x440x2mm, for mounting rail upright

      0.00 €  / *
    • FD00M2

      Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright

      0.00 €  / *
    • FD00M3

      Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright

      0.00 €  / *
    • FD00M1

      Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright

      0.00 €  / *
    • FD00B2

      Kit, NewVegaD, with 10 cable brackets for flush enclosure

      0.00 €  / *
    • FD00T2

      Slotted trunking, NewVegaD, 80x30mm, lightgrey, horizontal, halogen-free

      0.00 €  / *
    • FD00H2

      Kit with 2 DIN rail holders for NewVegaD enclosure

      0.00 €  / *
    • FD01K1

      Kit, NewVegaD, 150x500mm, 1-row for MCCB 160A

      0.00 €  / *
    • FD02V2

      Kit, NewVegaD, for change over switch 160A

      0.00 €  / *
    • FD00A4

      Partition plate, NewVegaD, horizontal, flush high-depth 180mm

      0.00 €  / *
    • KJ160A

      Brass busbar terminal 160A, 4pole, 1x 25-70² / 3x 10-35² / 8x 2, 5-25² per pole

      0.00 €  / *
    • KJ01D

      Brass busbar terminal 160A, 4pole, 1x 10-50² / 3x 10-35² / 8x 2, 5-16² per pole

      0.00 €  / *
    • FD01A2

      Kit, NewVegaD, 150x500mm, with depth-adjustable DIN rail and plain cover

      0.00 €  / *
    • UN05FN

      Vertical uprights, univers FW, height 750mm, 2 pieces

      0.00 €  / *
    • FD52TN

      Glazed door, NewVegaD, 850x500mm, for 5-rows enclosure

      0.00 €  / *
    • FD52PN

      Plain door, NewVegaD, 850x500mm, for 5-rows enclosure

      0.00 €  / *
    • FD00A1

      Label strips Kit, NewVegaD, 10 pieces, 24 modules width

      0.00 €  / *
    • FD01A1

      Kit, NewVegaD, 150x500mm, for rail-mouted devices, 1x24 modules

      0.00 €  / *
    • FD03Z1

      Kit, NewVegaD, 450x500mm, for tarif bleu triphasé

      0.00 €  / *
    • FD00T1

      Slotted trunking 80x30 grey horizontal NewVegaD

      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces

      0.00 €  / *
    • UZ25V1

      Cable bracket, universN, big section, 20 pieces

      0.00 €  / *
    • UZ01V1

      Support, universN, double, for cable bracket, 20 pieces

      0.00 €  / *
    • FD00F3

      Cable strain relief bar 24 modules width for NewVegaD

      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      987 mm
    • Width
      600 mm
    • Depth
      182 mm
    • Thick­ness of side­wall
      1 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP30
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      Without lock
    • Impact resist­ance IK
      IK07
    Equip­ment
    • Number of section in width
      2
    • Number of flange plate open­ings
      2
    • Number of rows
      5
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Metal, Plastic
    Cover, door
    • Number of cabinet doors
      0
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      160 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FU52GN
    PDF
    Hager RoHS report FU52GN
    PDF

    Downloads

    • Image FU52GN  | Hager Africa

      Product Image FU52GN

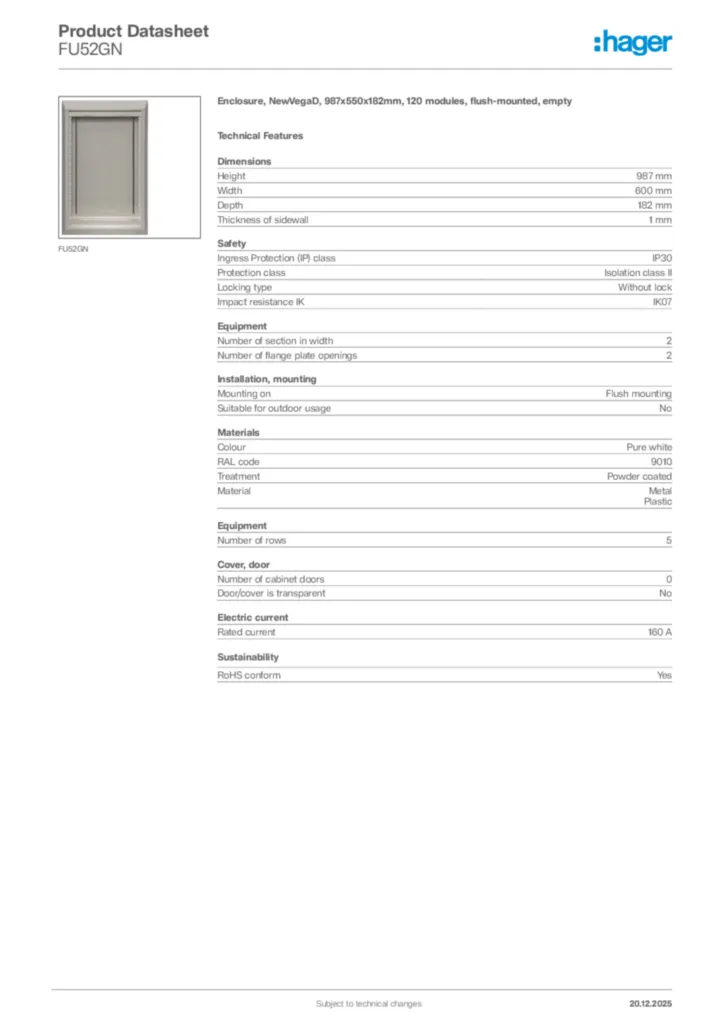

    • Product datasheet

      Image Hager Product data sheet FU52GN  | Hager Africa

      Hager Product data sheet FU52GN

      Enclosure, NewVegaD, 987x550x182mm, 120 modules, flush-mounted, empty

      PDF
    • Handbook

      Image Handbook en-GB 2023-07-07  | Hager Africa

      Handbook en-GB 2023-07-07

      PDF
      11,76 MB
      Image Handbook fr-FR 2023-09-11  | Hager Africa

      Handbook fr-FR 2023-09-11

      PDF
      11,49 MB
    • Declaration of conformity

      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
