The Hager Quadro Evo glazed door H1900 x W700 enables clear visual inspection while protecting the enclosure. Finished in pure white RAL9010, it suits 2-section-wide cabinets and includes 1 transparent door with a 3-point 7 mm lock and 1 key. Insulation Class I enhances safety. Ideal for secure, quick status checks and controlled access in distribution boards and switchboards.
EAN
3250610189795
Packaging
1 Piece
Plain door Quadro Evo H2100 W700 Pure white RAL9010 1 door 3-point 7mm lock FN516E
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 8 products available -
Components for door 1 products available -
Insert for lock system 6 products available
Compatible products
-
Referenced by 9 products available
Complete your system
-
FZ597
Door lock N° 1242E, for Univers IP43, FW2, Q4/5, with 2 keys
-
FZ520Euro-profile cylinder 455 for swing lever FZ537
-
FZ519
Euro-profile cylinder 405 for swing lever FZ537
-
FZ506
Euro-profile cylinder 1242E for swing lever FZ537
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ449NLock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
-
FZ508Swing lever, univers, with cylinder Nr.E1242 with 2 keys for encl.IP5-6, sealable
-
FL78ZPadlockable swinghandle w/o inserts, Quadro.Plus
Referenced by
-
FN024EWTop & bottom, quadro evo, 1000x400 mm
-
FN032EWTop & bottom, quadro evo, 1000x600 mm
-
FN037EWTop & bottom, quadro evo, 1000x800 mm
-
FN021EWTop & bottom, quadro evo, 700x400 mm
-
FN029EWTop & bottom, quadro evo, 700x600 mm
-
FN013EWTop & bottom, quadro evo, 700x800 mm
-
FN023EWTop & bottom, quadro evo, 900x400 mm
-
FN031EWTop & bottom, quadro evo, 900x600 mm
-
FN017EWTop & bottom, quadro evo, 900x800 mm
Technical properties
Cover, door
-
Door/cover is transparentYes
-
Number of cabinet doors1
-
Number of locks1
Materials
-
RAL code9010
-
ColourPure white
-
Product colourPure white
Safety
-
Protection classIsolation class I
-
Locking type3-Side 7 mm
Equipment
-
Number of section in width2
-
Number of keys1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

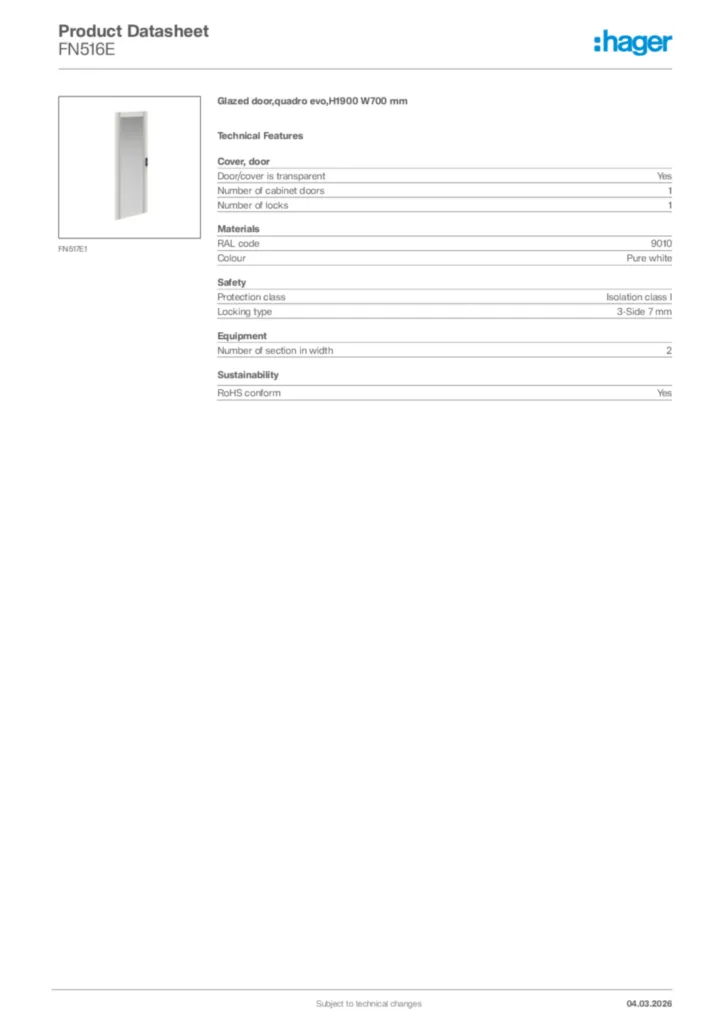

Product datasheet
