Corner steel enclosure, Quadro.Plus, 800x800x1900 mm FN008E
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Common Accessories 1 products available -
Mounting accessories 1 products available -
Base/base element 1 products available -
Busbar 1 products available
Compatible products
-
Referenced by 4 products available
Technical properties
Dimensions
-
Height1900 mm
-
Width800 mm
-
Depth800 mm
-
Thickness of sidewall1.50 mm
Safety
-
Ingress Protection (IP) classIP55
-
Protection classIsolation class I
-
Impact resistance IKIK10
Equipment
-
Number of section in width2
Installation, mounting
-
Suitable for outdoor usageNo
Materials
-
ColourPure white
-
RAL code9010
-
TreatmentVarnished
-
MaterialSteel
Cover, door
-
Door/cover is transparentNo
Electric current
-
Rated current4000 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

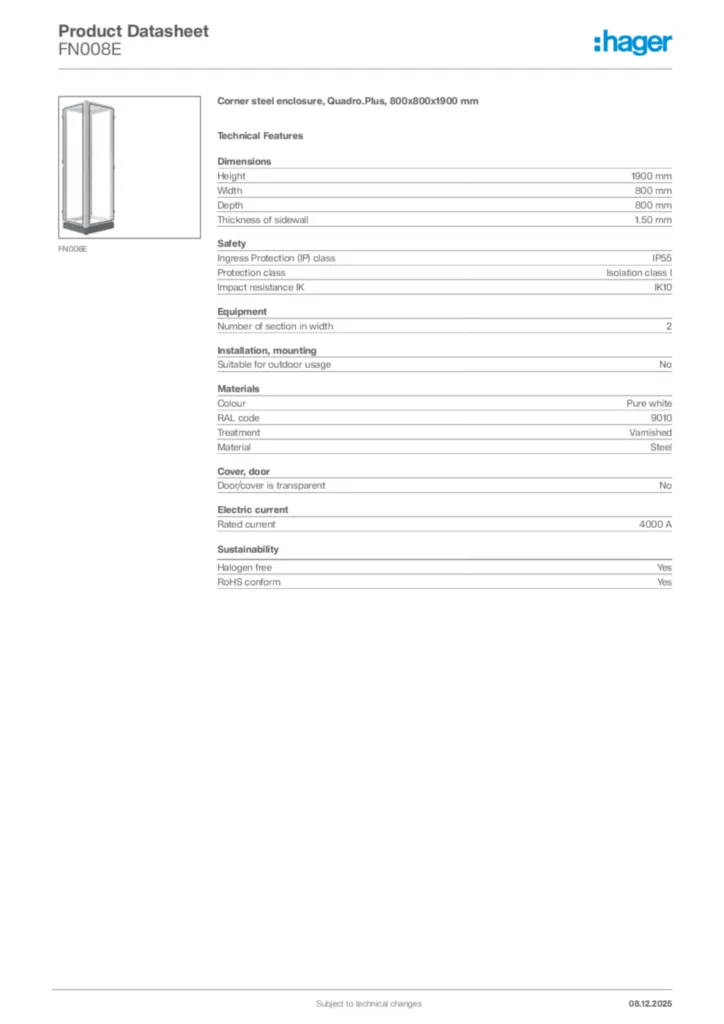

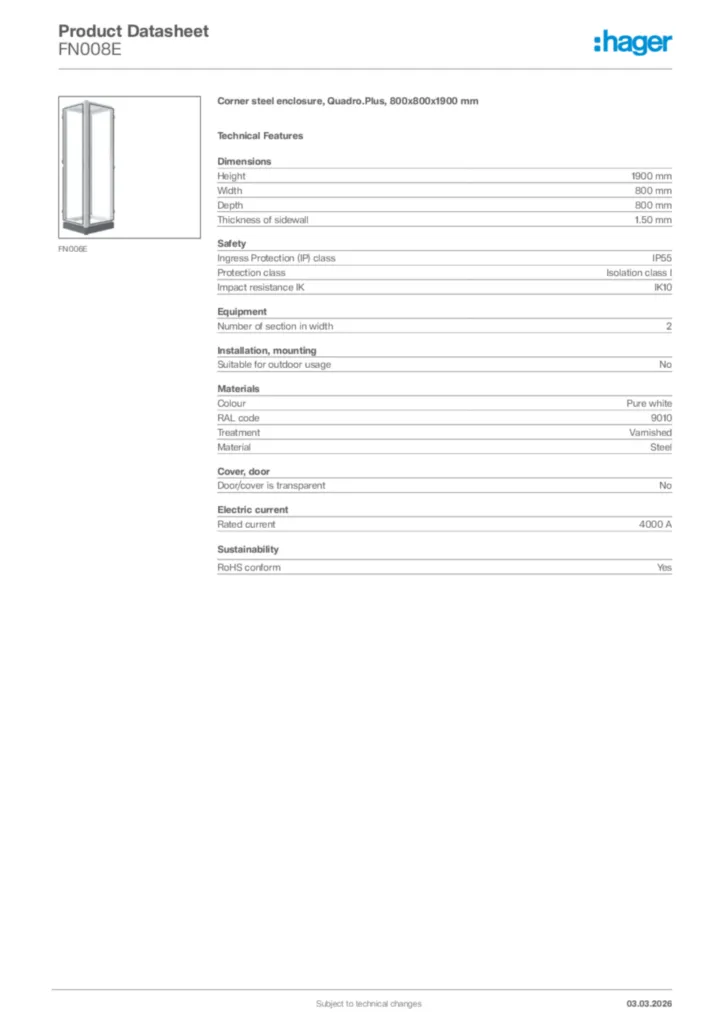

Hager Product data sheet FN008E
Corner steel enclosure, Quadro.Plus, 800x800x1900 mm
PDF -
Instruction manual
Instruction manual International 2024-12-04
PDF3,97 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-07-15
PDF335,37 kB
Declaration
Declaration of conformity International 2022-12-13
PDF377,72 kB
Declaration
Declaration of conformity International 2022-12-13
PDF275,78 kB
Declaration
Declaration of conformity International 2022-03-14
PDF726,08 kB
Declaration
Declaration of conformity International 2022-07-18
PDF314,42 kB
