The Hager Quadro.Plus corner steel enclosure 800x800x2100 mm provides robust indoor housing for power distribution up to 4000 A. Its IP55 sealing and IK10 impact resistance safeguard equipment, while 1.5 mm steel, varnished RAL9010 finish, and non-transparent door ensure durability and discretion. Two-section width optimizes corner space in industrial and commercial switchboards.

EAN

3250612511747

Packaging

1 Piece

quadro evo enclosures and accessories

Enclosure NewVegaD flush-mounted 48M 2-row IP30 160A 537x600x182mm FN009E

Accessories
Technical properties
Environmental value
Documentations
More products

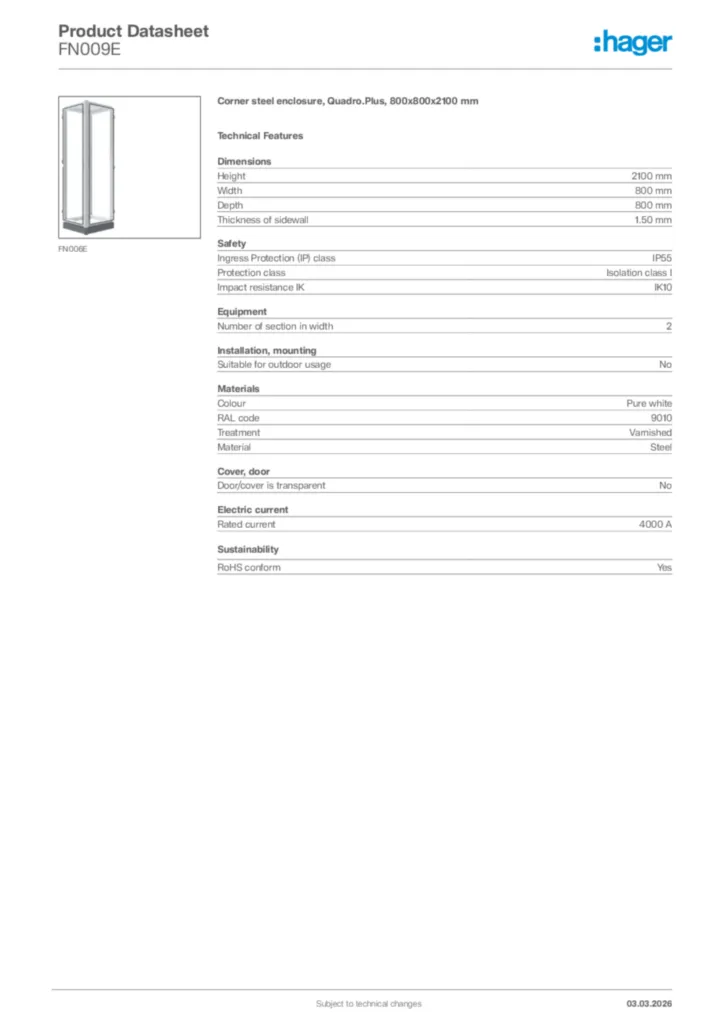

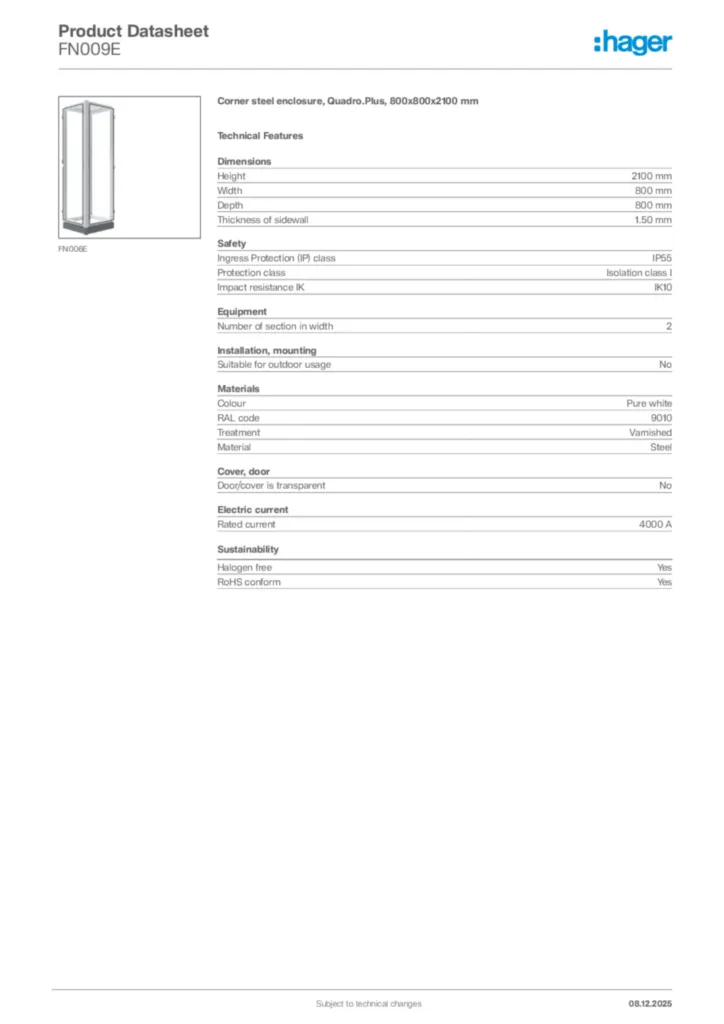

Download the data sheet

Complete your system

Common Accessories 1 products available
Mounting accessories 1 products available
Base/base element 1 products available
Busbar 1 products available

Referenced by 4 products available

Technical properties

Height

2100 mm
Width

800 mm
Depth

800 mm
Thickness of sidewall

1.50 mm

Ingress Protection (IP) class

IP55
Protection class

Isolation class I
Impact resistance IK

IK10

Number of section in width

2

Suitable for outdoor usage

No

Colour

Pure white
RAL code

9010
Treatment

Varnished
Material

Steel

Door/cover is transparent

No

Rated current

4000 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
