    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 160 A
    • vega D
    • FD72GN
    EAN
    3250612548552
    Packaging
    1 Piece
    • vega D

    Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, empty FD72GN

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, empty

    FD72GN

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (35)
    • Distrib­utor assembly terminal blocks 3 products available
    • Gland plate for enclosure 5 products available
    • Cover for distri­bu­tion board 3 products available
    • DIN rail 1 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 1 products available
    • Distrib­utor assembly switch 2 products available

    Complete your system

    • Distrib­utor assembly terminal blocks
    • Gland plate for enclosure
    • Cover for distri­bu­tion board
    • DIN rail
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Distrib­utor assembly switch
    • Common Accessories
    • Mounting plate for distri­bu­tion board
    • Expan­sion pack­ages
    • Door/­op­er­ating panel
    • Compon­ents for wiring, cable entry and cable fixing
    • Trans­ition cover section for install­a­tion duct
    • Mounting accessories
    • Distrib­utor assembly with main switch
    • Distrib­utor assembly for serial built-in device
    • Vent­il­ator for enclosure
    • Compon­ents for arrange­ment/baying system
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • KJ160A

      Brass busbar terminal 160A, 4pole, 1x 25-70² / 3x 10-35² / 8x 2, 5-25² per pole
      0.00 €  / *
    • KJ01D

      Brass busbar terminal 160A, 4pole, 1x 10-50² / 3x 10-35² / 8x 2, 5-16² per pole
      0.00 €  / *
    • FD01A2

      Kit, NewVegaD, 150x500mm, with depth-adjustable DIN rail and plain cover
      0.00 €  / *
    • FD00P4

      Kit, NewVegaD, with 2 side cable entry plates, square until M40, for FD…
      0.00 €  / *
    • FD00P3

      Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs
      0.00 €  / *
    • FD00P2

      Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41
      0.00 €  / *
    • FD00P1

      Cable entry plate, NewVegaD, top/bottom, rectangular
      0.00 €  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards
      0.00 €  / *
    • FD00C3

      Cover, NewVegaD, 300x500mm, plain+slotted
      0.00 €  / *
    • FD00C2

      Cover, NewVegaD, 300x500mm, plain
      0.00 €  / *
    • FD00C5

      Cover, NewVegaD, 150x500mm, plain
      0.00 €  / *
    • UN07FN

      Vertical uprights, univers FW, height 1050mm, 2 pieces
      0.00 €  / *
    • FD00A1

      Label strips Kit, NewVegaD, 10 pieces, 24 modules width
      0.00 €  / *
    • FD01K1

      Kit, NewVegaD, 150x500mm, 1-row for MCCB 160A
      0.00 €  / *
    • FD02V2

      Kit, NewVegaD, for change over switch 160A
      0.00 €  / *
    • FD00T2

      Slotted trunking, NewVegaD, 80x30mm, lightgrey, horizontal, halogen-free
      0.00 €  / *
    • FD00H2

      Kit with 2 DIN rail holders for NewVegaD enclosure
      0.00 €  / *
    • FD00M4

      Mounting plate, NewVegaD, 150x440x2mm, for mounting rail upright
      0.00 €  / *
    • FD00M2

      Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
      0.00 €  / *
    • FD00M3

      Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
      0.00 €  / *
    • FD00M1

      Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
      0.00 €  / *
    • FD00T1

      Slotted trunking 80x30 grey horizontal NewVegaD
      0.00 €  / *
    • FD72TN

      Glazed door, NewVegaD, 1150x500mm, for 7-rows enclosure
      0.00 €  / *
    • FD72PN

      Plain door, NewVegaD, 1150x500mm, for 7-rows enclosure
      0.00 €  / *
    • FD00F3

      Cable strain relief bar 24 modules width for NewVegaD
      0.00 €  / *
    • FZ442

      cable cover, 2-section, wall fixation, Hx W x D195 x 550 x 155mm, RAL9010
      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces
      0.00 €  / *
    • UZ25V1

      Cable bracket, universN, big section, 20 pieces
      0.00 €  / *
    • UZ01V1

      Support, universN, double, for cable bracket, 20 pieces
      0.00 €  / *
    • FD00F2

      Kit NewVegaD, with external wall-mounting plates
      0.00 €  / *
    • FD03Z1

      Kit, NewVegaD, 450x500mm, for tarif bleu triphasé
      0.00 €  / *
    • FD01A1

      Kit, NewVegaD, 150x500mm, for rail-mouted devices, 1x24 modules
      0.00 €  / *
    • FD00P5

      Kit, NewVegaD, universFW, with 2 aeration grids, for FD…, FWU...
      0.00 €  / *
    • FD00F1

      Kit enclosure-enclosure association, NewVegaD, horiontal+vertical
      0.00 €  / *
    • FD00A3

      Partition plate, NewVegaD, for surface enclosure, horizontal
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      1200 mm
    • Width
      550 mm
    • Depth
      193 mm
    • Thick­ness of side­wall
      1 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP30
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      Without lock
    • Impact resist­ance IK
      IK07
    Equip­ment
    • Number of flange plate open­ings
      2
    • Number of rows
      7
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Metal, Plastic
    Cover, door
    • Number of cabinet doors
      0
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      160 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FD72GN
    PDF
    Hager RoHS report FD72GN
    PDF

    Downloads

    • Image FD72GN | Hager Africa

      Product Image FD72GN

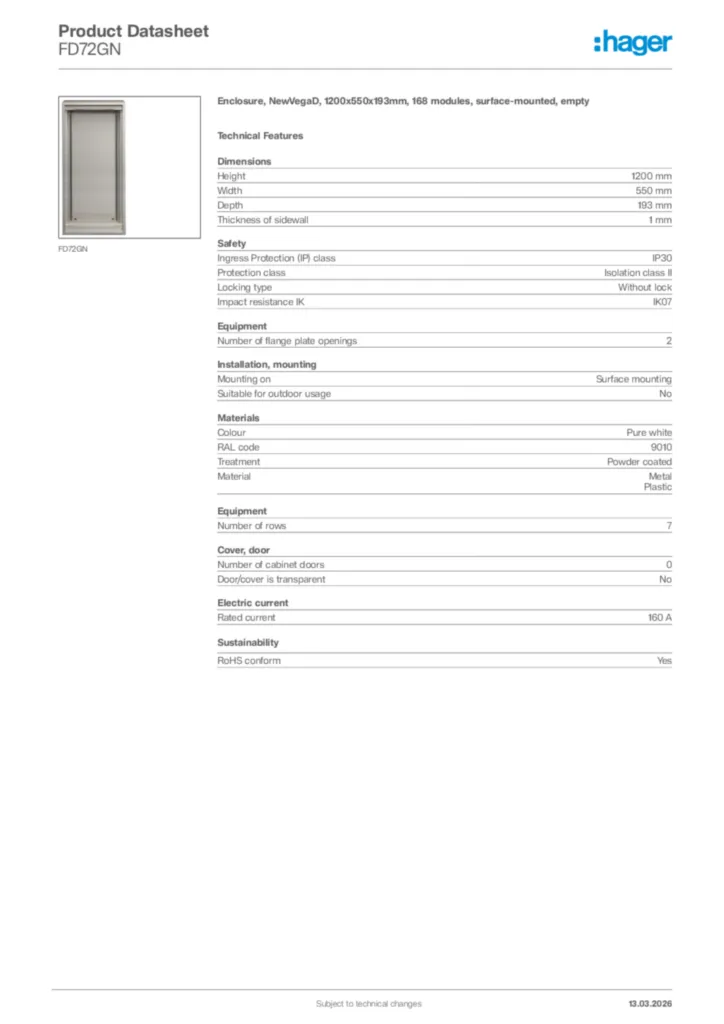

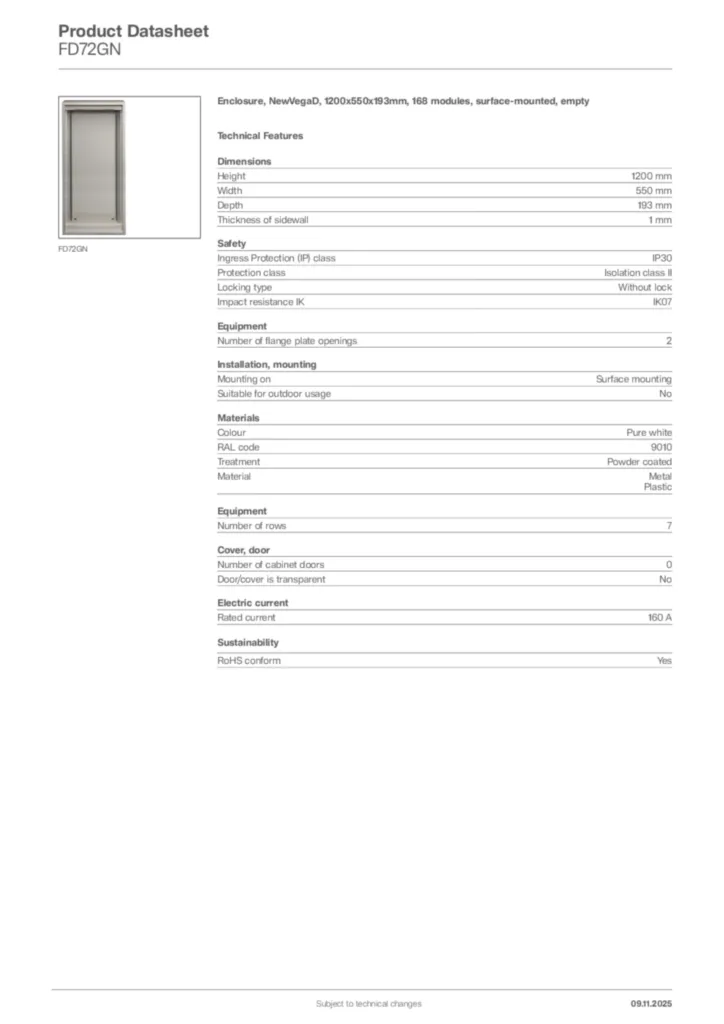

    • Product datasheet

      Image Hager Product data sheet FD72GN | Hager Africa

      Hager Product data sheet FD72GN

      Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, empty

      PDF

    • Handbook

      Image Handbook en-GB 2023-07-07 | Hager Africa

      Handbook en-GB 2023-07-07

      PDF
      11,76 MB
      Image Handbook fr-FR 2023-09-11 | Hager Africa

      Handbook fr-FR 2023-09-11

      PDF
      11,49 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
