250A 4 Way 125A Outgoers Glazed JN204BG
EAN
5015652262985
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-

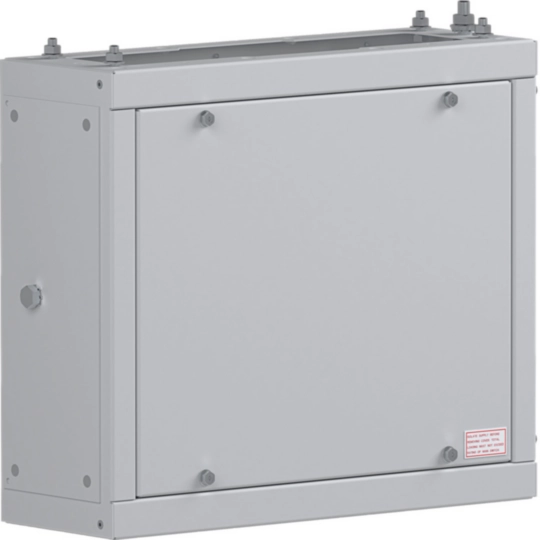

Cable entry cabinet 3 products available -

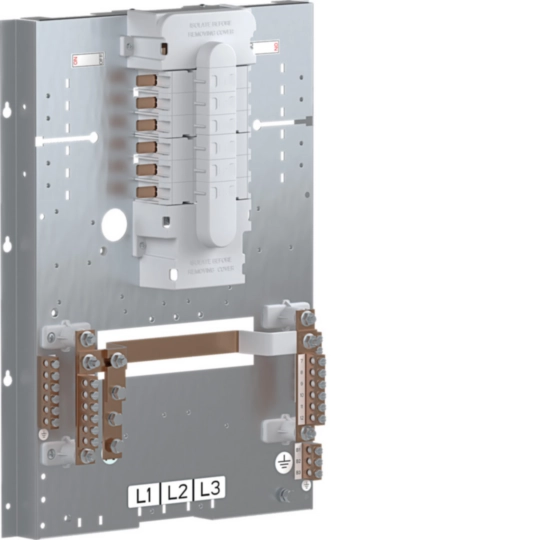

Distributor assembly with main switch 2 products available -
Distributor assembly for device surface mounting 1 products available -
Switch disconnector 1 products available -
Busbar system for distribution boards 1 products available -
See more 7 other products available
Complete your system
Technical properties
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Dimensions
-
Height950 mm
-
Width710 mm
-
Depth178.40 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentYes
Materials
-
MaterialSteel
-
RAL code7035, 9001
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, Quarter turn lock
Environmental value
