MCB 6ka 'C' Curve Single Pole

MCB 1P 6kA C-10A 1M MSN110

EAN

3250614323942

Packaging

12 PCEs

Technical properties
Documentations
Accessories
More products

Download the data sheet

Technical properties

Neutral position

without neutral
Number of poles

1 P
Type of pole

1 P
Curve

C

Concurrently switching N-neutral

No

Number of modules

1

Top connection alignement for modular devices

Aligned terminal
Bottom connection alignement for modular devices

Aligned terminal

Rated operational voltage Ue

240 / 415 V
Type of supply voltage

AC

Rated insulation voltage

500 V
Max operating voltage

415 V
Rated impulse withstand voltage

4000 V

Rated current

10 A
min/maxi threshold value of the AC thermal operation

1.13 / 1.45 In
Magnetic regulating currrent

5 / 10 In
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1

6 kA
Rated short circuit breaking capacity Icn under 240V AC according IEC 60898-1

6 kA

Rating current -25°C

13.4 A
Rating current -20°C

13.1 A
Rating current -15°C

12.8 A
Rating current -10°C

12.54 A
Rating current -5°C

12.21 A
Rating current 0°C

11.91 A
Rating current 5°C

11.61 A
Rating current 10°C

11.31 A
Rating current 15°C

11.01 A
Rating current 20°C

10.72 A
Rating current 25°C

10.42 A
Rating current 30°C

10 A
Rating current 35°C

9.82 A
Rating current 40°C

9.52 A
Rating current 45°C

9.22 A
Rating current 50°C

9 A
Rating current 55°C

8.63 A
Rating current 60°C

8.33 A
Rating current 65°C

8.03 A
Rating current 70°C

7.73 A

Correction factor of rating current for 2 devices placed side-by-side

1
Correction factor of rating current for 3 devices placed side-by-side

0.95
Correction factor of rating current for 4 and 5 devices placed side-by-side

0.9
Correction factor of rating current for 6 devices placed side-by-side

0.85

Depth of installed product

70 mm
Width of installed product

17.5 mm

Maximum power loss per pole according to the product standard

3 W
Power loss per pole at In

1.63 W

Electric endurance in number of cycles

4000
Number of mechanical operations

20000

Type of top connection for modular devices

with screw
Tightening torque

2,8Nm
Type of bottom rail clip for modular devices

plastic
Type of Bottom Connection for modular devices

BIconnect
Top removability for modular devices

No
Bottom removability for modular devices

Yes

Connection cross-section at output with screw, for flexible conductor

1 / 25 mm²
Connection cross-section at output with screw, for massive conductor

1 / 35 mm²
Connection cross-section for rigid conductor, upstream terminals with screws

1 / 35 mm²
Connection cross-section of the access with screws, with flexible conductor

1 / 25 mm²
Downstream cage clamp delivery status

opened
Upstream cage clamp delivery status

opened
Type of connection

with screw

Can be accessorized

Yes
With transparent product label holder

Yes

Standard text

IEC 60898-1 ; AS/NZS 60898-1

REACH conform

Yes
RoHS conform

Yes
Halogen free

No

Operating temperature

-25…70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Altitude

2000 m
Storage/transport temperature

-25…80 °C

Temperature of calibration

30 °C

Downloads

Product image

Product Image MSN110
User brochure

Onekonekt_Brochure

PDF

2 MB

Safe and Simple for All Applications

PDF

6 MB

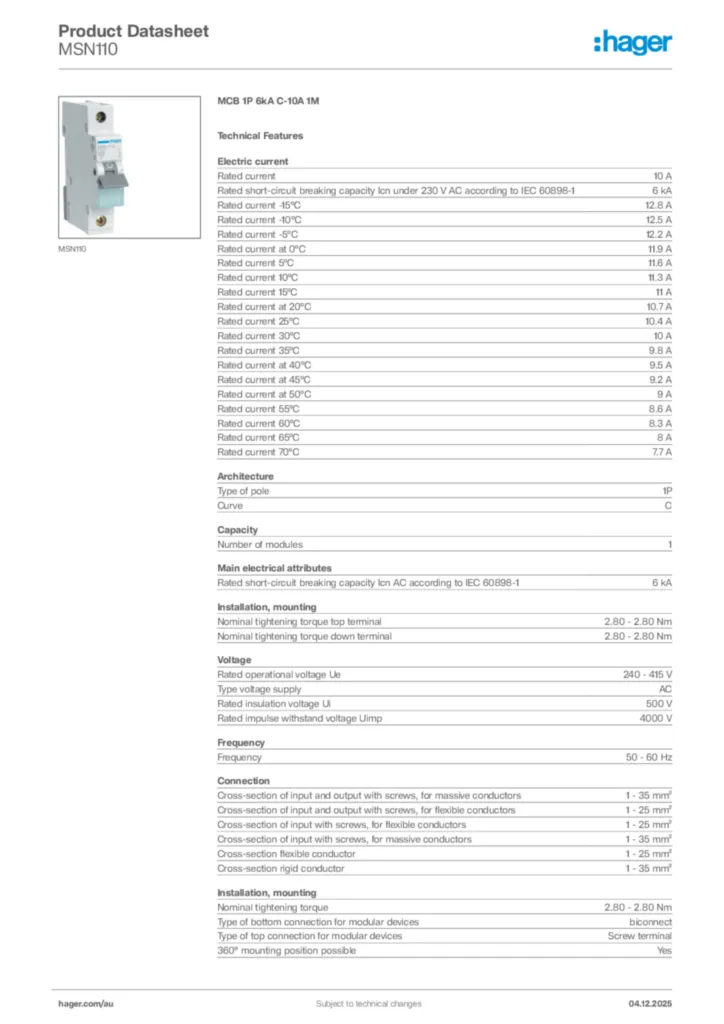

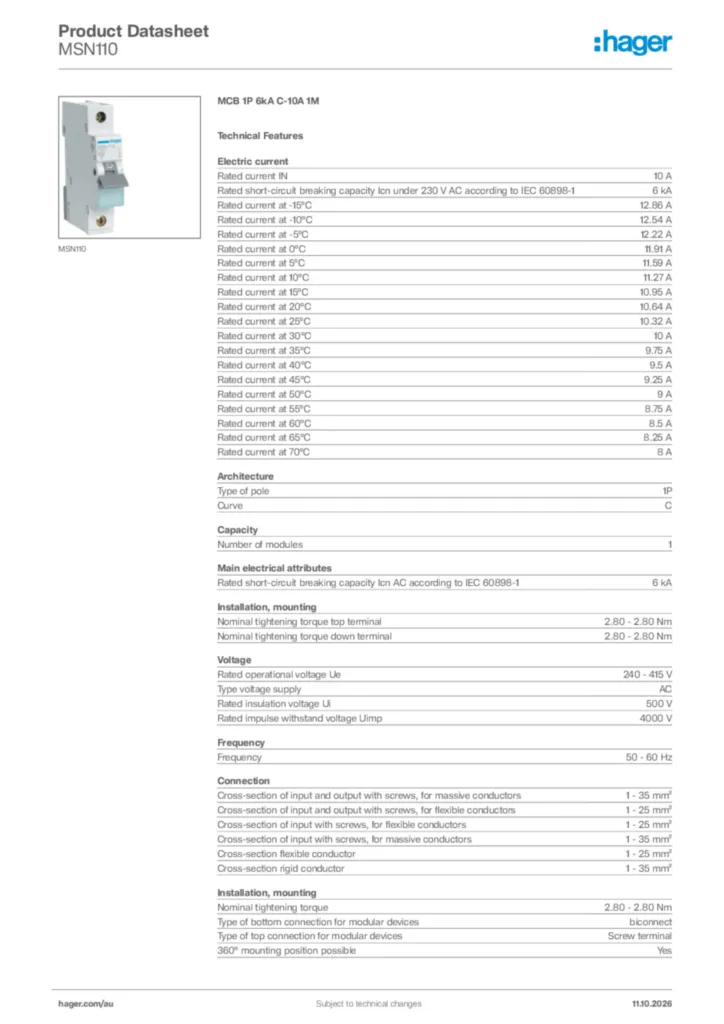

Product data sheet
