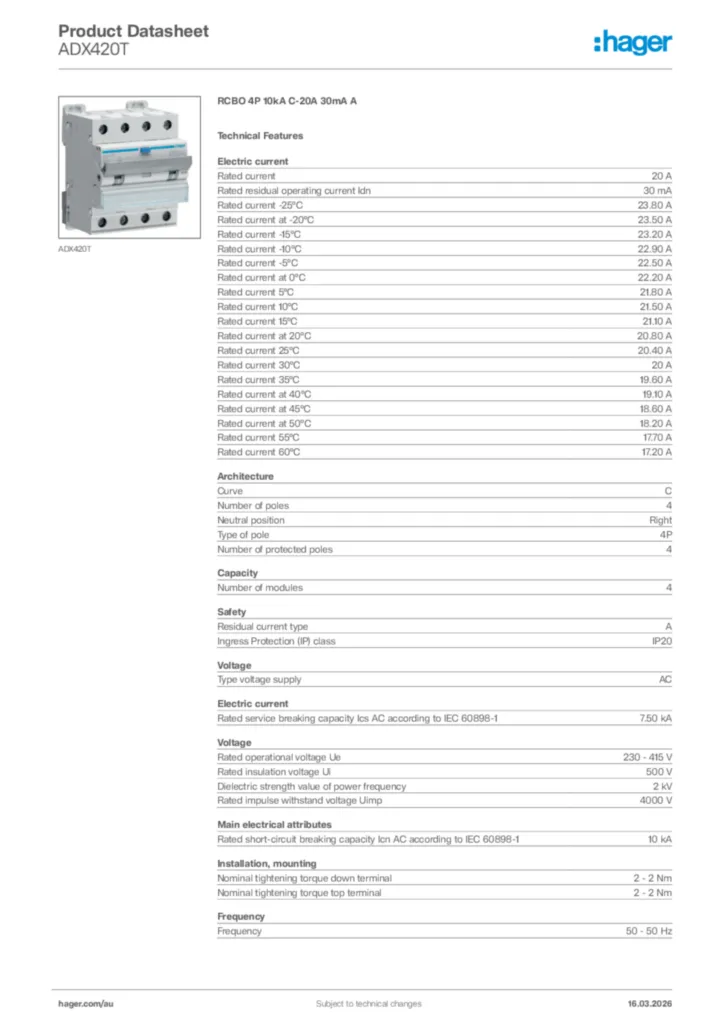

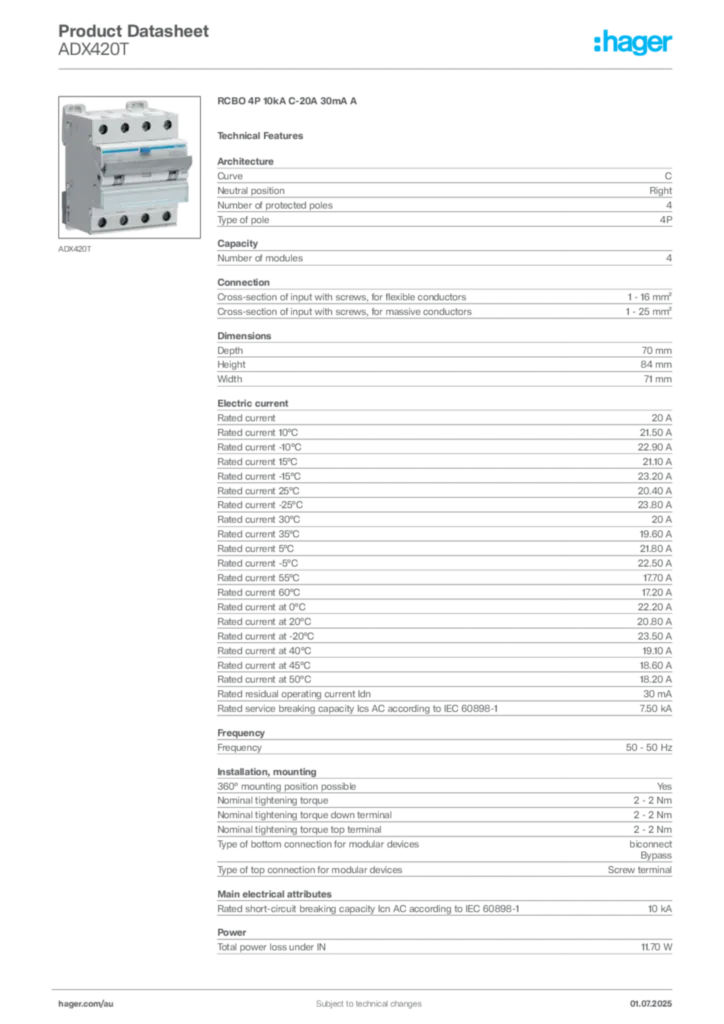

RCBO 4P 10kA C-20A 30mA A ADX420T
EAN
3250611033110
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Locking interlocking functions 1 products available -
Modular phase busbar 9 products available
Complete your system
-
KB163N
Insulated busbar 1P 63A prong 10mm² blue 13M
-
KB163PInsulated busbar 1P 63A prong 10mm² brown 13M
-
KB181A1Insulated prong busbar 1P 80A 16mm² 6C for RCBO
-
KB181G1
Insulated prong busbar 1P 80A 16mm² 9C for RCBO
-
KDN180AInsulated busbar 1P 80A fork 16mm² 12M
-
KDN180GInsulated busbar 1P 80A fork 16mm² 18M
-
KDN280AInsulated busbar 2P 80A fork 16mm² 12M
-
KDN380AInsulated busbar 3P 80A fork 16mm² 12M
-
KDN380GInsulated busbar 3P 80A fork 16mm² 18M
Technical properties
Electric current
-
Rated current20 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C23,80 A
-
Rated current at -20°C23,50 A
-
Rated current -15°C23,20 A
-
Rated current -10°C22,90 A
-
Rated current -5°C22,50 A
-
Rated current at 0°C22,20 A
-
Rated current 5°C21,80 A
-
Rated current 10°C21,50 A
-
Rated current 15°C21,10 A
-
Rated current at 20°C20,80 A
-
Rated current 25°C20,40 A
-
Rated current 30°C20 A
-
Rated current 35°C19,60 A
-
Rated current at 40°C19,10 A
-
Rated current at 45°C18,60 A
-
Rated current at 50°C18,20 A
-
Rated current 55°C17,70 A
-
Rated current 60°C17,20 A
-
Rated service breaking capacity Ics AC according to IEC 60898-17,50 kA
Architecture
-
CurveC
-
Neutral positionRight
-
Type of pole4P
-
Number of protected poles4
Capacity
-
Number of modules4
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Voltage
-
Type voltage supplyAC
-
Rated operational voltage Ue240 - 415 V
-
Rated insulation voltage Ui500 V
-
Dielectric strength value of power frequency2 kV
-
Rated impulse withstand voltage Uimp4000 V
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
-
Nominal tightening torque down terminal2 - 2 Nm
-
Nominal tightening torque top terminal2 - 2 Nm
Frequency
-
Frequency50 - 50 Hz
Connection
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
-
360° mounting position possibleYes
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect, Bypass
Use conditions
-
Class of energy limitation I²t3
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Operating temperature-25 - 40 °C
Dimensions
-
Height84 mm
-
Width71 mm
-
Depth70 mm
Power
-
Total power loss under IN11,70 W
